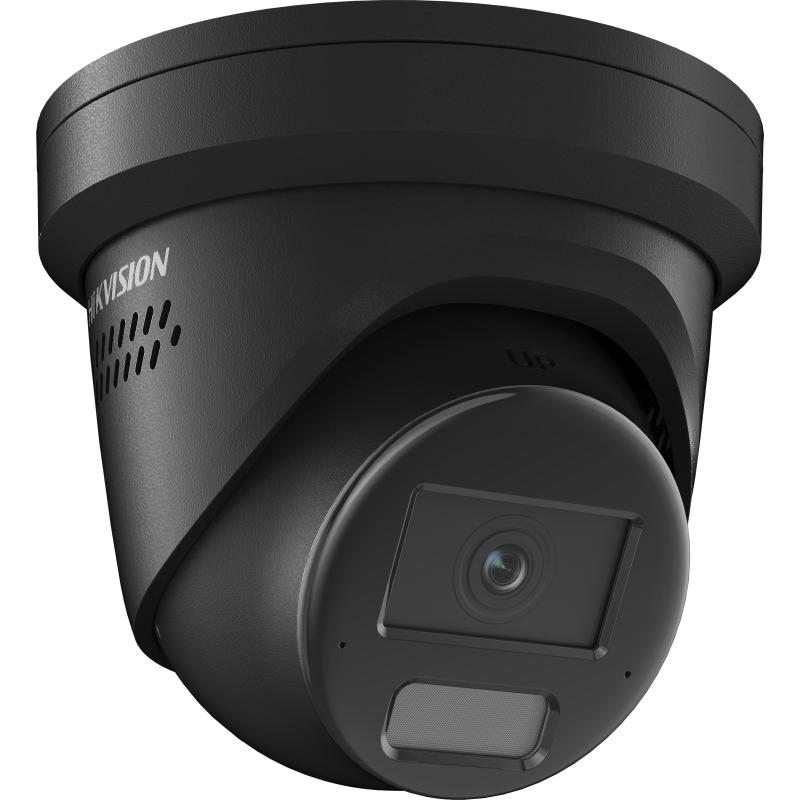

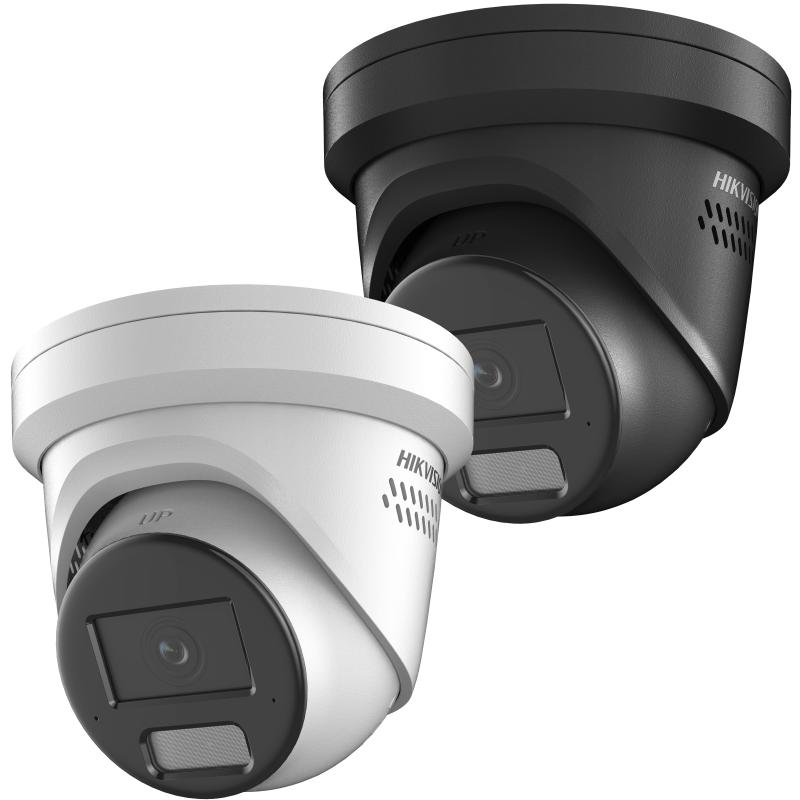

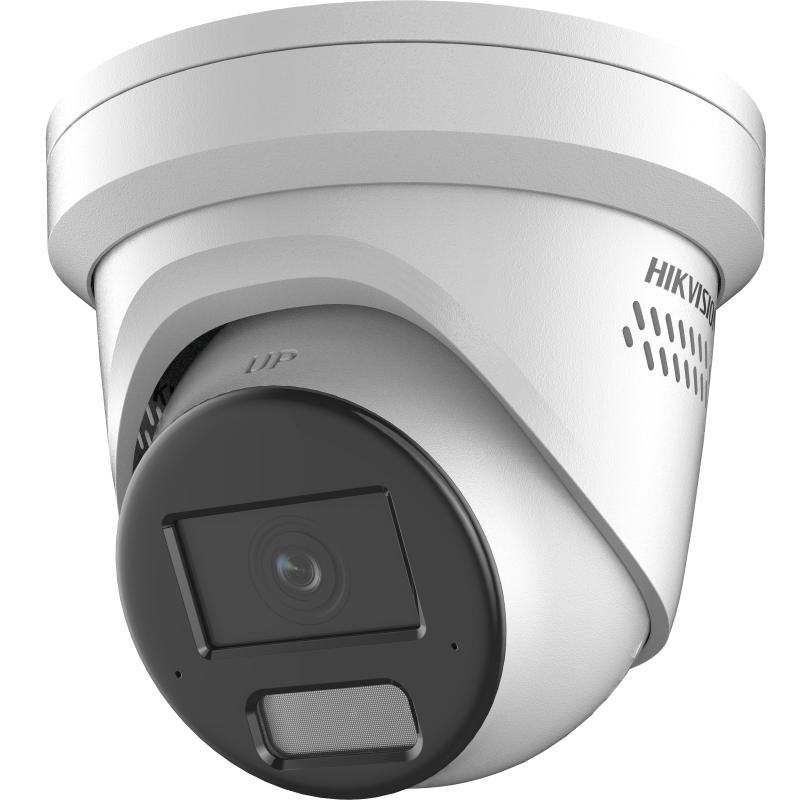

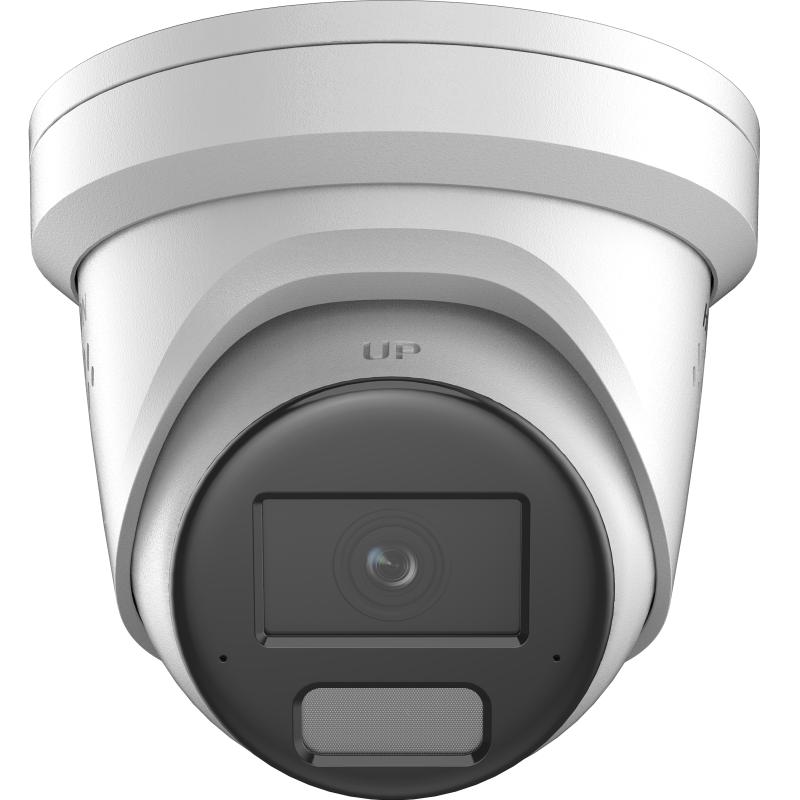

Hikvision DS-2CD2366G2H-IS2U/S(L)(RB)

Image Sensor

1/2.4″ Progressive Scan CMOS

Max. Resolution

3200 × 1800

Min. Illumination

Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 115°, vertical FOV 60°, diagonal FOV 144°;4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 112°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.0

Depth of Field

2.8 mm: 1.7 m to ∞;4 mm: 2.2 m to ∞

DORI

2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m;4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz:;25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz:;30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) ;60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) ;60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) ;*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264,;*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Type

Mono sound

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View

Up to 6 channels

API

ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11,;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR,Defog

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

120 dB

Privacy Mask

4 programmable polygon privacy masks

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

;Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

Yes, 2 built-in microphones

Built-in Speaker

Max. power consumption: 2 W, max. sound pressure level: 10 cm: 105 dB.

Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,;1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Reset Key

Yes

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light

Smart Event

;Scene change detection

Face Capture

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle)

Power

12 VDC ± 25%, 1.34 A, max. 16 W,Ø5.5 mm coaxial power plug,reverse polarity protection,;PoE: IEEE 802.3at, Class 4, max. 18 W

Material

;Cover: metal, main body: metal

Dimension

Ø138.3 mm × 115.4 mm (Ø5.4″ × 4.5″)

Package Dimension

170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)

Weight

Approx. 780 g (1.71 lb.)

With Package Weight

Approx. 1210 g (2.67 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Flashing Light

/SRB model: Red and Blue Light;/SL model: White Light

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7,;KC: KN32: 2015, KN35: 2015

Safety

UL: UL 62368-1,;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
