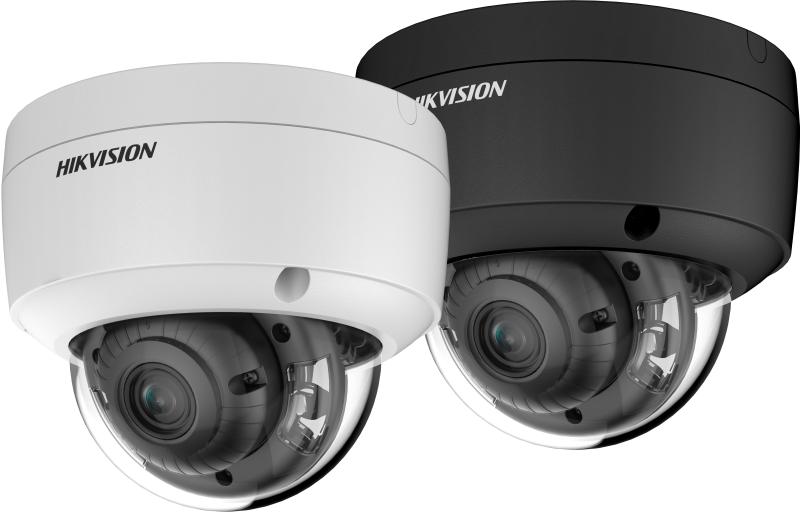

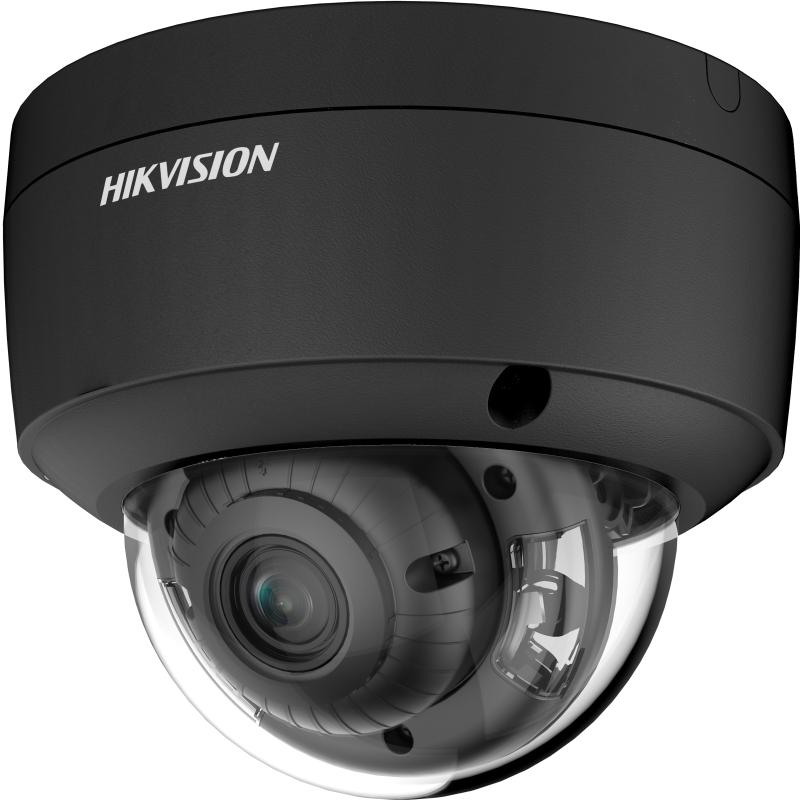

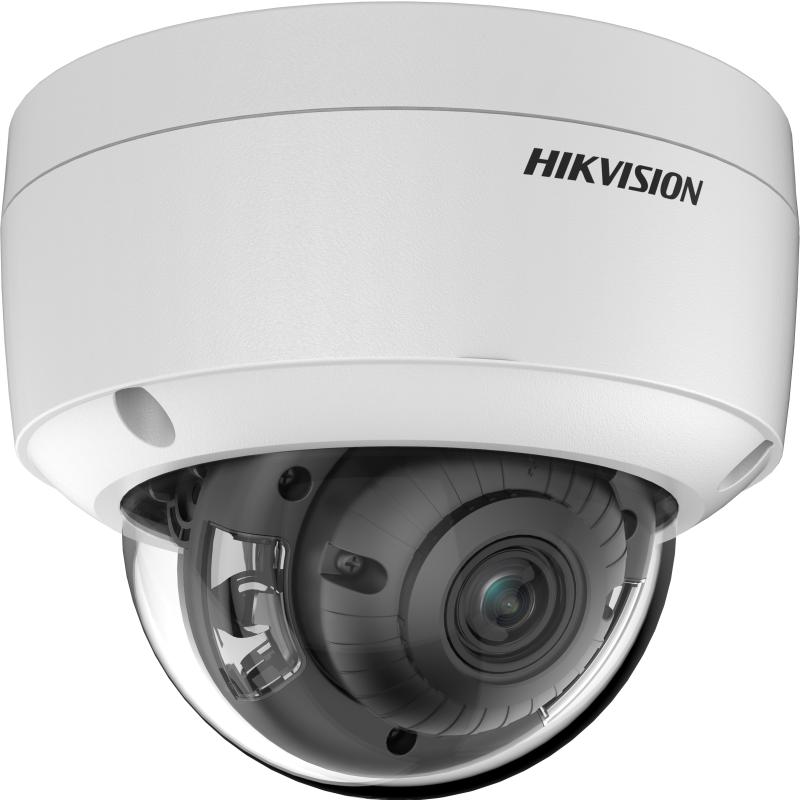

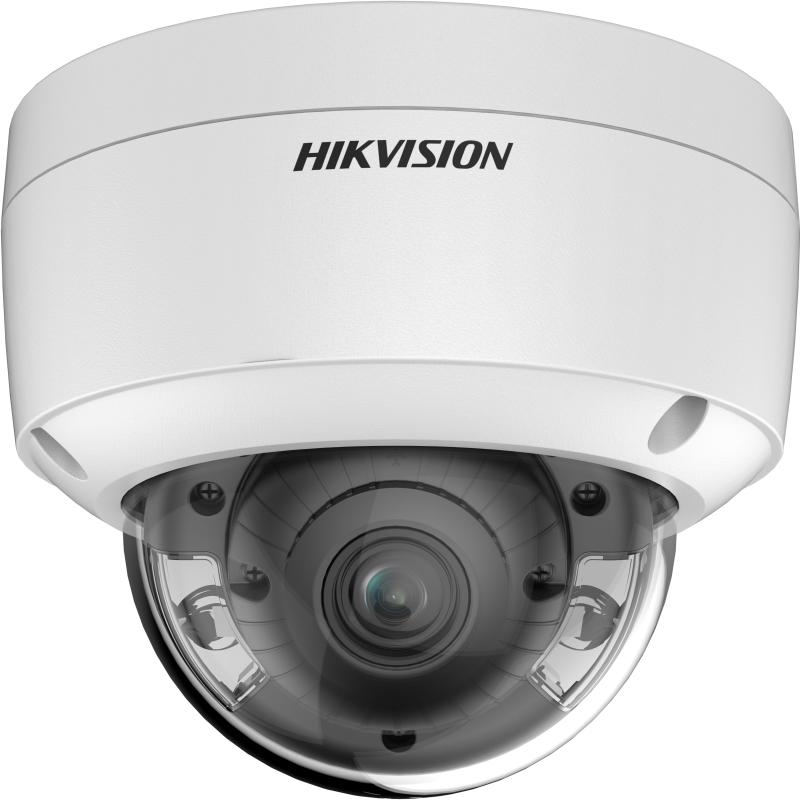

Hikvision DS-2CD2147G2-L(SU)

Artikul: 4dc478defc7b

4 MP ColorVu Sabit Dome Şəbəkə Kamerası

4 MP icazə ilə yüksək keyfiyyətli görüntüləmə
Səmərəli H.265+ sıxılma texnologiyası
130 dB WDR texnologiyası sayəsində güclü arxa işıqda belə aydın görüntü
24/7 rəngli görüntüləmə
Deep learning əsasında insan və nəqliyyat vasitələrinin hədəf təsnifatı
-SU: Real vaxt audio təhlükəsizliyi üçün daxili mikrofon, audio və siqnalizasiya interfeysi mövcuddur
Suya və toza davamlı (IP67), həmçinin vandalizmə davamlıdır (IK10)

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

ədəd stokda

2 saata çatdırılma

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
Lens MountM16
Iris TypeFixed
ApertureF1.0
Depth of Field
2.8 mm: 2.5 m to ∞
4 mm: 3.5 m to ∞

DORI
DORI
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Audio Type-SU: Mono sound
Audio Compression -SU: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate-SU: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering-SU: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP5.0
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)130 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB
Built-in Microphone-SU: Yes
Audio
-SU: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Alarm -SU: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset KeyYes

Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send emailtrigger alarm output (-SU), audible warning (-SU)

General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
DimensionØ121.4 mm × 100.1 mm (Ø4.8″ × 3.9″)
Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ ×5.6″)
WeightApprox. 600 g (1.3 lb.)
With Package WeightApprox. 820 g (1.6 lb.)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Approval
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
IK10 (IEC 62262: 2002)
