Qiymət sorğusu- System
- MCBF ＞ 30 million times
- MotorDrive-Direct servo motor
- Display
- Screen size6.95 inch
- Operation methodNon-touch
- TypeIPS
- Resolution600 * 1024
- Image
- Sensor2 MP
- Resolution1920 x 1080
- Interface
- Network interface1
- RS-4852
- Exit button2
- RS-2324
- Lock output2
- IO input2
- IO output2
- Capacity
- Face capacity100,000
- Card capacity500,000
- Event capacity1,000,000
- Authentication
- Face recognition distance2m
- Face recognition accuracy rate≥99%
- Face recognition duration0.2 s
- Function
- QR code recognitionYes
- General
- Throughput30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method - Power supply method100 to 240 VAC; 50 to 60 Hz
- IR light detectors24 pairs
- Lane width650 mm to 1100 mm (25.59″ to 43.31″)
- Working temperature-20 °C to 50 °C (4 °F to 122 °F)
- Barrier materialAcrylic glass (10 mm)
- Built-in access controllerYes
- Working humidity10% to 95% (No Condensing)
- DimensionsWith packaging: 1905 mm × 550 mm × 1330 mm (75.0″ × 21.7″ × 52.4″)
Without packaging: 1651 mm × 117 mm × 1020 mm (65.0″ × 4.6″ × 40.2″) - Pedestal materialSUS304 stainless steel with the thickness of 2 mm (0.08″)
- Application environmentIndoor
- (Net) Left: 104 kg (229.3 lbs); Middle: 133 kg (293.2 lbs); Right: 104 kg (229.3 lbs);
(Rough) Left: 162 kg (357.2 lbs); Middle: 191 kg (421.1 lbs); Right: 162 kg (357.2 lbs); - ApprovalCE/FCC/CB/RoHS/REACH/WEEE
- Power consumption175W ( stand by )
- Configuration
- Module selectionYES
- Authentication modeCard
- Card typeEM;M1;Desfire
- Wall distance20 mm
- Lane width650,750,900
- Recommended width650
- Pedestal width117 mm
- Pedestal length1651 mm
- Barrier materialAcrylic glass
- BaseYES
- Base modelDS-K3B961TX-BASE

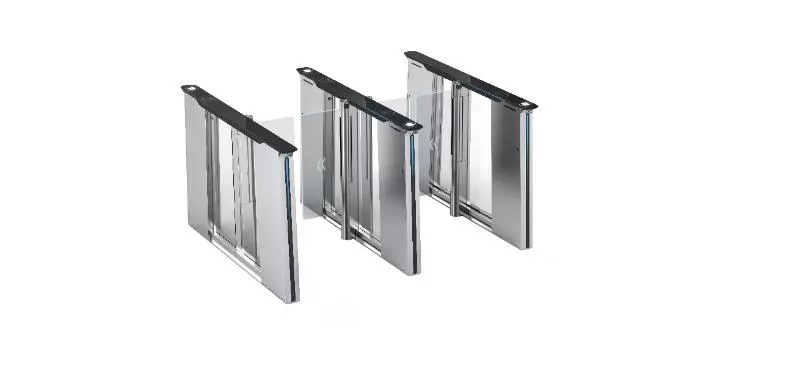

- Product typeSwing barrier
- Remote controller type433Mhz;868Mhz
- Built-in face recognitionYES
- Built-in displayYES
