- MotorServo motor
- MCBF≥ 12 million times
- Interface
- Exit button2
- General
- Throughput
30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- IR light detectors14 pairs
- Lane width550 mm to 1100 mm (21.65″ to 43.31″)
- Barrier materialAcrylic glass
- Pedestal materialSUS304 stainless steel 1.5mm(0.06”)
- Built-in access controllerNot support
- Power supply100 to 240 VAC; 50 to 60 Hz
- Power consumption75 W (stand by)
- Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity0% to 95% (No Condensing)
- Dimensions
With packaging: 1610 mm (63.39”) × 410 mm (16.14”) × 1255 mm (49.41”);
Without packaging: 1500 mm (59.06”) × 130 mm (5.12”) × 1000 mm (39.37”);
(Net) Left: 62.78 kg (138.41 lbs); Middle: 26.54 kg (58.51 lbs); Right:64.78 kg (142.8 lbs);
(Rough) Left: 101.18 kg (223.1 lbs); Middle: 45.54 kg (100.4 lbs); Right: 103.18 kg (227.5 lbs);
- Application environmentIndoor and outdoor
- Configuration
- Module selectionNO
- Lane width550,650,750,900,1100
- Pedestal length1500 mm
- Pedestal width130 mm
- Wall distance20mm
- BaseYES
- Barrier materialAcrylic glass
- Authentication modeCard;Face;QR code
- Card typeEM;M1;Desfire
- Recommended width650
- Base modelDS-K3B530X-BASE

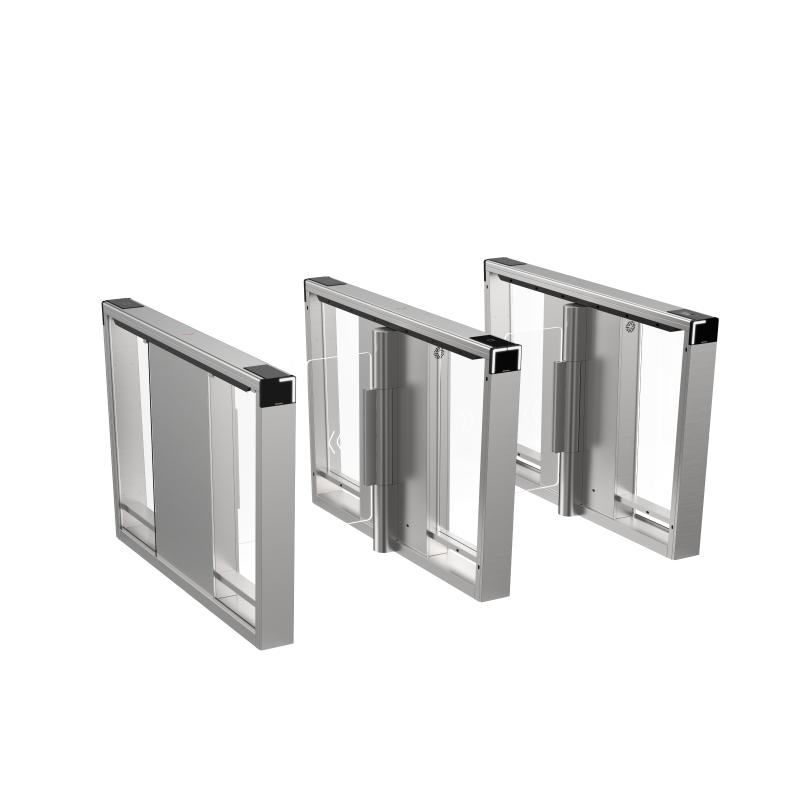

- Product typeSwing barrier
- Remote controller type433 Mhz;868 Mhz
