Qiymət sorğusu- System
- Motorbrushless motor
- MCBF≥ 5 million times
- Operating systemLinux
- dToF sensorx 4
- Network
- Wired network10/100 Mbps self-adaptive Ethernet
- Wi-FiSupported, only for AP mode
- Interface
- Network interface2
- Alarm output4
- RS-485
Main: 2
Sub: 2
- RS-232
Main: 1
Sub: 1
- Wiegand
Main: 1
Sub: 1
- USB
Main: 1
Sub: 1
- Fire alarm input1
- Case input
Main: 1
Sub: 1
- Hardware
- Access controllerSupplied
- SupercapacitorSupplied
- Network switchNot supplied
- Card receiverSupport
- Expansion screwM12*150mm(5.9”) 6pcs
- Capacity
- Face capacity100,000
- Card capacity200,000
- Event capacity100,000
- Authentication
- QR codeOptional
- Face recognition distance0.5 m to 2 m
- Face recognition accuracy rate＞99%
- Face recognition duration＜200 ms
- Card TypeEM/M1 card
- Card reading frequency13.56 MHz and 125 KHz
- Card reading distance0 to 3 cm
- Card reading duration＜1 sec
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- Hik-ConnectSupport
- Multi-factor authenticationSupport
- Face anti-spoofingSupport
- Face mask recognitionSupport
- Built-in face recognitionSupport
- Communication protocolISAPI
- KeyfobSupport, 433 MHz/868 MHz, within 50 m
- General
- Throughput
30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm (21.65″)
- Barrier material12 mm acrylic glass
- Pedestal materialSUS304 stainless steel
- IndicatorLane status indicator, authentication indicator andbarrier light
- Power consumption
Standby: 20 W
Working: 60 W
Peak: 90 W
- Working temperature -20 °C to 70 °C (-4 °F to 158 °F)
- Working humidity10% to 95% (No condensing)
- Protective levelIPX4
- Dimensions
Without package: 1200 mm × 1000 mm × 139.4 mm (47.24″ × 39.37″ × 5.48″)
With package: 1290 mm × 1140 mm × 390 mm (50.78 × 44.88″ × 15.35″)”
Net:
Left: 30.15 kg (66.5 lb)
Middle: 38.27 kg (84.4 lb)
Right: 29.58 kg(64.8 lb)
Gross:
Left: 49.15 kg (108.4 lb)
Middle: 56.27 kg (124.1 lb)
Right: 37.85 kg (107.1 lb)
- Power supply method100-240V～,50Hz/60Hz
- LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
- Interconnecting cable length6.5 m
- Configuration
- Lane width550
- Pedestal length1206 mm
- Module selectionYES
- Pedestal width303 mm
- Wall distance20 mm
- BaseYES
- Barrier materialAcrylic glass
- Application environmentIndoor and Outdoor
- Authentication modeQR code;Card
- Card typeM1;EM
- Recommended width550 mm
- Base modelDS-KSM01/Y220

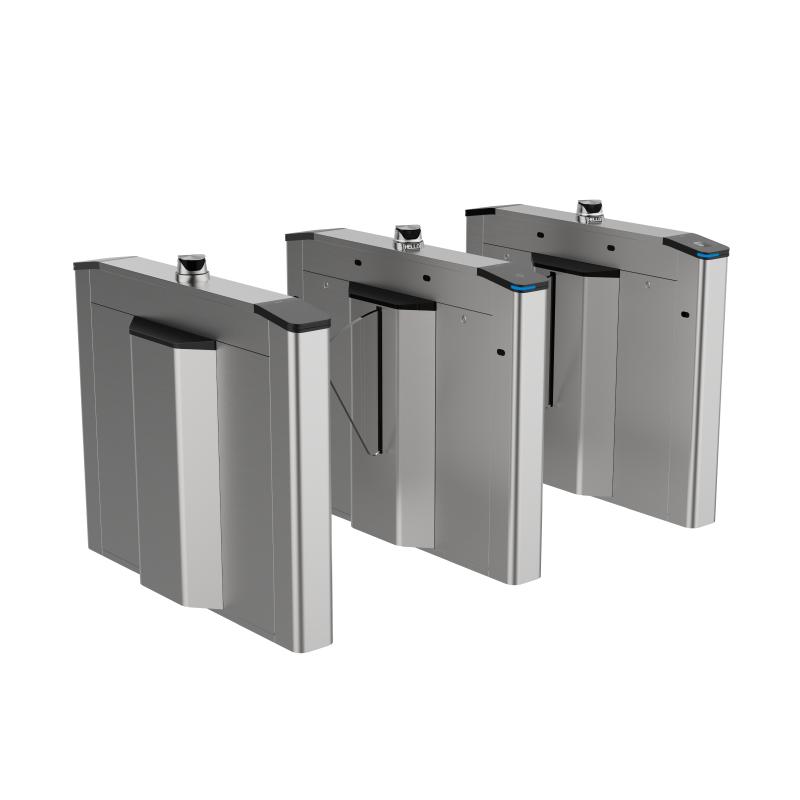

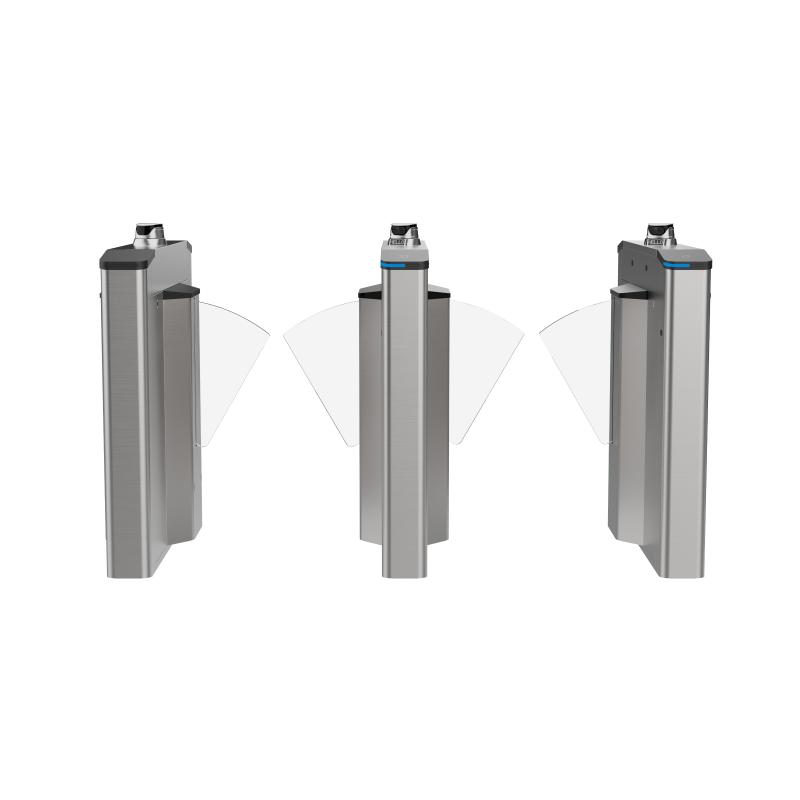

- Product typeFlap barrier
- Remote controller type433Mhz;868Mhz
- Built-in face recognitionYES
- Convert FaceNO
- Door wing gapDefault:50mm
