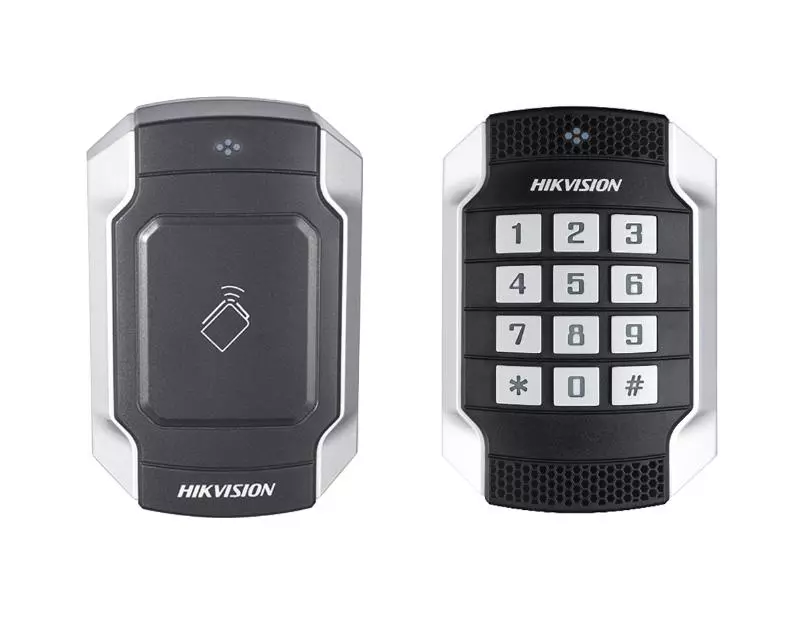

Hikvision DS-K1104

Hikvision DS-K1104 — Pro 1104 seriya Metal Vandal-proof Card oxuyucu.

Əsas xüsusiyyətlər

• M1 card reader
• PC+zinc-alloy material shell
• Built-in audible beeper
• RS-485 and Wiegand interface

Texniki parametrlər

• Card reading frequency: 13.56MHz
• Power supply: 12 VDC, ≤ 500 mA
• Power consumption: ≤ 2 W
• Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
• Working humidity: 10% to 90% (no condensing)
• Dimensions: 118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91″)
• Installation: Applied for 86 & 120 Gang Box
• : ≤ 0.52 kg (1.1 lb)
• Keypad: DS-K1104M: No keypad
  DS-K1104MK: Keypad with 12 keys (0 to 9, *, #)
• Buzzer: Support
• ID settings: via DIP Switch
