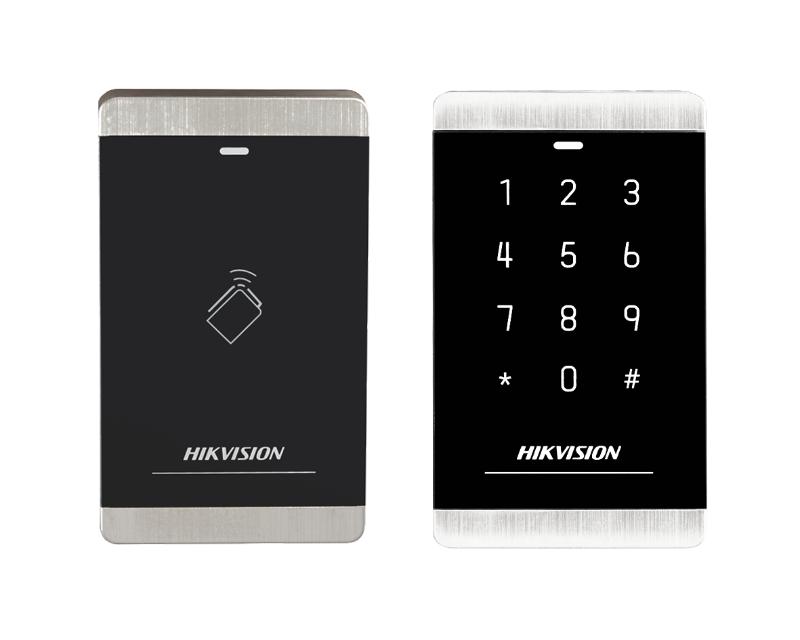

Hikvision DS-K1103

Hikvision DS-K1103 — Pro 1103 seriya Card oxuyucu.

Əsas xüsusiyyətlər

• M1 card reader
• PC+ABS material shell with PMMA panel design
• Built-in audible beeper
• RS-485 and Wiegand interface

Texniki parametrlər

• Card reading frequency: 13.56MHz
• Power supply: 12 VDC, ≤ 500 mA
• Power consumption: ≤ 2 W
• Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
• Working humidity: 10% to 90% (no condensing)
• Dimensions: 129 mm × 76 mm × 14.7 mm (5.08″ × 2.99″ × 0.58″)
• Installation: Applied for 120 Gang Box Only
• : ≤ 0.15 kg (0.3 lb)
• Keypad: DS-K1103M: No keypad
  DS-K1103MK: Keypad with 12 Keys (0 to 9, *, #)
• Buzzer: Support
• ID settings: via DIP Switch
