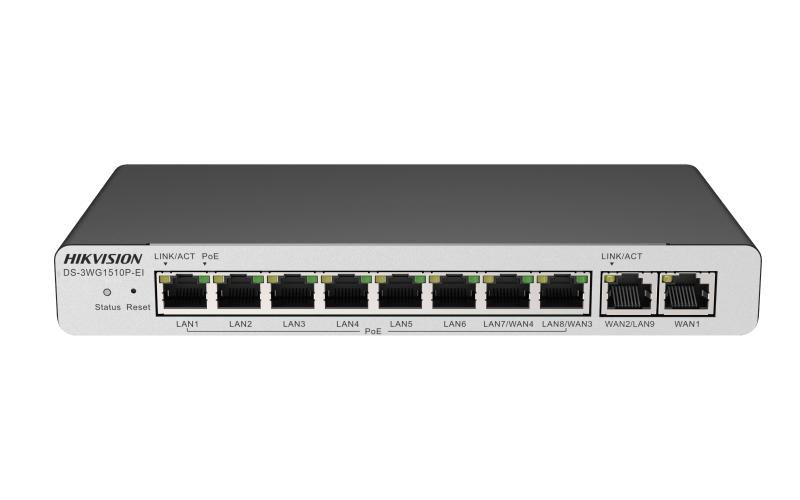

Универсальный 10-портовый PoE-маршрутизатор
Универсальный 10-портовый PoE-маршрутизатор
По запросу
Запрос цены- General
- ShellMetal
- Net Weight0.60 kg (1.32 lb)
- Gross Weight1.18 kg (2.60 lb)
- Working Temperature0°C to 40°C (32°F to 104°F)
- Working Humidity10% to 90% (no condensation)
- Storage Temperature-40°C to 70°C (-40°F to 158°F)
- Storage Humidity5% to 95% (no condensation)
- Product Dimensions (W × H × D)206 mm × 28 mm × 110 mm (8.11» × 1.1» × 4.33»)
- Packing ListSmart Managed Router × 1, Power Adapter × 1, Power Cord × 1, Ground Wire × 1, Foot Pad × 4, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
- Power Supply MethodDC 54 V, 1.6 A
- Power Consumption86 W
- Hardware Specifications
- Ports8 × Gigabit PoE port, 2 × Gigabit RJ45 port
- Number of Fixed WAN Ports1
- Number of Fixed LAN Ports6
- Number of LAN/WAN Switchable Ports3
- PoE Ports8
- PoE Max. Output Power80 W
- PoE StandardIEEE 802.3af, IEEE 802.3at
- Max. PoE Power per Port30 W
- Software Specifications
- Recommended Client Capacity (Gateway Mode)100
- Recommended Uplink Bandwidth (Gateway Mode)1000 Mbps
- Networking MethodGateway mode, AC mode
- Managed AP CapacityGateway mode: 8；
AC mode: 32； - Internet Access ModeDHCP, PPPoE, Static
- VLAN ID Range1~4000
- Max. Number of DHCP Address Assignments1000
- Max Static DNS Entries128
- Max Custom DNS Servers128
- Max Static Routes128
- Max Policy-Based Routes32
- Max. Number of Authenticated Clients Displayed400
- IPsec VPN Client Bandwidth (Up/Down) 90 Mbps
- L2TP VPN Client Bandwidth (Up/Down)160 Mbps
- PPTP VPN Client Bandwidth (Up/Down)260 Mbps
- OpenVPN Client Bandwidth (Up/Down)20 Mbps
- Max Port Forwarding Rules256
- NAT Session Table Size20000
- Software Features
- Wireless ManagementSupport wireless configuration；
Support RF configuration；
Support health mode；
Support Guest SSID；
Support wireless roaming；
Support wireless optimization；
Support wireless SSID speed limiting；
Support wireless RF speed limiting；
Support wireless smart speed limiting；
Support wireless client speed limiting；
Support weak-signal access control；
Support weak-signal kicking offline；
Support roaming sensitivity adjustment；
Support wireless access control；
Support wireless client association；
Support AP load balancing； - WANSupport DHCP/static/PPPoE internet access methods;
Support WAN VLAN configuration;
Support WAN NAT configuration;
Support WAN MTU configuration;
Support multi-WAN;
Support both load balancing and active/standby load modes;
Support connection-based load balancing policy;
Support source IP-based load balancing policy;
Support policy routing for specific line forwarding； - LANSupport port-based VLAN assignment;
Support MAC address learning;
Support DHCP address allocation;
Support DHCP address binding;
Support VLAN isolation； - ACLSupport IPv4-based access control;
Support IPv6-based access control;
Support MAC-based access control； - SecuritySupport ARP protection;
Support MAC filtering;
Support connection limit;
Support port mapping;
Support attack prevention;
Support security zone； - Behavior ManagementSupport IP and time-based application control;
Support website filtering;
Support egress flow control;
Support VPN flow control policy;
Support PPPoE flow control policy;
Support custom flow control policy;
Support parental control； - Portal AuthenticationSupport account authentication;
Support one-click authentication;
Support certificate authentication;
Support Facebook authentication; - Local AuthenticationSupport account authentication;
Support authorization authentication;
Support QR code authentication； - Third-party Server AuthenticationSupport CMCC2.0 Portal;
Support RADIUS service; - RoutingSupport IPv4/IPv6 static routing;
Support IPv4/IPv6 policy routing； - IP ServicesSupport Oray Dynamic DNS;
Support No-IP Dynamic DNS;
Support 3322.org Dynamic DNS;
Support Cloudflare Dynamic DNS;
Support Alibaba Cloud Dynamic DNS;
Support ComExe Dynamic DNS;
Support Dyn Dynamic DNS;
Support UPnP;
Support PPPoE server;
Support DNS policy； - VPNSupport IPsec VPN client；
Support IPsec VPN server；
Support L2TP VPN client；
Support L2TP VPN server；
Support PPTP VPN client；
Support PPTP VPN server；
Support OpenVPN client；
Support OpenVPN server； - Service and SupportSupport NAT traversal service；
Support audit logs；
Support fault diagnosis；
Support fault alarms；
Support one-click fault collection；
Support whole network IP conflict detection；
Support network diagnostic tools；
Support SSH；
Support cloud service diagnosis；
Support port mirroring；
Support local upgrade；
Support online upgrade；
Support cloud services；
Support APP management；
Support port static aggregation；
Support CAPWAP DTLS encryption；
- Approval
- EMCCE-EMC (EN 55032:2015+A11: 2020+A1: 2020 EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024 EN 61000-3-3: 2013+A1: 2019+A2: 2021 EN 55035: 2017+A11: 2020)
- SafetyCB (IEC 62368-1: 2018), CE-LVD (EN IEC 62368-1: 2020+ A11: 2020)
- ChemistryCE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
