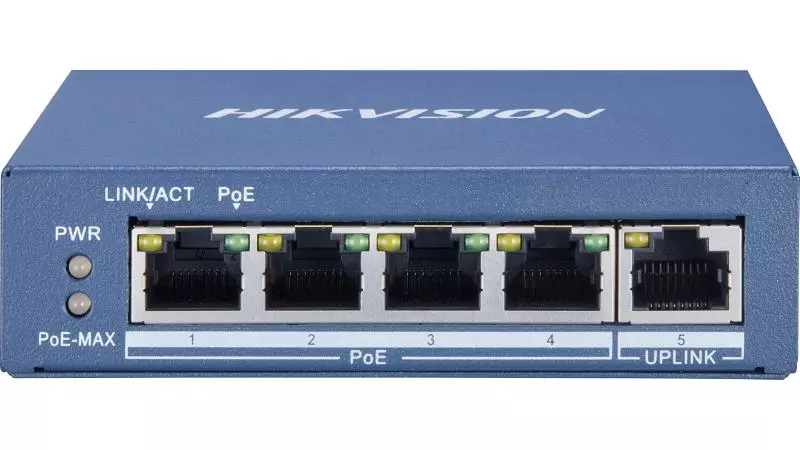

Hikvision DS-3E0505P-E/M

Shell

Metal material

Net Weight

0.265 kg (0.58 lb)

Gross Weight

0.759 kg (1.67 lb)

Dimensions (W × H × D)

105 mm × 27.6 mm × 83.1 mm (4.1» × 1.1» × 3.3»)

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature

–40 °C to 85 °C (–40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

48 VDC, 0.8 A

Max. Power Consumption

38 W

Power Consumption in Idle

3 W

Installation Mode

Desk-Mounted,Wall-Mounted

Surge Protection

6 KV

Ports

4 × Gigabit PoE port,1 × Gigabit RJ45 port

MAC Address Table

2 K

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.44 Mpps

Internal Cache

1 Mbits

PoE Standard

IEEE 802.3af;IEEE 802.3at

PoE Power Pin

End-span: 1/2(+), 3/6(-)

PoE Port

PoE: Ports 1 to 4

Max. Port Power

30 W

PoE Power Budget

35 W

EMC

FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

Safety

UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (201165EU); ;WEEE (201219EU); ;Reach (Regulation (EC) No.19072006)
