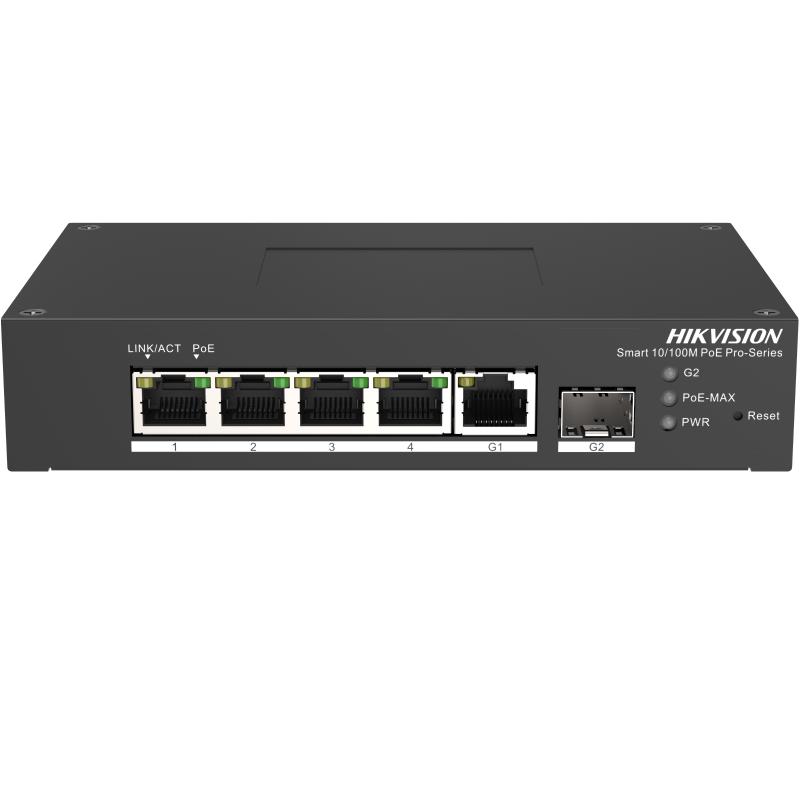

Hikvision DS-3T1306P-SI/HS

Shell

Metal material

Net Weight

0.4 kg (0.8 lb)

Gross Weight

1.0 kg (2.2 lb)

Dimensions (W × H × D)

158.00 mm × 101.20 mm × 31.60 mm (6.20» × 3.90» × 1.20»)

Operating Temperature

-30 °C to 65 °C (-22 °F to 149 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

48VDC, 1.36A

Installation Mode

Desk-Mounted,Rail

Max. Power Consumption

65 W

Power Consumption in Idle

5 W

Surge Protection

6 kV

Ports

4 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

MAC Address Table

2 K

Switching Capacity

Whole-Device Performance: 14 Gbps;Port Performance: 4.8 Gbps

Packet Forwarding Rate

Whole-Device Performance: 10.42 Mpps;Port Performance: 3.57 Mpps

Internal Cache

1 Mbits

PoE Standard

IEEE 802.3af,IEEE 802.3at

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

PoE: Ports 1 to 4

Max. Port Power

30 W

PoE Power Budget

60 W

Long Range

Ports 1to 4: up to 300 m.;Long range performance may vary depend on camera model or cable condition.

Port Isolation

Ports 1to 4: port isolation mode to improve network security;Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog

Ports 1to 4: auto detect and restart the cameras that do not respond.

QoS

QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.;Support port-based priority configuration.;Support SP, WRR priority schedule mode.

VLAN

VLAN is used for network scale planning and network health improvement.;Support 802.1Q.;Configurable VLAN ID from 1-4094.;Support Trunk, Access port mode.;Support Max. 4094 VLAN.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:;1. Display the port rate.;2. Display the port bandwidth utilization rate.;3. Display the PoE power usage.;4. Display topology information.;5. Display the alarm status.;6. Restart ports and devices.;7. Enable port long-rage mode.;8. Remotely upgrade the device.

Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.;Support 802.1D STP.;Suppport 802.1w RSTP.

System Maintenance

Support device management via web.;Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.;Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.;Support management via Hik-Central Pro.;Support remote management via Hik-Partner Pro.;Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.;Supports 802.1ab LLDP for peer device discovery.;Support port mirroring for fault locating.

Port Rate-Limiting

Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.

Storm Control

Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.;Support port rate limiting based on broadcast, multicast, and unknown unicast packets.

DHCP Snooping

DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (201165EU); ;WEEE (201219EU); ;Reach (Regulation (EC) No.19072006)
