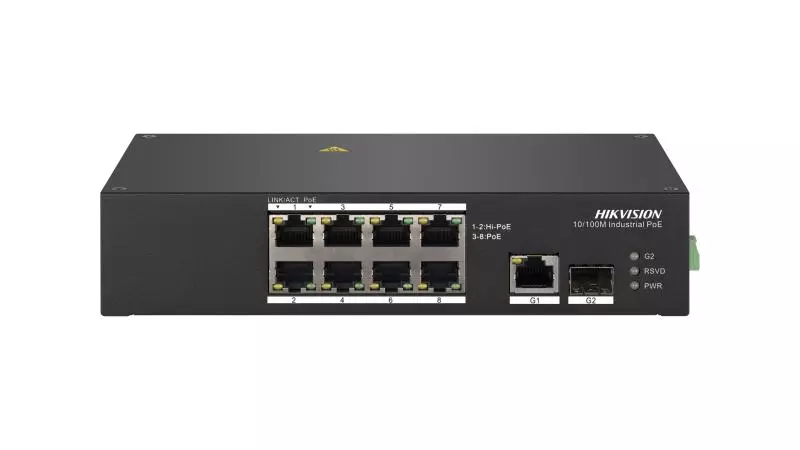

Hikvision DS-3T0310HP

Shell

Metal material, fan-free design

Net Weight

0.565 kg (1.25 lb)

Gross Weight

1.24 kg (2.73 lb)

Dimensions (W × H × D)

197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)

Operating Temperature

-40 °C to 75 °C (-40 °F to 167 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

48-57VDC, 2.5A

Max. Power Consumption

120 W

Power Consumption in Idle

10 W

Installation Mode

Desk-Mounted,Rail

Surge Protection

6 KV

Ports

8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

MAC Address Table

4 K

Switching Capacity

5.6 Gbps

Internal Cache

1.5 Mbits

Packet Forwarding Rate

4.17 Mpps

PoE Standard

IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt

PoE Power Pin

Ports 3-6： End-span: 1/2(-), 3/6(+)； Ports 1-2，Ports 7-8： 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

Hi-PoE: Ports 1 to 2,PoE: Ports 3 to 8

Max. Port Power

30 W

PoE Power Budget

110 W

Long Range

Ports 7to 8: up to 300 m.;Long range performance may vary depend on camera model or cable condition.

Port Isolation

Ports 1to 8: port isolation mode to improve network security.;Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog

Ports 1  to 8: auto detect and restart the cameras that do not respond.

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
