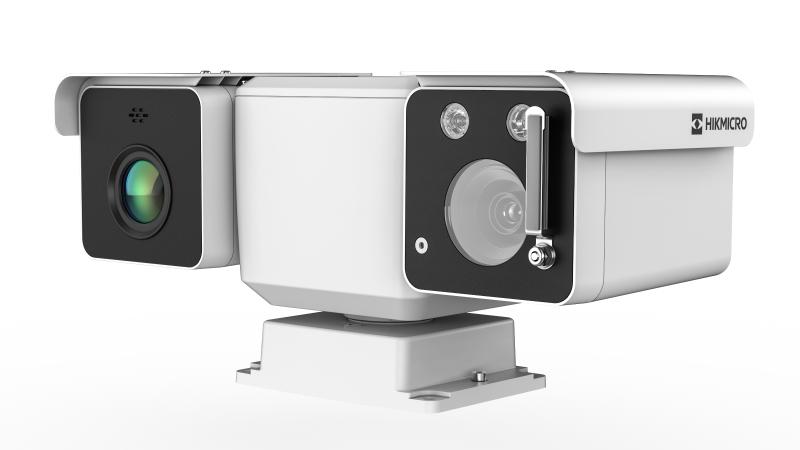

Hikvision HM-TD5567T-7/W

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

640 × 512

Pixel Pitch

17 μm

Spectral Range

8 μm to 14 μm

NETD

≤ 35 mK (25°C, F# = 1.0)

Focal Length

6.3 mm

IFOV

2.7 mrad

Aperture

F1.0

Field of View

88.5°(H)*73.2°(V)

Min. Focusing Distance

0.6 m

Digital Zoom

×2, ×4, ×8

Image Sensor

1/2.8″ Progressive Scan CMOS

Resolution

2688 × 1520, 4MP

Min. Illumination

Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)

Field of View

58.4° × 33.8° (H × V) to 2.14° × 1.2° (H × V)

Focal Length

4.8 to 153 mm, 32x

Aperture (Range)

F1.2 to F4.4

Focus Mode

Semi-auto, manual

Digital Zoom

×2, ×4, ×8, ×16

Shutter Speed

1 s to 1/100,000 s

WDR

120 dB

Optical Defog

Yes

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

Target Coloration

Yes. Supported in white hot and black hot mode.

Movement Range

Pan: 360° Continuous Rotate; Tilt: From -90° to + 90° (auto flip)

Pan Speed

Configurable, From 0.5°/s to 90°/s

Tilt Speed

Configurable, From 0.5°/s to 40°/s

Proportional Zoom

Yes

Presets

300

Patrol Scan

8 patrols; Up to 32 presets per patrol

Power Off Memory

Yes

Park

Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PT Status

Turn On/Turn Off

Scheduled Task

Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

IR Distance

Up to 30 m

IR Intensity and Angle

Automatically adjusted

VCA

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.

Temperature Measurement

3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)

Temperature Range

-20°C to 550°C (-4°F to 1022°F)

Temperature Accuracy

Max (± 2°C, ±2%)

Fire Detection

Dynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable.

Main Stream

Optical channel;50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720);Thermal channel;50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)

Sub-stream

Optical channel;50 Hz: 25fps (704 × 576, 352 × 288);60 Hz: 30 fps (704 × 576, 352 × 288);Thermal channel;50 fps (704 × 576, 640 × 512, 384 × 288)

Video Compression

Main stream: H.265+/H.265/H.264+/ H.264;Sub-stream: H.265/H.264/MJPEG

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Network Storage

MicroSD/SDHC/SDXC card (up to 128 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

API

ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users. 3 levels: administrator, operator, user

Security

User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Client

iVMS-4200, Hik-Connect

Web Browser

Live view (plug-in allowed) : Internet Explorer 11;Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +;Local service : Chrome 57.0 +, Firefox 52.0 +

Alarm Input

2-ch inputs (0 to 5 VDC)

Alarm Output

2-ch relay outputs, alarm response actions configurable

Alarm Action

Preset/patrol scan/SD card record/relay output/smart capture/FTP upload/email linkage

Audio Input

1

Audio Output

1

Communication Interface

1, RJ45 10M/100M self-adaptive Ethernet interface. ;1, RS-485 interface

Menu Language

32 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power Supply

24 VDC

Power Consumption

20 W

Working Temperature/Humidity

-40°C to 70°C (-40°F to 158°F) ;90% or less

Wiper

Yes

Protection Level

IP67 Standard ;TVS 6000V lightning protection, surge protection, voltage transient protection

Dimensions

321 mm × 194 mm × 153 mm(12.64″ × 7.64″ × 6.02″)

Weight

Approx. 4.8 kg (10.582 lb)

Detection Range for Humans (1.8×0.5m)

185m

Detection Range for Vehicles (4.0×1.4m)

568 m

Recognition Range for Humans (1.8×0.5m)

46 m

Recognition Range for Vehicles (4.0×1.4m)

142 m

Identification Range for Humans (1.8×0.5m)

23 m

Identification Range for Vehicles (4.0×1.4m)

71 m

VCA Range for Humans

49 m

VCA Range for Vehicles

147 m

Temperature Measurement Range for Object (2m×2m)

148 m

Temperature Measurement Range for Object (1m×1m)

74 m

Fire Detection Range for Object (2m×2m)

371 m

Fire Detection Range for Object (1m×1m)

185 m
