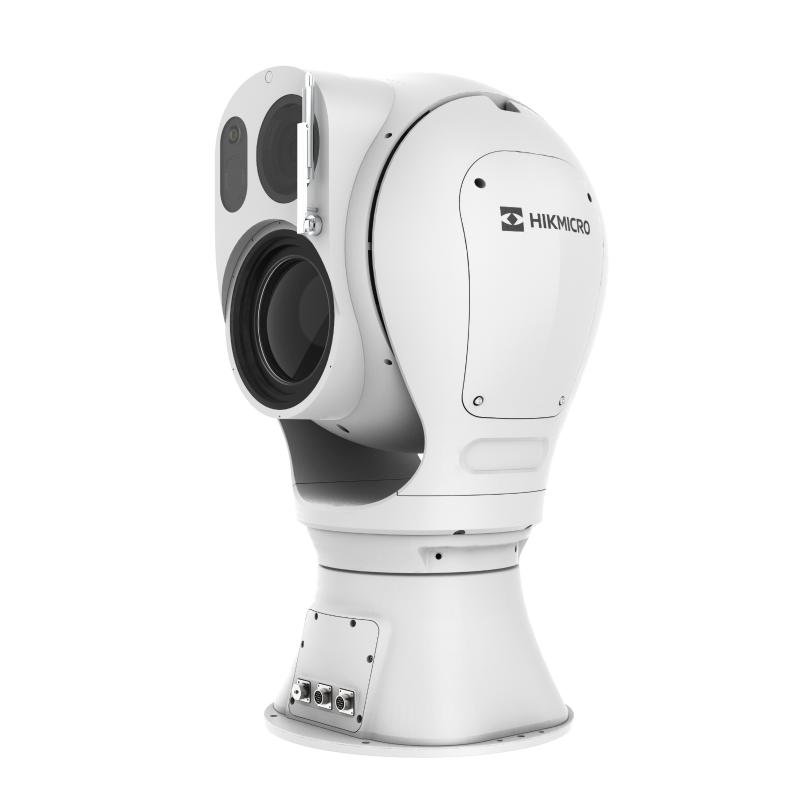

Hikvision HM-TD95C8-150ZE4FL/W

Image Sensor

VOx Uncooled Focal Plane Arrays

Resolution

1280 × 1024

Pixel Pitch

12 μm

Spectral Range

8 μm to 14 μm

NETD

Less than 35 mK (@ 25 °C,F# = 1.0)

Focal Length

30 to 150 mm

Focus Mode

Semi-auto & Manual

IFOV

0.40 to 0.08 mrad

Aperture

F0.85 to F1.2

Field of View

28.7° × 23.2° (H × V) to 5.9° × 4.7° (H × V)

Min. Focusing Distance

3 m

Digital Zoom

×2, ×4, ×8

Image Sensor

1/1.8″ Progressive Scan CMOS

Resolution

2688 × 1520, 4 MP

Min. Illumination

Color: 0.005 Lux @ (F3.5, AGC ON), B/W: 0.0005 Lux @ (F3.5, AGC ON)

Field of View

31.2° × 17.8° (H × V) to 0.5° × 0.3° (H × V)

Focal Length

10 to 800 mm, 80x

Aperture (Range)

F3.0 to F11.5

Focus Mode

Semi-auto & Manual

Digital Zoom

×2, ×4, ×8, ×16

Shutter Speed

1 s to 1/30,000 s

WDR

120 dB

Optical Defog

Yes

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

Target Coloration

Supported in white hot and black hot mode

Image Stabilization

Thermal channel: Built-in gyroscope to improve EIS performance(conflicted with intelligent function)； Optical channel：Optical Image Stabilization (OIS)

Movement Range

Pan: 360° Continuous Rotate; Tilt: From -45° to + 45° (auto flip)

Pan Speed

Configurable, From 0.01°/s to 120°/s, Preset Speed: 120°/s

Tilt Speed

Configurable, From 0.01°/s to 80°/s, Preset Speed: 80°/s

Proportional Zoom

Yes

Presets

300 in total, 273 are configurable.

Patrol Scan

8; Up to 256 Presets Per Patrol

Pattern Scan

4; More Than 10 Minutes Per Pattern

Power Off Memory

Yes

Park

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PT Status

Turn On/Turn Off

Scheduled Task

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

IR Distance

Laser 3,000 m

IR Intensity and Angle

Automatically adjusted

Basic Event

motion detection;video tampering alarm;alarm input and output;audio exception detection;scene change detection

VCA

Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene

Fire Detection

Dynamic fire point detection, up to 10 fire points detectable.

Smoke Detection

Up to 12km detection ability with 5m*5m smoke

Main Stream

Optical channel;50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720);Thermal channel;25 fps (1920 × 1080, 1280 × 1024, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288)

Sub-stream

Optical channel;50 Hz: 25 fps (704 × 576, 352 × 288);60 Hz: 30 fps (704 × 576, 352 × 288);Thermal channel;25 fps (704 × 576, 640 × 512, 384 × 288)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG;

Audio Compression

G .711u/G.711a/G.722.1/MP2L2/G.726/PCM/AAC

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Network Storage

MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

API

ISAPI, HIKVISION SDK, Open Network Video Interface (Profile S, Profile G, Profile T)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security

User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Live view (plug-in allowed) : Internet Explorer 11;Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +;Local service : Chrome 57.0+, Firefox 52.0 +

Alarm Input

2-ch inputs (0 to 5 VDC)

Alarm Output

2-ch relay outputs, alarm response actions configurable

Alarm Action

Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage

Audio Input

1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Audio Output

Linear Level; Impedance: 600 Ω

Communication Interface

1, RJ45 10 M/100 M/1000 M Self-adaptive Ethernet interface.;1, RS-485 interface

Analog Output

1.0 V [p-p]/75 Ω, BNC for thermal channel

Menu Language

32 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power Supply

48 VDC ± 20%, 4-pin Aviation Connector

Power Consumption

180 W; Max. 460 W with deicing heating

Working Temperature/Humidity

From -40°C to 70°C (-40°F to 158°F); Humidity: 90% ± 3% (no condensation)

Wiper

Manual & Scheduled & Smart Wiper

Protection Level

IP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensions

578.3 mm × 571 mm × 955.7 mm (22.8 » × 22.5 » × 37.6 «)

Weight

Approx. 100kg (220.5 lb)

VCA Range for Humans

1050 m

VCA Range for Vehicles

3150 m
