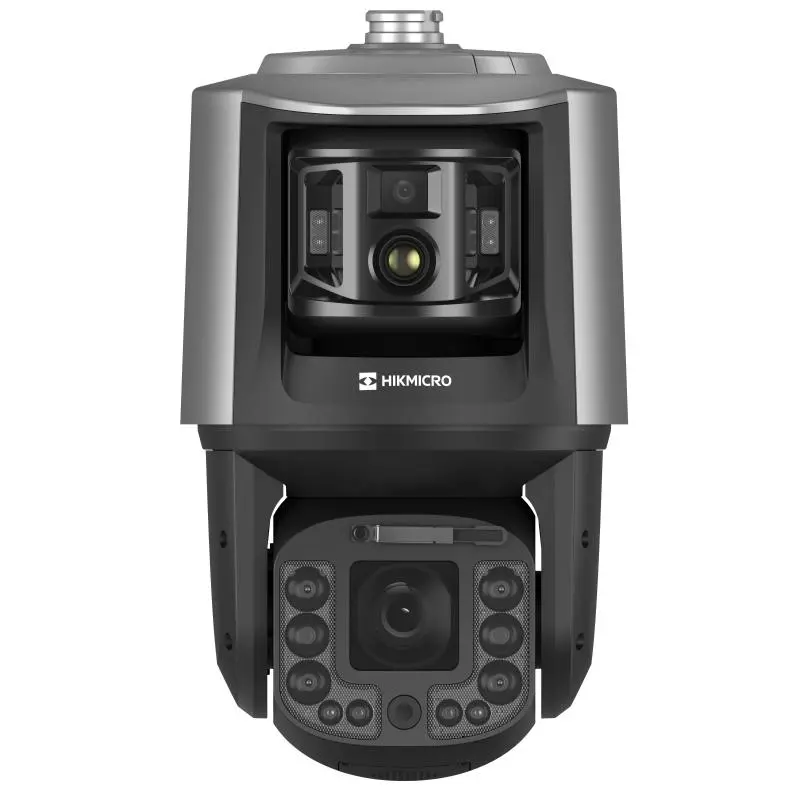

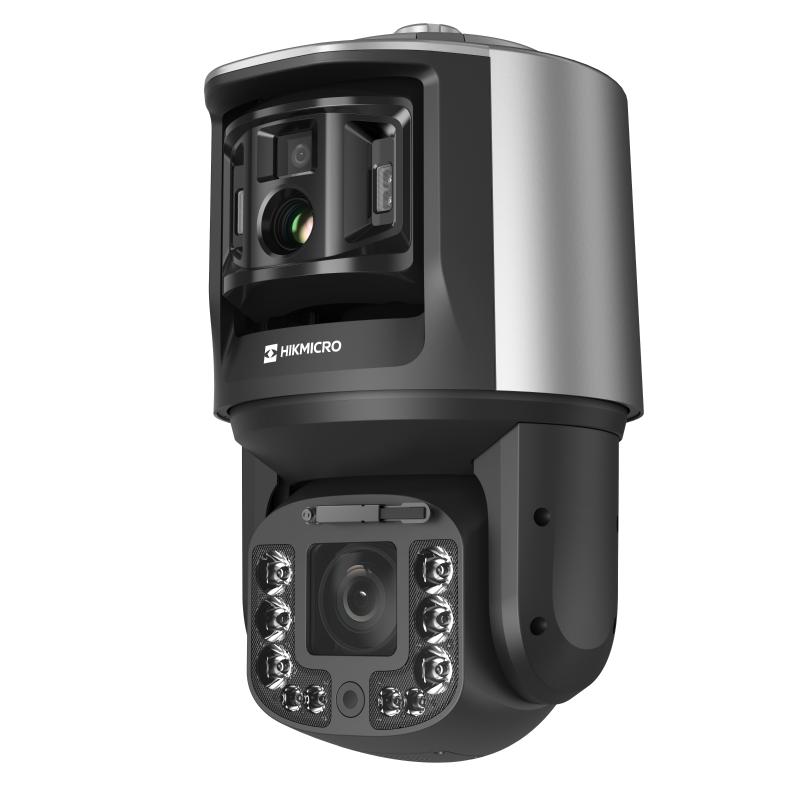

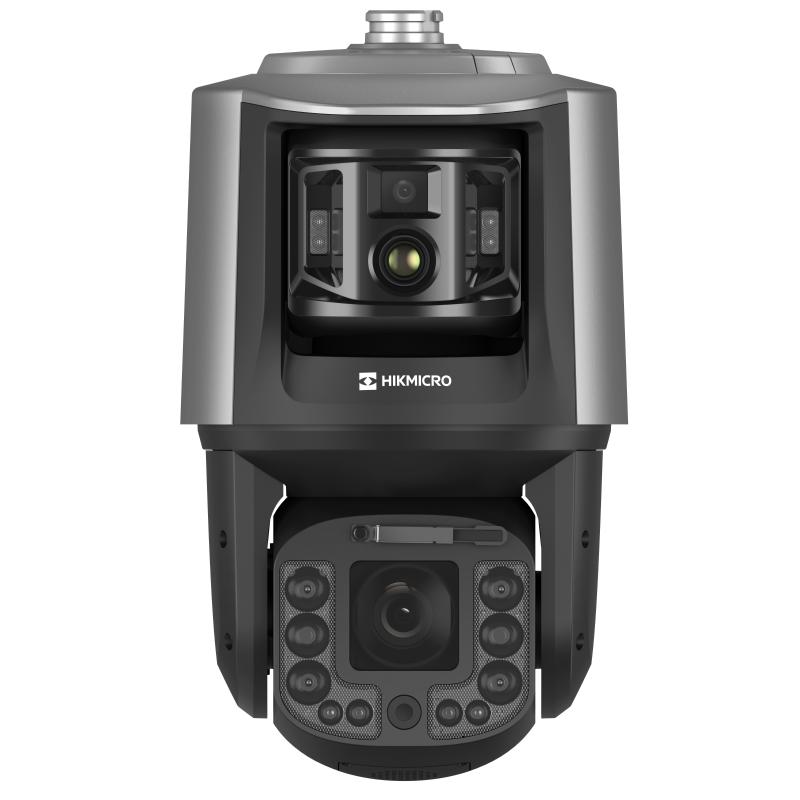

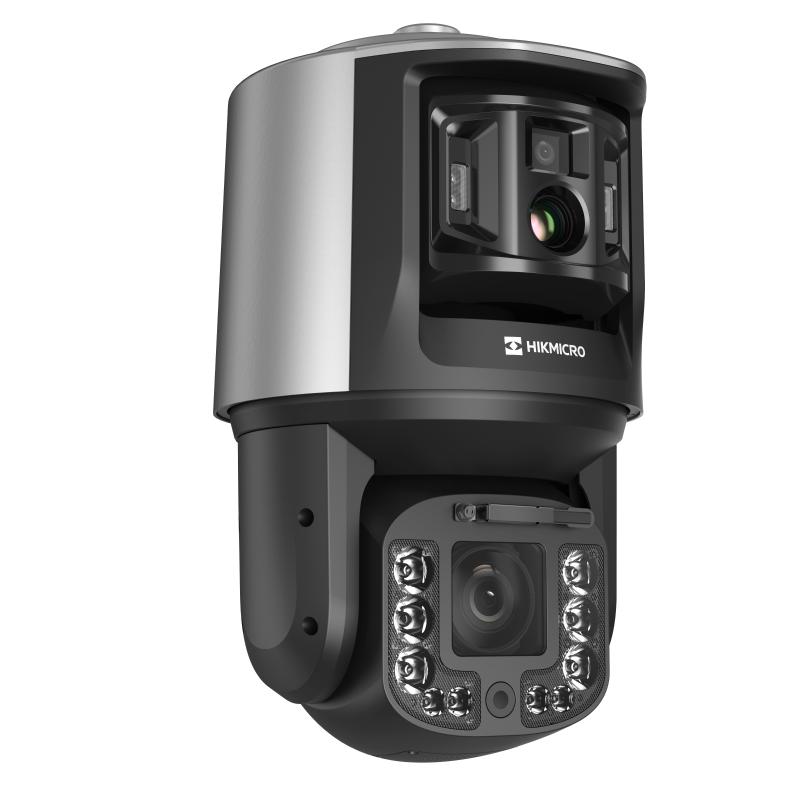

Система отслеживания теплового интеллектуального соединения
Система отслеживания теплового интеллектуального соединения
По запросу
Запрос ценыVCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
Click Linkage | One-Touch automatically calibration |
Tracking Mode | Manual/Auto |
Event Tracking | Intrusion Detection, Line Crossing Detection |
Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
Resolution | 384 x 288 |
Pixel Pitch | 12 μm |
Spectral Range | 8 μm to14 μm |
NETD (Noise Equivalent Temperature Difference) | < 25 mK (25°C, F1.0) |
Focal Length | 15.4 mm |
IFOV | 0.78 mrad |
Field of View | 18.1° × 13.9° (H × V) |
Min. Focusing Distance | 3 m |
Aperture | F1.0 |
Digital Zoom | x2, x4, x8 |
Image Sensor | 1/1.8”CMOS |
Resolution | 2688 × 1520 |
Focal Length | 8 mm |
Field of View | 39.4° × 21.96° (H × V) |
Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON) |
Aperture | F1.5 |
Main Stream | Thermal:;25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240);Optical:;50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-stream | Thermal: ;25 fps (704 × 576, 640 × 512, 320 × 240);Optical:;50 Hz: 25 fps (704 × 576, 352 × 288);60 Hz: 30 fps (704 × 480, 352 × 240) |
Video Compression | Main Stream: H.265/H.264;Sub-Stream: H.265/H.264/MJPEG |
Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/AAC |
Alarm Input | 2-ch inputs (0-5 VDC) |
Alarm Output | 2-ch relay outputs, alarm response actions configurable |
Audio Input | 1-ch, Line input: 2 — 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
Audio Output | 1-ch, Linear Level; Impedance: 600 Ω |
Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.;1, RS-485 interface;1, BNC 1.0 V [p-p]/75 Ω video output |
Image Sensor | 1/1.8» progressive scan CMOS |
Resolution | 2688 x 1520 |
Min. Illumination | Color: 0.0003 Lux @(F1.3, AGC ON), 0 Lux with light on |
Focal Length | 6 — 240mm, 40 × optical zoom |
Field of View | 59°(H)*34.16°(V)-1.77°(H)*1.0°(V) |
Digital Zoom | ×2, ×4, ×8, ×16 |
Aperture Range | F1.3-F4.6 |
Focus Mode | Auto/Semi-auto/Manual |
WDR | 120 dB |
Optical Defog | Yes |
Image Enhancement | 3D DNR, EIS, HLC/BLC |
Pan Speed | configurable from 1° to 160°/s |
Tilt Speed | configurable from 1°/s to 90°/s |
Main Stream | 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720);50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120);50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144) |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264;Sub-Stream: H.265/H.264/MJPEG |
Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
Network Storage | MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
API | ISAPI, HIKVISION SDK, open network video interface |
Simultaneous Live View | Up to 20 channels |
User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
Client | iVMS-4200, Hik-Connect |
Web Browser | Live view (plug-in allowed) : Internet Explorer 11;Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +;Local service : Chrome 57.0 +, Firefox 52.0 + |
Power Supply | DC36V,AC24V,PoE++ |
Power Consumption | Max. 90W |
Working Temperature/Humidity | -40 °C to +70 °C (- 40 °F to 149 °F), ;Humidity: 90% or less |
Protection Level | IP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
Dimensions | 458.7mm x 266.6mm x 290mm |
Weight | 13.5kg |
