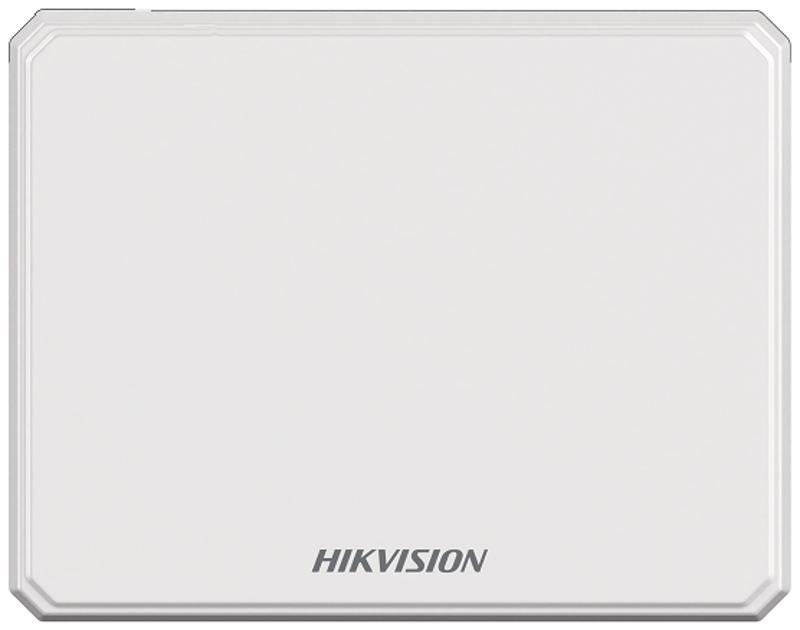

Запрос цены- Radar
- Working FrequencyX band (9.3GHz~9.5GHz)
- Modulation WaveformLinear Frequency Modulation (LFM) Pulse System
- Sweep Bandwidth10MHz
- Cycle Time1.8s
- Horizontal Scanning Angle-50° ~ +50°
- Vertical Scanning Angle-6° ~ +6°
- Max. Detectable Targets≥500
- Max. Detection Trigger LinesUp to 4 trigger line(s)
- Max. Detectable ZonesUp to 16 zone(s)
- Detection Target TypeHuman, Vehicle
- Range Measurement200m~11km
- Detection DistanceDetection range ≥ 5km，Human：1.8m (RCS ≈ 1m²)
Detection range ≥ 10km，Vehicle： 4m (RCS ≈ 10m²) - Distance Resolution15m
- Angle Resolution3.5°
- Azimuth Angle Accuracy≤0.3°
- Speed Measuring Range ±0.5m/s ~ ±50m/s
- Speed Resolution0.1m/s
- Speed Measuring Accuracy0.3 m/s
- Function
- Radar + PTZ Smart TrackingSupported
- Zone SettingsWarning zone, Early warning zone, Disable zone
- Tracking ModeTime priority, Range priority, Multi-target auto switch, Target trigger priorit
- Scene ModeExpert mode, Open mode, Shrub mode
- Map ManagementSupported
- Network
- ProtocolsTCP/IP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, NTP, IPv4/IPv6, UDP, SSL/TLS, ARP
- Simultaneous Live ViewUp to 32 channel(s)
- APISDK, ISAPI
- User/HostUp to 16 users, 3 user levels: administrator, operator, and user
- SecurityAuthentication for HTTP/HTTPS, RTP/RTSP over HTTPS, Control timeout settings, TLS1.2, Host authentication (MAC address)
- ClientHik-Central Pro
- Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge
- Interface
- Network Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port(s)
- On-Board StorageBuilt-in 128 G memory card
- Alarm 1 input, 1 Relay output (max. 1A@30 VDC，0.3A@125 VAC)
- RS-2322 RS-232
- IndicatorSupported
- General
- Voltage Range36V DC±33%（3.3A MAX)
- Power Consumption≤85W
- Working Temperature-40℃ ~ +65℃, <90%RH
- ProtectionIP66
- Dimensions630mm×495mm×80mm
- 22kg
- Installation Height≥10m
- Approval
- EMCCE-EMC: EN IEC 61326-1:2021
- SafetyCB: IEC 61010-2-201:2017, IEC 61010-1:2010/AMD1:2016
CE-LVD: EN 61010-1:2010+A1:2019
Satety of laser products：IEC 60825-1:2014, EN 60825-1:2014, EN 60825-1:2014/A1:2017, EN 60825-1:2014/A11:2021
LOA: SANS IEC 61010-1 - RFCE-RED: EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN IEC 62311:2020, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-19 V2.2.1, ETSI EN 303 413 V1.2.1
- EnvironmentCE-RoHS: EN IEC 63000:2018
- ProtectionIP66: IEC 60529:2013
- Anti-Corrosion ProtectionNEMA 4X: ASTM B117-2019, ANSI/NEMA 250-2020 Section 5.6, ANSI/NEMA 250-2020 Section 5.7 & IEC 60529:1989/AMD2:2013/COR1:2019
