Hikvision DS-2XM6365G1-IV(S)(M)(/ND)

Артикул: HC-DS-2XM6365G1-IV(S)(M)(/ND)

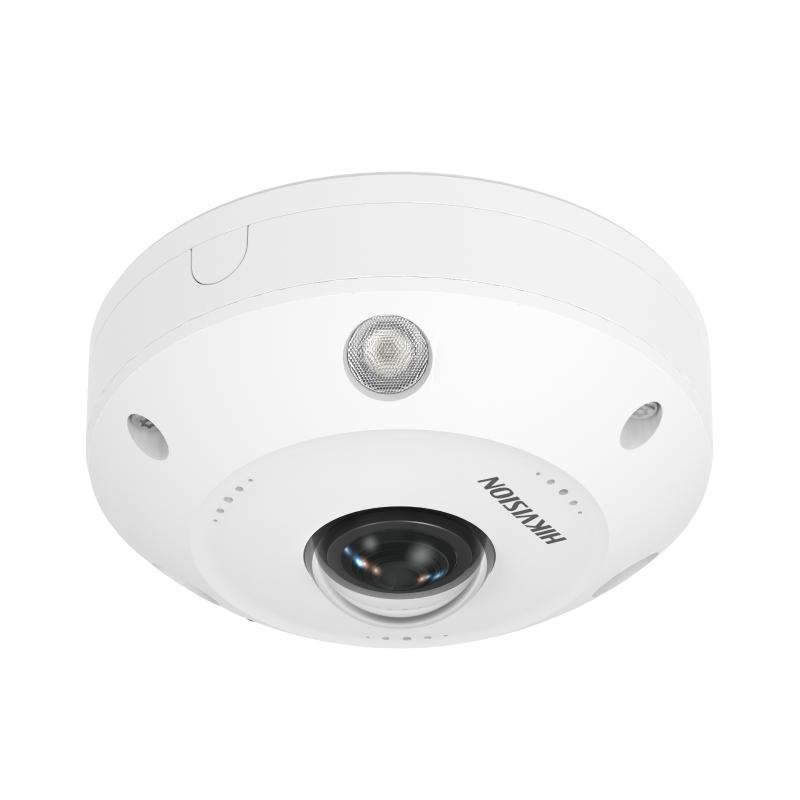

Hikvision DS-2XM6365G1-IV(S)(M)(/ND) — Mobile fisheye IP-камера

Max. Resolution: 2560 × 2560
Shutter Speed: 1/25 s to 1/100,000 s
Day & Night: IR Cut Filter
Focal Length & FOV: 1.09 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount)
Lens Mount: M12
Focus: Manual focus
Max. Aperture: F2.0
Supplement Light Type: IR, 3 LEDs. Each LED is independently controlled.

После подтверждения наличия
По Азербайджану 1-2 дня

до 36 месяцев
от производителя

Официальный дистрибьютор Hikvision

Помощь в подборе и настройке оборудование

Уточняйте наличие

По запросу

Цена для партнеров

Запросить скидку

Помощь специалиста

Затрудняетесь в выборе оборудования?

Lens
Focal Length & FOV1.09 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount)
Lens MountM12
FocusManual focus
Max. ApertureF2.0

Video
Main Stream50Hz: 25fps (3072 × 2048, 2560 × 2560,2048 × 2048, 1280 × 1280)
60Hz:30fps (3072 × 2048, 2560 × 2560,2048 × 2048, 1280 × 1280)
Sub-Stream50Hz: 25fps (720 × 720, 480 × 480)
60Hz:30fps (720 × 720, 480 × 480)
Third Stream50Hz: 25fps (3072 × 2048, 2560 × 2560,2048 × 2048, 1280 × 1280,720 × 720, 480 × 480)
60Hz:30fps (3072 × 2048, 2560 × 2560,2048 × 2048, 1280 × 1280,720 × 720, 480 × 480)
Video Compression Main stream: H.264, H.265, Smart264, Smart265
Sub-stream: H.264, H.265, Smart264, Smart265,MJPEG
Third stream: H.264, H.265 ,Smart264, Smart265
Video Bit Rate256 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlConstant Bit Rate, Variable Bit Rate
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)Support 4 fixed region for (main/sub) stream

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 8 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User ManagementUp to 16users, 3 levels: Administrator, Operator and User
Web BrowserChrome45+, Edge41+, Firefox45+

Wide Dynamic Range (WDR)120 dB
Image SettingsSupport rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
Day/Night SwitchDay/Night/Auto/Schedule
Image EnhancementBLC, HLC, 2DNR ,3DNR
Privacy MaskEnables configuration, and supports drawing of up to 4 areas
Picture OverlaySupport image overlay, uploading images, enabling, coordinates, etc.
Backlight Compensation(BLC)Support up, down, left, right, center and custom backlight compensation adjustment

Interface
Alarm -S: 1-ch alarm input, max. 12 VDC; 1-ch alarm output, max 12 VDC, 30 mA
Ethernet InterfaceWithout –M: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
With -M: four-core M12 aviation plug
Audio2 Built-in microphones
Reset KeySupport
TF Card StorageBuilt-in Micro SD Slot, storage capacity up to 512 GB

Event
Linkage MethodUpload to FTP, notify monitoring center, send email, trigger recording
Basic Event Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
Smart EventAudio Exception Detection
Scene Change Detection
Intrusion Detection
Line Crossing Detection
Region Entrance Detection
Region Exiting Detection
Loitering Detection
People Gathering Detection
Fast Moving Detection
Parking Detection
Unattended Baggage Detection
Object Removal Detection

General
Product DimensionWith adapter plate: Ø136 × 63.0 mm (Ø5.35″ × 2.48″)
Without adapter plate: Ø135.5 × 55.8 mm (Ø5.33″ × 2.20″)
Note: Adapter plate included in factory standard configuration.
Power24 VDC, 0.40 A, max. 12 W, two-core terminal block
PoE: 802.3af, 36 to 57 VDC, 0.34 A to 0.22 A, max. 12 W
/ND: no power interface, only support PoE power supply
Product WeightApprox. 610 g (1.35 lb.)
Startup and Operating Conditions-30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
LanguageEnglish, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
General FunctionOne-key reset, heartbeat, password protection, privacy mask, watermark, IP address filter

Approval
EMCCE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013）
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015IC: ICES-003 Issue 7:2020
SafetyCB: IEC 60950-1CE:
CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
EnvironmentCE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
Automotive and RailwayEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010);
EN45545 (EN 45545-2:2013+A1:2015);
E-MARK (ECE R10)
