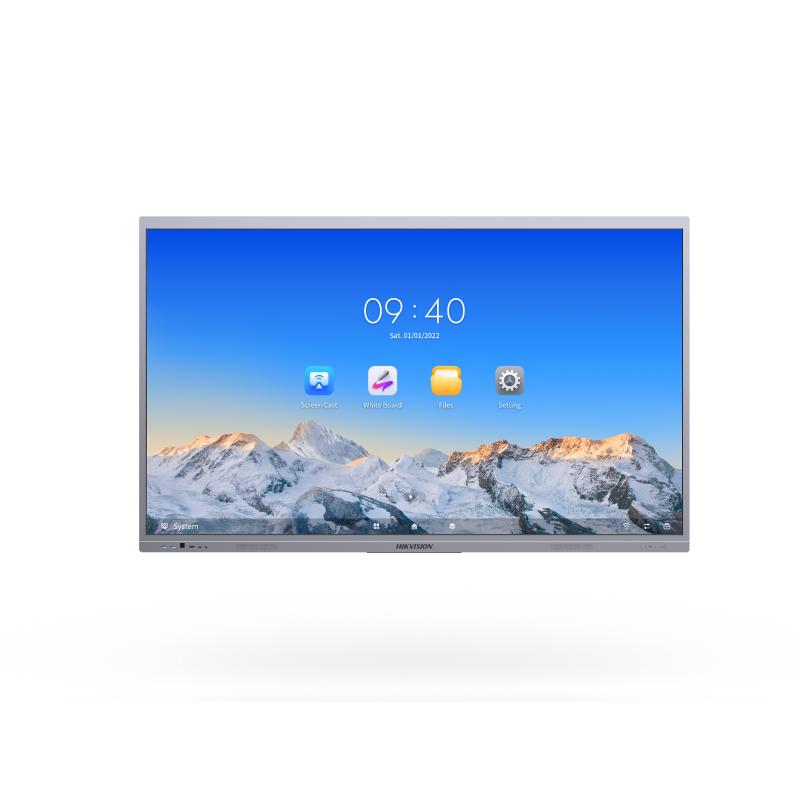

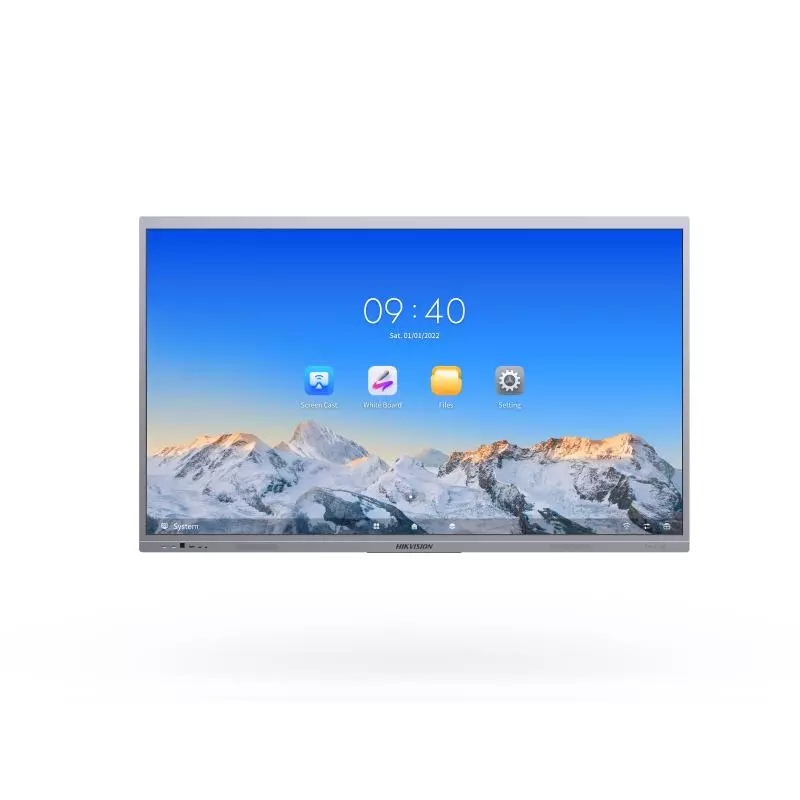

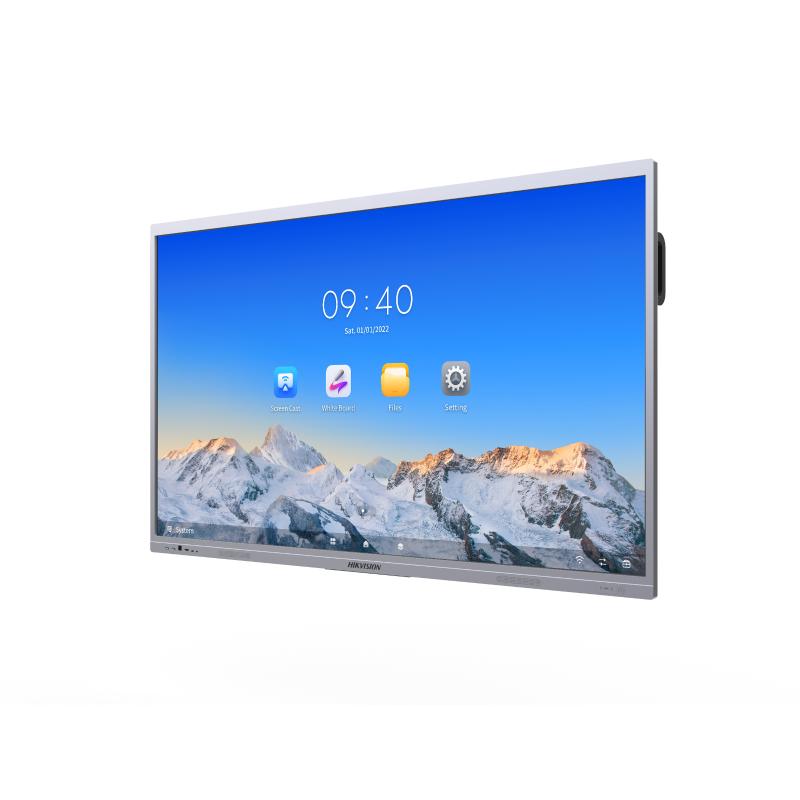

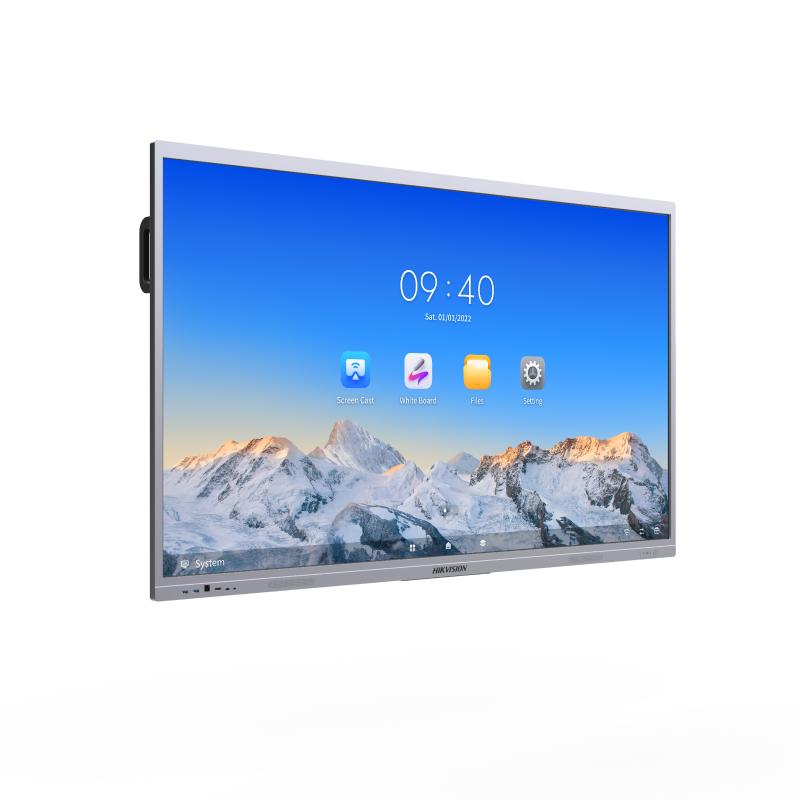

Запрос ценыProduct Model | DS-D5C86RB/A |
Screen Size | 86 inch |
Backlight | DLED |
Pixel Pitch | 0.1645（H）× 0.4935（V）mm |
Resolution | 3840 × 2160 @60 Hz |
Brightness | 400 cd/m² （Typ.） |
Color Depth | 10 bit |
Display Color | 1.07 G |
Response Time | 5 ms |
Panel Type | VA |
Contrast Ratio | 5000:1 (Static);30,000:1 (Dynamic) |
Color Gamut | 72% NTSC (CIE1931) (Typ.) |
Refresh Rate | 60 Hz |
Viewing Angle | 178° (H)/178° (V) |
Aspect Ratio | 16:9 |
Surface Hardness | 9H (Pencil);7 (Mohs) |
Surface Glass | Anti-Glare Glass |
Surface Haze | 25% Haze |
Glass Bonding Method | Zero Lamination |
Display Area | 1895.04mm ╳ 1065.96mm |
Working Duration | 7 × 16 H |
Transmittance | 88% ± 3 |
Lifespan | 50,000 hours |
Type | Infrared Touch Screen |
Touch Point | Up to 50-point multi-touch |
Touch Response Time | ≤ 2 ms |
Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) |
Touch Precision | ± 0.5 mm (≥ 90% touching area) |
Touch Resolution | 32767 × 32767 |
Operation System | Android 13.0 |
Memory | 8 GB |
Built-in Storage | 128 GB |
Processor | Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz） |
GPU | Mali-G610 MC4 |
HDCP Version | 2.3 |
Loudspeaker | Built-in 2 × 20 W+25W loudspeaker; |
Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 |
NFC | Support screen mirroring by Android phones |
Light Sensor | Yes |
Video & Audio Input | HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1 |
Video & audio output | HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1 |
Control interface | TOUCH-USB 3.0 × 3, RS232 × 1 |
Network Interface | LAN (1000 Mbps) × 2 ;WIFI AP & Station, 2.4G/5G;WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
Data Transmission Interface | USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
Power Supply | 100 to 240 VAC, 50/60 Hz |
Standby Consumption | ≤ 0.5 W |
Average Consumption | < 205W |
VESA | 800 mm × 600 mm （4 × M8-25 mm） |
Product dimensions | 1960.5 mm × 1158.2 mm× 82.5 mm |
Accessory | Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control. |
Package Dimensions (W × H × D) | 2197 mm × 284 mm × 1376 mm |
Net Weight | 64.13 kg |
Gross Weight | 81.6 kg |
Working Temperature | 0 °C to 40 °C (32 °F to 104°F) |
Working Humidity | 10%~90% RH |
