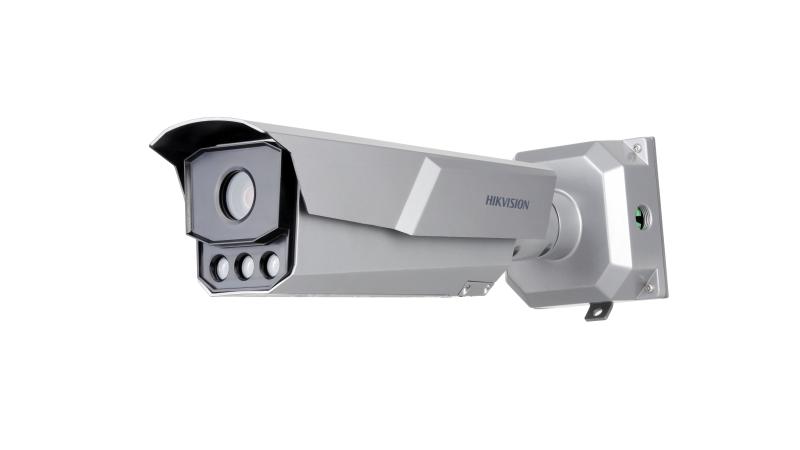

Hikvision iDS-TCD403-BI

Image Sensor

1/1.8″ progressive scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON), 0.0005 Lux with IR

Shutter Time

1/25 s to 1/100,000 s

Slow Shutter

Supported

Day & Night

IR cut filter

Focal Length & FOV

8-32 mm;;Horizontal FOV: 39.7° to 15.9°;;Vertical FOV: 22.3° to 9.1°;;Diagonal FOV: 45.8° to 18.1°

Focus

Auto

Iris Type

DC drive

Aperture

F1.63-1.8

Built-in Supplement Light Range

Up to 100 m

IR Wavelength

850 nm

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288);60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

Sub Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

Third Stream

50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288);60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)

Video Compression

H.264 and H.265 encoding;Main stream: H.265/H.264/MJPEG;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile/Main profile/High profile

H.265 Type

Baseline profile/Main profile/High profile

Audio Compression

G.711/G.722.1

Audio Bit Rate

8 Kbps (G.711) /16 Kbps (G.722.1)

Protocols

TCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP

Simultaneous Live View

Up to 6 channels

API

ONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)

Network Storage

Micro SD/TF card (128 GB), local storage and CVR, NVR, ANPR

Client

HCM, HCM LITE, HikCentral Master

Web Browser

IE7+

Image Settings

Rotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.

Day/Night Switch

Auto/Scheduled/Triggered by alarm in

Wide Dynamic Range (WDR)

140 dB

Image Enhancement

BLC, 3D DNR

Video Output

Network

Ethernet Interface

1 RJ45 10M/100M/1000M Ethernet interface;1 RS-485 interfaces;1 Wiegand interface

On-board Storage

Built-in microSD/TF card, up to 128 GB

Audio

Supported

Alarm

1 input interfaces, 1 output interfaces,2relays

Reset Key

Supported

Smart Function

Vehicle counting, traffic monitoring, traffic status release

Accuracy (Under recommended installation and lighting conditions)

Vehicle counting accuracy > 95%

Firmware Version

V4.5.0

Operating System

Linux

Power

12 VDC to 24 VDC ± 20%, PoE (802.3at, class 4), Max. 12 W

Material

Aluminum alloy

Dimension

With package: 428.5 × 120 × 132.8 mm

Weight

Camera: approx. 3.12 ± 0.5 kg (6.88 ± 1.1 lb)

Operating Condition

Temperature: -30 °C to +70 °C (-22 °F to +158 °F) ;Humidity: 95% or less (non-condensing);

General Function

One-key reset, three streams, heartbeat, password protection, watermark

EMC

CE, FCC, RoHS

Protection

IP67, IK10
