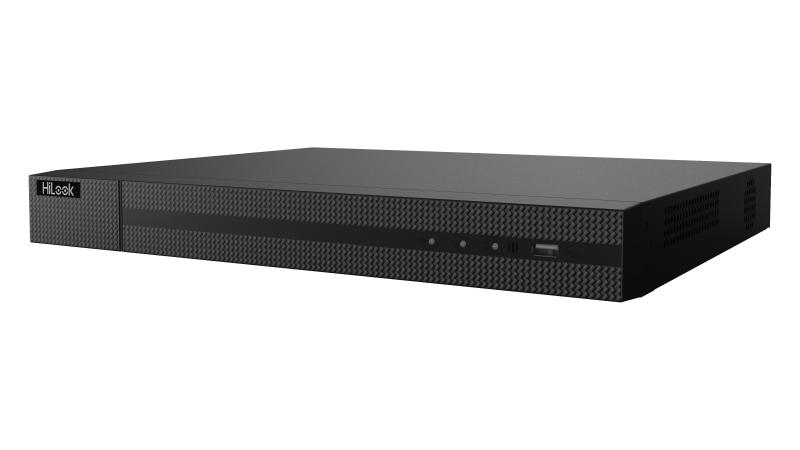

HiLook DVR-232G-M2

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;;Quick search by object or event type is supported;

IP Video Input

2-ch (up to 18-ch);Up to 5 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

32-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ);32-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

16-ch

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω)

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:;For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps;For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps;For standard definition stream access: WD1/4CIF/VGA/CIF@25fps ;Sub-stream: CIF/QVGA@15fps

Video Bitrate

32 Kbps to 4 Mbps

Dual-stream

Nonsupport

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Remote Connection

128

Network Protocol

TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, EHome

Total Bandwidth

128 Mbps

Network Interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Serial Interface

RS-485 (half-duplex)

SATA

2 SATA interface

Capacity

Up to 10 TB capacity for each disk

USB Interface

Front panel: 1 × USB 2.0;Rear panel: 1 × USB 3.0

Power Supply

12 VDC, 3.33 A

Consumption

≤ 18 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

384 × 315 × 52 mm (15.1 × 12.4 × 2.0 inch)

Weight

≤ 2.2 kg (without HDD, 4.9 lb.)
