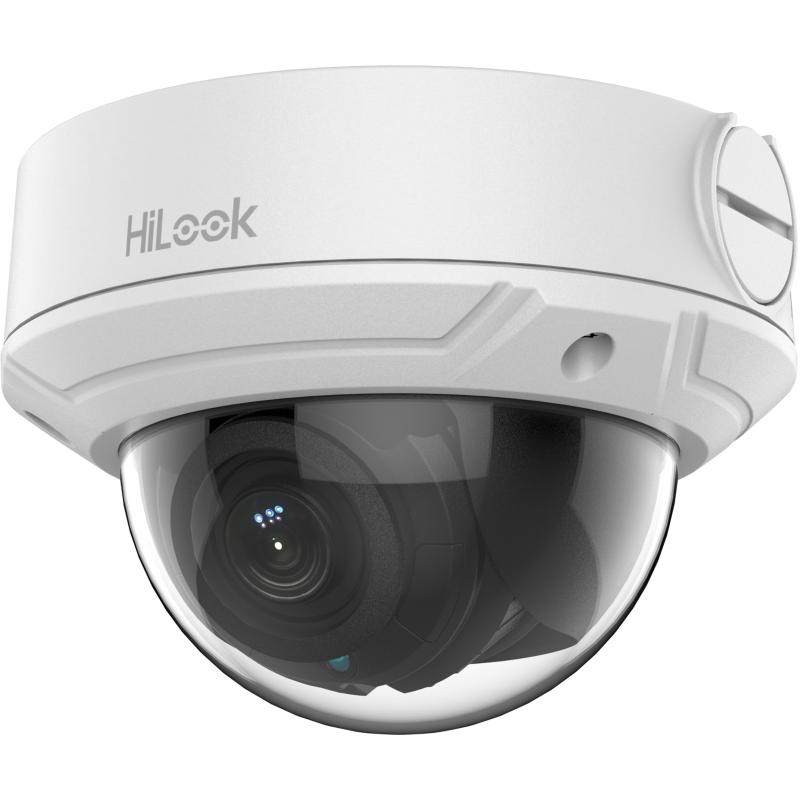

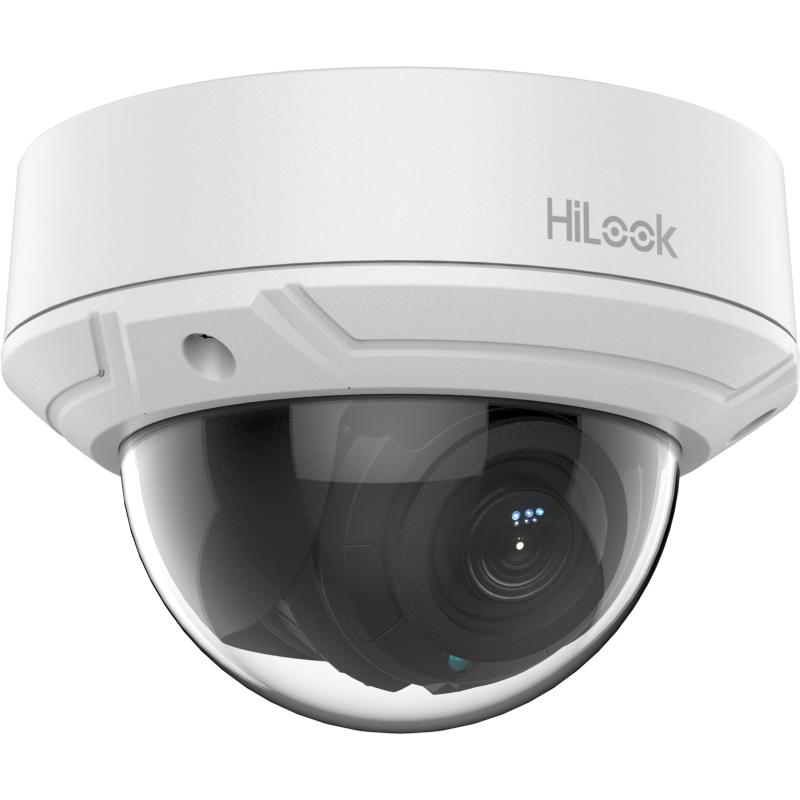

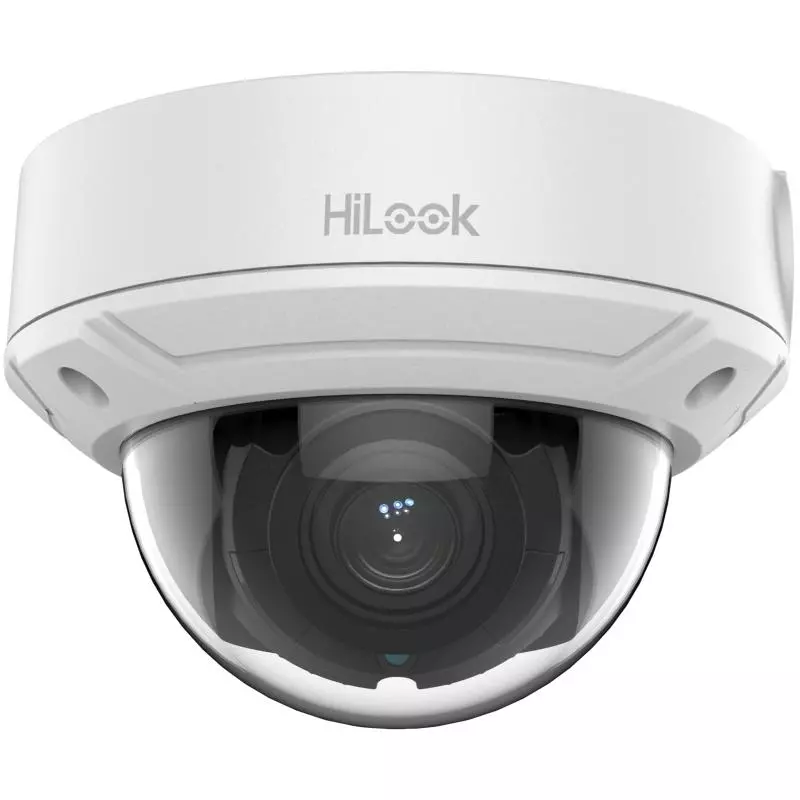

Сетевая камера ColorVu MD 2.0 с фиксированным корпусом, 2 МП
Сетевая камера ColorVu MD 2.0 с фиксированным корпусом, 2 МП
По запросу
Запрос цены|
Image Sensor |
1/2.7″ progressive scan CMOS |
|
Max. Resolution |
2560 × 1920 |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355° |
|
Lens Type |
Varifocal lens, motorized lens, 2.8 to 12 mm |
|
Focal Length & FOV |
2.8 to 12 mm: horizontal FOV 96° to 29°, vertical FOV 69° to 22°, diagonal FOV 131° to 37° |
|
Lens Mount |
Ø14 |
|
Iris Type |
Fixed |
|
Aperture |
F1.6 |
|
Supplement Light Type |
IR |
|
Supplement Light Range |
Up to 30 m |
|
IR Wavelength |
850 nm |
|
Main Stream |
50 Hz: 20 fps (2560 × 1920); 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 20 fps (2560 × 1920); 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main profile |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface, ISAPI |
|
User/Host |
Up to 32 users. 3 levels: administrator, operator and user;3 user levels: administrator, operator, and user |
|
Client |
iVMS-4200, Hik-Connect |
|
Web Browser |
Plug-in required live view: IE 10+;Plug-in free live view: Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+ |
|
Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
|
Day/Night Switch |
Auto, Schedule, Day, Night |
|
Wide Dynamic Range (WDR) |
120 dB |
|
Image Enhancement |
BLC, 3D DNR |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD card, up to 256 GB |
|
Reset Key |
Yes |
|
Basic Event |
Motion detection, video tampering alarm, exception |
|
Linkage |
Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture |
|
Power |
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug;PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W |
|
Dimension |
Ø141 mm × 99.9 mm (Ø5.6″ × 3.9″) |
|
Package Dimension |
140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″) |
|
Weight |
Approx. 810 g (1.8 lb.) |
|
With Package Weight |
Approx. 1100 g (2.4 lb.) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Language |
English, Ukrainian |
|
General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
|
EMC |
FCC SDoC: 47 CFR Part 15, Subpart B;;CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;;RCM: AS/NZS CISPR 32: 2015;;IC VoC: ICES-003: Issue 7;;KC: KN 32: 2015, KN 35: 2015 |
|
Safety |
UL: UL 62368-1; ;CB: IEC 62368-1:2014+A11; ;CE-LVD: EN 62368-1:2014/A11:2017; ;BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005 |
|
Environment |
CE-RoHS: 2011/65/EU; ;WEEE: 2012/19/EU; ;Reach: Regulation (EC) No 1907/2006 |
|
Protection |
IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
