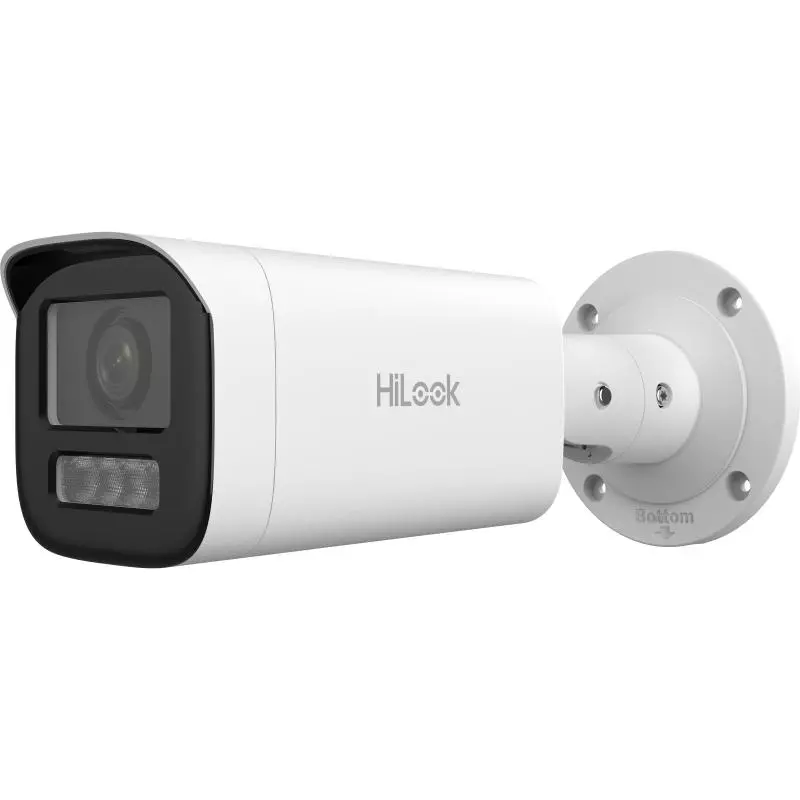

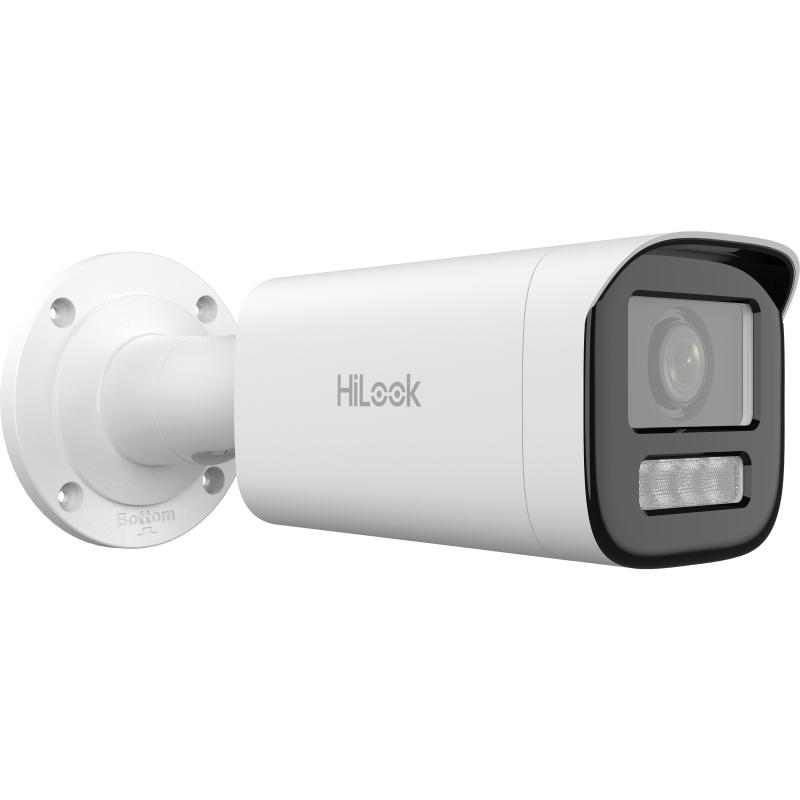

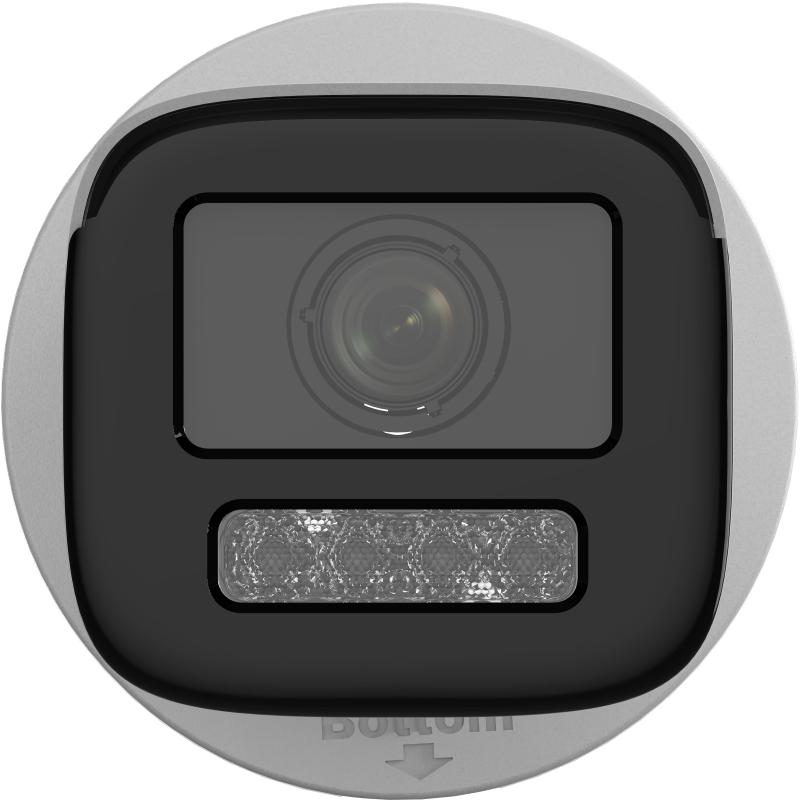

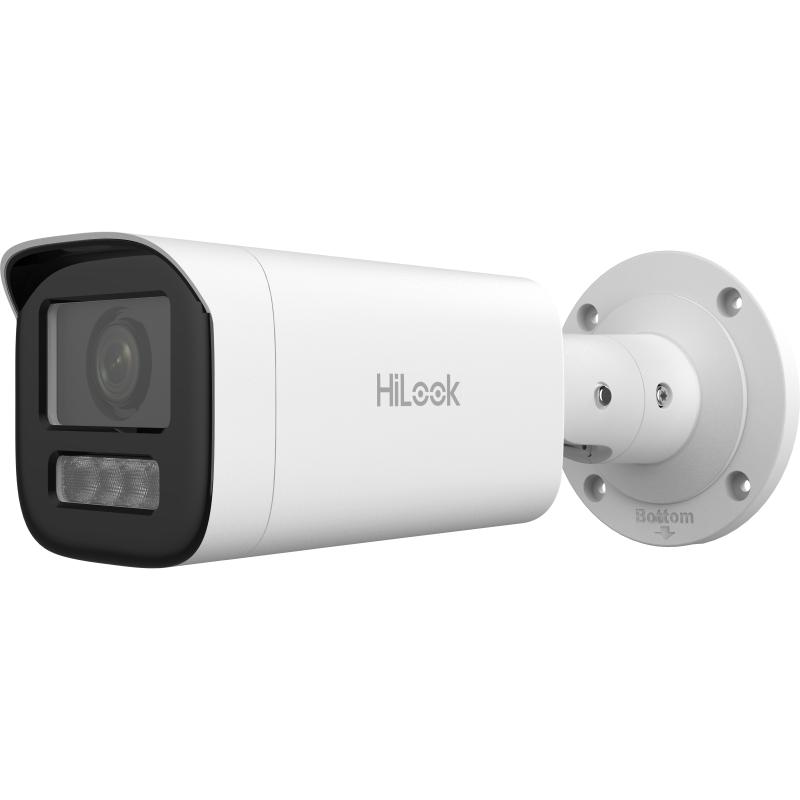

HiLook IPC-B620HA-LZU

Image Sensor

1/2.9″ Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°

Lens Mount

Ø14

Iris Type

Fixed

Aperture

F1.6

DORI

D: 45.7 to 141.4 m, O: 18.1 to 56.1 m, R: 9.1 to 28.3 m, I: 4.6 to 14.1 m

Supplement Light Type

IR,White Light

Supplement Light Range

Up to 50 m

IR Wavelength

850 nm

Smart Supplement Light

Yes

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream

Audio Type

Mono sound

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Client

iVMS-4200,HiLookVision

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Web Browser

Plug-in required live view: IE 10, IE 11,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC,HLC,3D DNR

SNR

≥ 52 dB

Privacy Mask

4 programmable polygon privacy masks

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Reset Key

Yes

Built-in Microphone

Yes,1 built-in microphone

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning

Power

12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 12.9 W

Material

Metal & Plastic

Dimension

;Ø105 mm × 252 mm (Ø4.13 × 9.92″)»»

Package Dimension

315 mm × 137 mm × 141 mm (12.40″» × 5.39″» × 5.55″»)

Weight

Approx. 565 g (1.2 lb.)

With Package Weight

Approx. 860 g (1.9 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English
