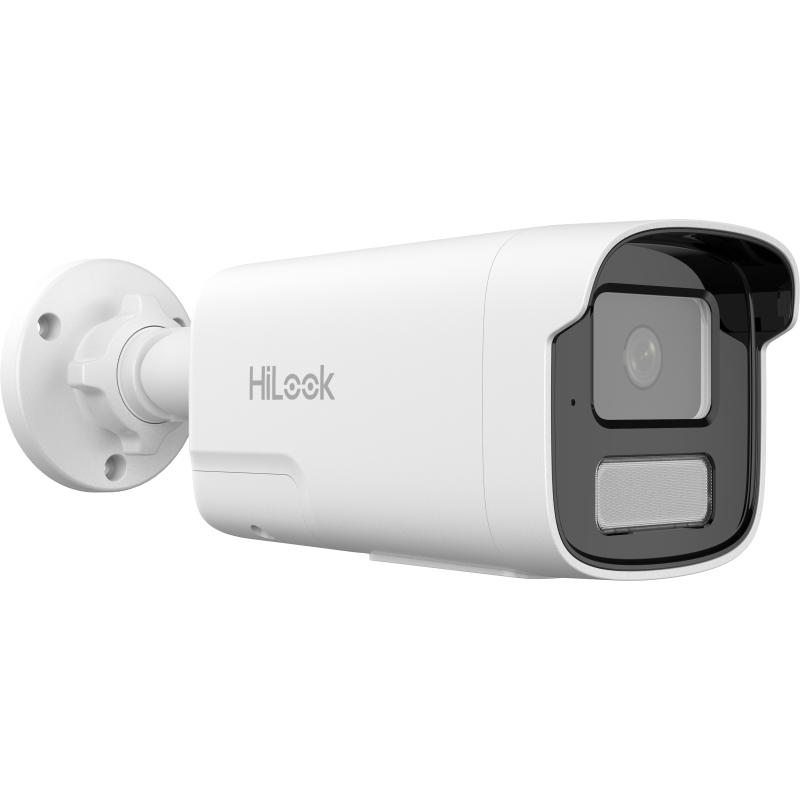

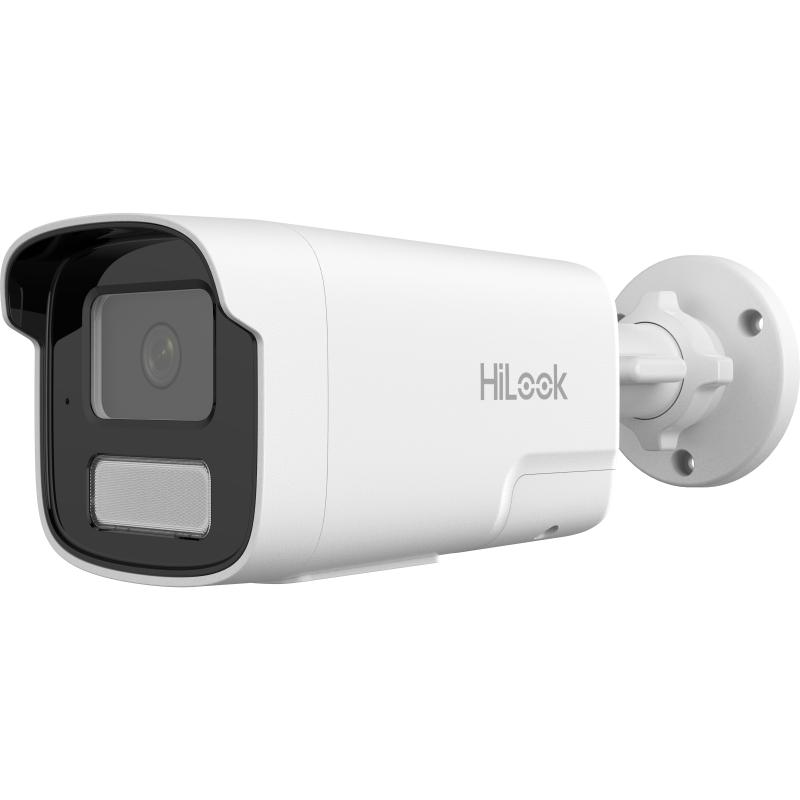

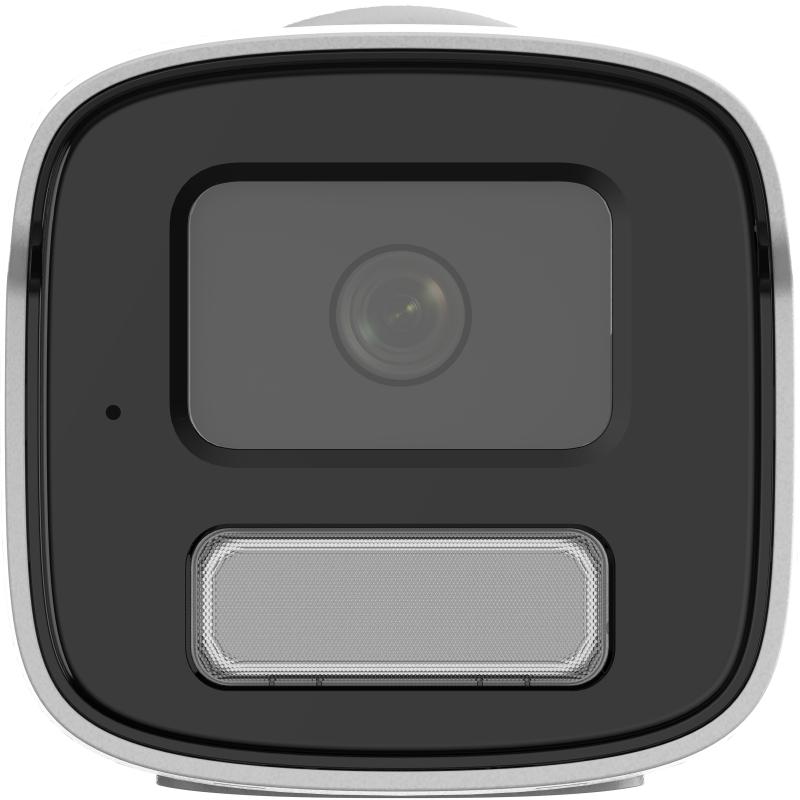

HiLook IPC-B480HA-LUF/SL

Image Sensor

1/2.7″ Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°

Lens Type

Fixed focal lens, 4 and 6 mm optional

Focal Length & FOV

4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°;6 mm, horizontal FOV 56°, vertical FOV 30°, diagonal FOV 65°

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.0

DORI

4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m;6 mm, D: 170 m, O: 67 m, R: 34 m, I: 17 m

Supplement Light Type

IR,White Light

Supplement Light Range

Up to 50 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz: ;12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz:;15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Client

iVMS-4200,HiLookVision

Web Browser

Plug-in required live view: IE 10, IE 11,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

4 programmable polygon privacy masks

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

;Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

Yes,1 built-in microphone

Reset Key

Yes

Built-in Speaker

Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light

Power

12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection,;PoE: IEEE 802.3af, Class 3, max. 10.5 W

Material

Metal & Plastic

Dimension

83.7 mm × 80.7 mm × 221.1 mm (3.3″ × 3.2″ × 8.7″)

Package Dimension

260 mm × 125 mm × 125 mm (10.2″ × 4.9″ × 4.9″)

Weight

Approx. 410 g (0.9 lb.)

With Package Weight

Approx. 669 g (1.5 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat,anti-banding,mirror,password protection,password reset via email

Flashing Light

Yes

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7

Safety

;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
