- Video Decoding
- Video Decoding FormatH.264，H.265，Smart264，Smart265，MJPEG
- Decoding ResolutionMax. 32 MP
- Video Decoding ChannelMax 36CH
- Video Decoding Capability1) H.264/H.265 format:
Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p, 32-channel 720p, 36-channel D1 and lower resolution @ 30 fps in real time.
2) MJPEG format:
Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time.
3) HIK264 format:
Supports decoding 2-channel of 720p and lower resolution @ 25 fps in real time. - Encrypted Stream Decoding ChannelMax 16CH
- Encrypted Stream Decoding Capability1) H.264/H.265 format:
Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution @ 30 fps in real time.
2) MJPEG format:
Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time.
3) HIK264 format:
Supports decoding 1-channel of 720p and lower resolution @ 25 fps in real time. - Screen Split Quantity1/4/6/8/9/16/25/36
- Scene Quantity4
- Contingency Plan Quantity1
- Audio DecodingSupported
- Display

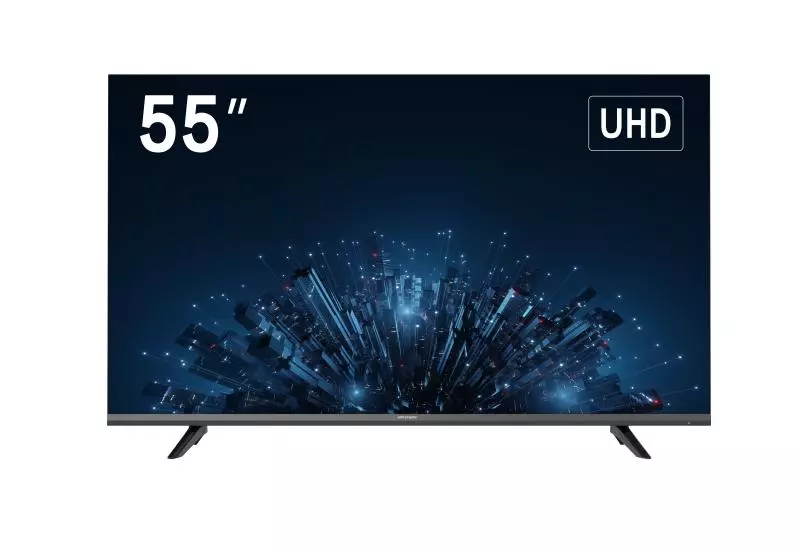

- Screen Size55 inch
- Active Display Area1209.6 (H) mm × 680.4 (V) mm
- Resolution3840 ×2160 @60 Hz
- BacklightD-LED
- Pixel Pitch0.315 (H)mm × 0.315 (V) mm
- Brightness300 cd/㎡
- Viewing Angle178° / 178°
- Color Depth8 bit+FRC
- Contrast Ratio4000 : 1
- Response Time6.5 ms (typ)
- Refresh Rate60 Hz
- HazeHaze 2%, 3H
- Color Gamut72% NTSC
- Reliability7 *24H
- Interface
- Video & Audio InputHDMI 2.0 ×1
- Video & Audio OutputSpeaker Out × 2 ( 8Ω 10W ), Line-out 3.5mm × 1
- Data Transmission InterfaceUSB2.0 ×2, 1000M LAN × 1, RELAY IN × 1, RELAY OUT × 2
- Control InterfaceCONSOLE × 1, RS485 × 1
- Power
- Power Supply100-240 V～, 50/60 Hz, 1.0A Max
- Power Consumption≤100W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0 °C to 50 °C (41 °F to 104 °F)
- Working Humidity20% to 90% RH (Non-Condensing)
- Storage Temperature-20 °C to 60 °C (14 °F to 140 °F)
- Storage Humidity5% to 90% RH (Non-Condensing)
- General
- Speaker8 Ω 10 W ×2
- Casing MaterialPlastic
- VESA7.87 inch ×7.87 inch
- Bezel Width0.05 inch (top/left/right) , 0.94 inch (bottom)
- Product Dimensions (W × H × D)Without base: 1225.2 (W) mm × 713.9 (H) mm × 73.76 (D) mm
48.24 (W) inch × 28.11 (H) inch × 2.9 (D) inch
With base: 1225.2 (W) mm × 772.86 (H) mm × 242.11 (D) mm
48.24 (W) inch × 30.43 (H) inch × 9.53 (D) inch - Package Dimensions (W × H × D)1356 (W) mm × 828 (H) mm × 161 (D) mm
53.39 (W) inch × 32.6 (H) inch × 6.34 (D) inch - Net Weight11.30 ± 0.5 kg (24.91 ± 1.1 lb.)
- Gross Weight15.29 ± 0.5 kg (33.68 ± 1.1 lb.)
- Packing ListMonitor × 1, Base component × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1, Remote control × 1, Screw × 6
- Remarks*The base is included by default.
*The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
