- Video Decoding
- Video Decoding FormatH.264，H.265，Smart264，Smart265，MJPEG
- Decoding ResolutionMax. 32 MP
- Video Decoding ChannelMax 16CH
- Video Decoding Capability1) H.264/H.265 format:
Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution @ 30 fps in real time.
2) MJPEG format:
Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time.
3) HIK264 format:
Supports decoding 1-channel of 720p and lower resolution @ 25 fps in real time. - Encrypted Stream Decoding ChannelMax 16CH
- Encrypted Stream Decoding Capability1) H.264/H.265 format:
Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution @ 30 fps in real time.
2) MJPEG format:
Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time.
3) HIK264 format:
Supports decoding 1-channel of 720p and lower resolution @ 25 fps in real time. - Screen Split Quantity1,4,6,8,9,16
- Scene Quantity4
- Contingency Plan Quantity1
- Audio DecodingSupported
- Display

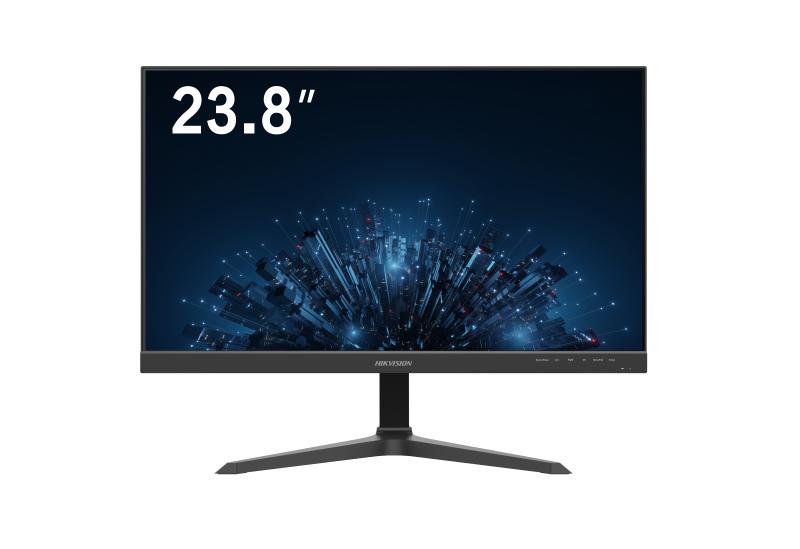

- Screen Size23.8 inch
- Active Display Area527.04 (H) mm × 296.46 (V) mm
- Resolution1920 × 1080@60Hz
- BacklightE-LED
- Pixel Pitch0.2745 (H) mm × 0.2745 (V) mm
- Brightness300 cd/㎡
- Viewing Angle178°(H)/178°(V)
- Color Depth8 bit
- Contrast Ratio4000：1
- Response Time7 ms (typ)
- Refresh Rate60 Hz
- Surface TreatmentHaze 25% , 3H
- Reliability7 × 24h
- Color Gamut72% NTSC
- Interface
- Video & Audio InputHDMI × 1, 1080X720@100Hz
- Video & Audio OutputAudio out × 1
- Data Transmission InterfaceUSB2.0 × 2
- Network Interface1 × 1000Base-T/100Base-TX/10Base-T adaptive Ethernet (RJ-45)
- Control InterfaceUART × 1
- Power
- Power SupplyDC 12V, 2.5A
- Power Consumption≤ 30 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity20% to 80% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 90% RH (Non-Condensing)
- General
- Casing MaterialPlastic
- VESA75 mm × 75 mm, （4-M4 × 6mm）
- Bezel Width2 mm (top/left/right), 23.55 mm (bottom)
- Product Dimensions (W × H × D)With base: 539.7 (W) mm × 423.16 (H) mm × 196 (D) mm (21.25» × 16.66» × 7.72»)
Without base: 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm (21.25» × 12.89» × 1.71») - Package Dimensions (W × H × D)611 (W) mm × 405 (H) mm × 118 (D) mm (24.06» × 15.94» × 4.65»)
- Net Weight2.62 ± 0.5 kg (5.78 ± 1.1 lb.)
- Gross Weight3.82 ± 0.5 kg (8.42 ± 1.1 lb.)
- Packing ListMonitor ×1, base assembly ×1, base screw (hex socket) ×1, hex wrench ×1, adapter (12V 3A) ×1, mouse (1.5m) ×1, HDMI cable (1.5m) ×1, user manual ×1, multilingual manual ×1
- SpeakerSpeaker × 2 (4Ω , 2W)
- Remarks*The base is included by default.
*The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
