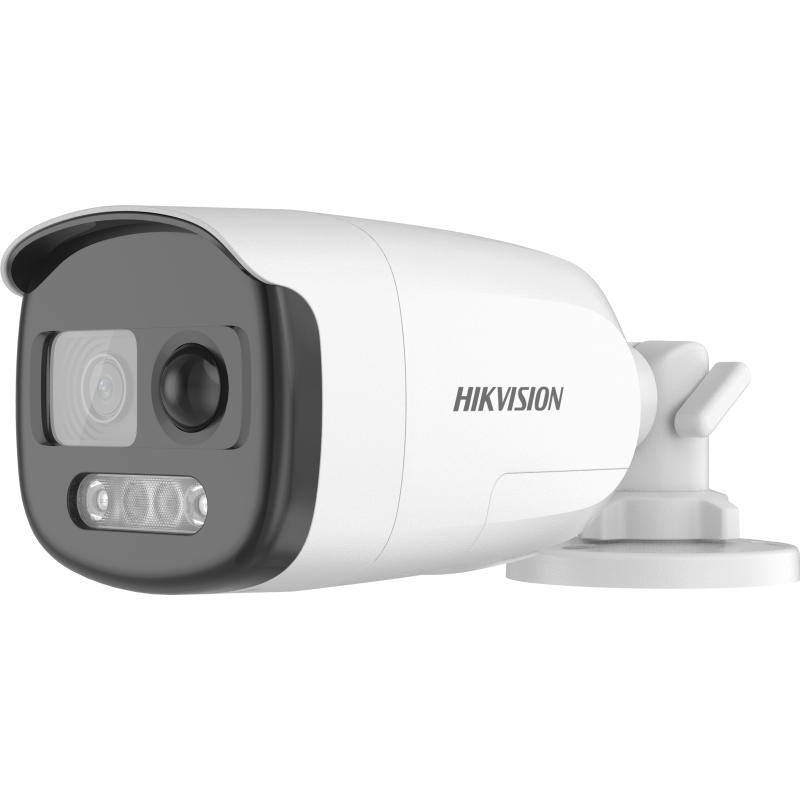

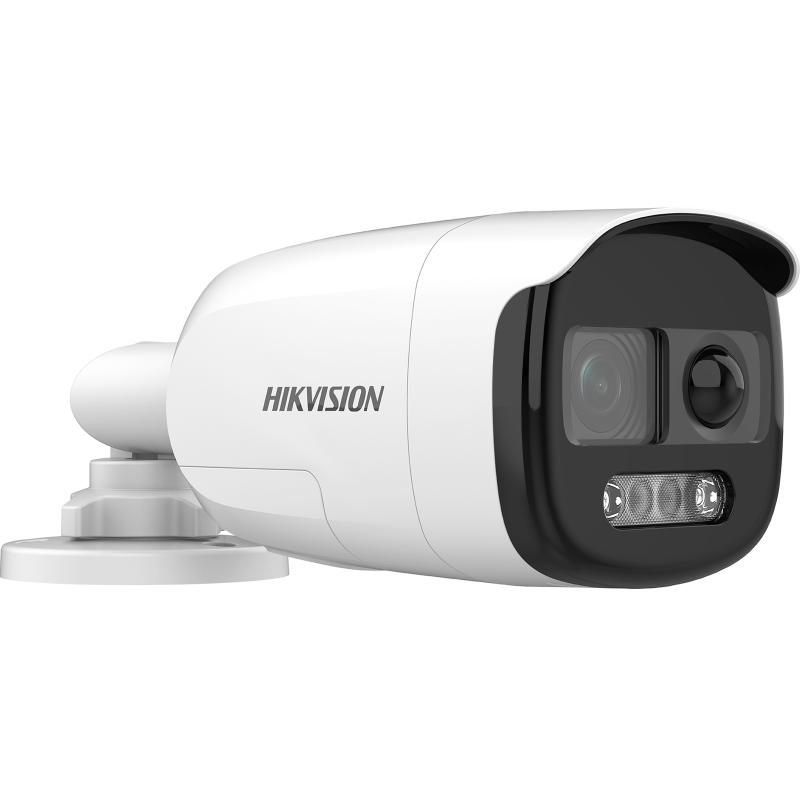

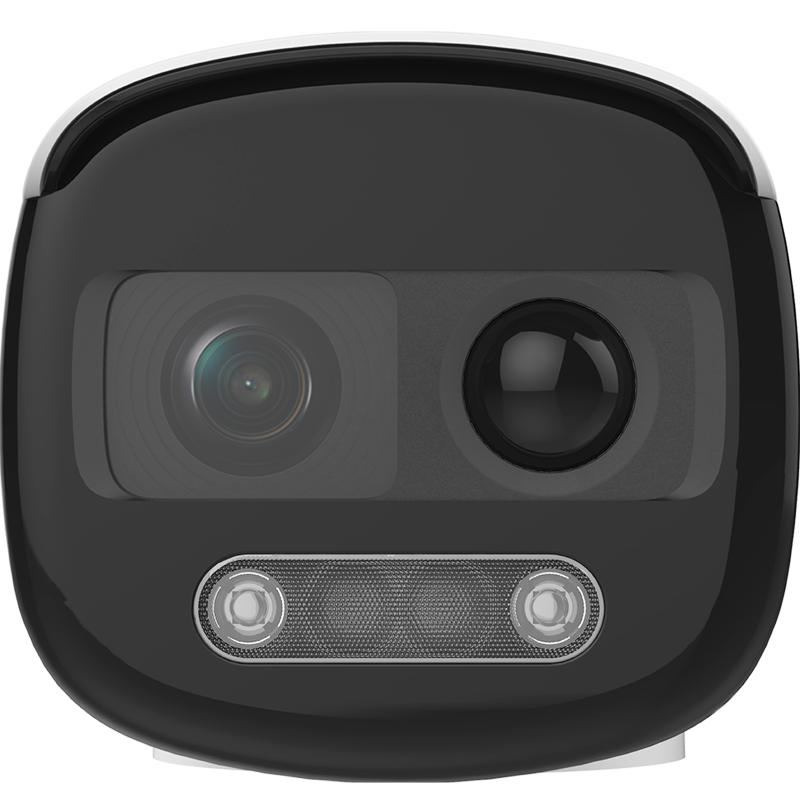

Hikvision DS-2CE12UF3T-PIRXO

Image Sensor

8 MP CMOS

Max. Resolution

3840 (H) × 2160 (V)

Min. Illumination

0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s

Day & Night

24/7 Color Imaging

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Signal System

PAL/NTSC

Lens Type

2.8 mm, 3.6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 108°, vertical FOV: 57°, diagonal FOV: 127°;3.6 mm, horizontal FOV: 91°, vertical FOV: 45°, diagonal FOV: 110°

Lens Mount

M16

Supplement Light Type

White Light

Supplement Light Range

Up to 40 m

Smart Supplement Light

Yes

Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

Image Settings

AGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light

Frame Rate

8 MP@12.5 fps/15 fps, 5 MP@20 fps, 1080P@25 fps/30 fps

Day/Night Mode

Color

Wide Dynamic Range (WDR)

≥130 dB

Image Enhancement

WDR;BLC;HLC;Global;HLS

Privacy Mask

4 programmable privacy masks

Noise Reduction

3D DNR/2D DNR

White Balance

Auto/Manual

White Light

Auto/Off

PIR Range

11 m

PIR Angle

110°

Video Output

1 HD analog output

Alarm

1 line out;flashing light alarm (white)

Motion Detection

4 programmable motion areas

Power

12 VDC ± 25%, max. 6.7 W;*You are recommended to use one power adapter to supply the power for one camera.

Material

Front cover: Metal, Main body: Plastic

Dimension

82.6 mm × 77.1 mm × 213.2 mm (3.25″ × 3.04″ × 8.39″)

Weight

Approx. 482 g (1.06 lb.)

Operating Condition

-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)

Communication

HIKVISION-C

Language

English

Protection

IP67
