По запросу
Запрос цены- Devices and Resources
- Video Management300ch by default, can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)
- Access ControlsNot included; can be expanded into 1024 (Including Doors and Outdoor Station)
- Indoor StationNot included; can be expanded into 5000
- ANPR CamerasNot included; can be expanded into 1024ch
- Lanes of Entrance & ExitNot included, can be expanded into 40
- Cameras with Face Capture FunctionNot included; can be expanded into 3000ch
- Alarm PanelNot included; can be expanded into 1024
- Smart WallsNot included; can be expanded into：Smart Walls：32；Decoding devices：32
- AttendanceNot included, can be expanded by extra license
- Hardware Specifications
- CPUE-2434(3.4 GHz-5.0 GHz,12 MB Cache， 4 Cores,8 Threads )
- Memory
Standard Config：1 × 16GB UDIMM，4400MT/s
Scalability：4 × 128GB UDIMM
- Hard DisksStandard Config：2× 2TB 7.2K SATA Hot-plug HDD (RAID_1)Slots: 4 x 3.5-inch SAS/SATA (HDD/SSD) slots (Empty slots do not include hard drive bays by default)
- Storage ControllerS160 with OS software Raid (support RAID 0/1)
- Supported Operating SystemsWinSvr2022 multilingual version pre-installed
- PCIe SlotsUp to 2 PCIe Gen4 slots on the Gen4 Riser： Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
- Management
- Remote ManageiDrac9 Enterprise
- OpenManage™ SoftwareSupport OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)
- Integrations and Connections
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible;
Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus
- SecuritySupport Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)

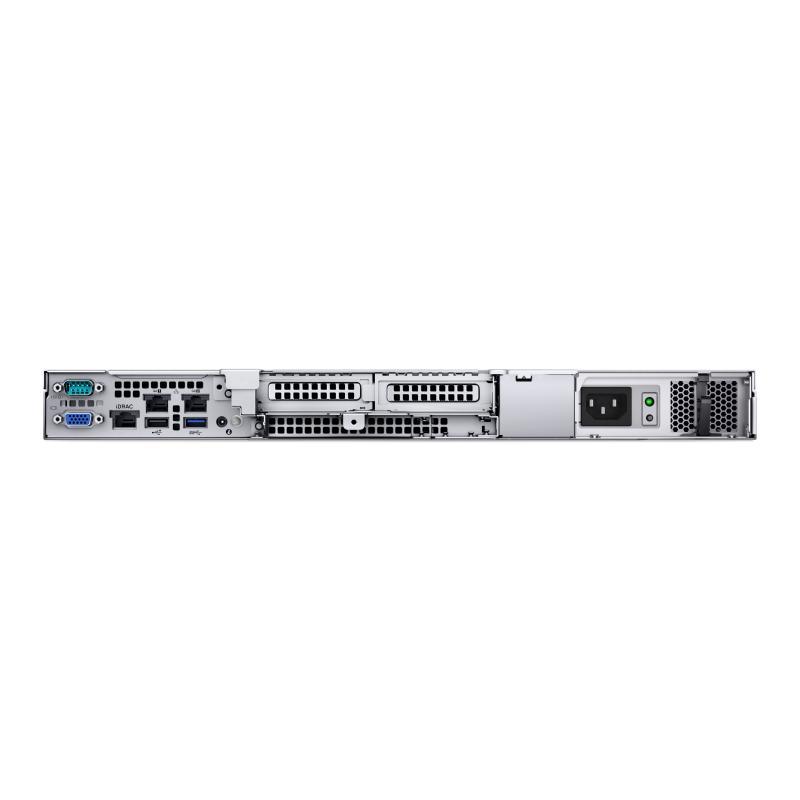

- Ports
- USB 3.00（Front）+1（Rear）
- USB 2.01（Front）+1（Rear）
- Ethernet Port2 x LAN 10/100/1000
- VGA1
- iDRAC Direct (Micro-AB USB) Port1
- iDRAC Ethernet Port1
- Manager Port1
- General
- Net Weight13.23 kg (29.17 lb)
- Gross Weight25.0 kg (55.11 lb)
- Dimension (W × H × D)42.8 mm × 482.00 mm × 598.9 mm (1.68» × 18.97» × 23.57»)
- Package Dimensions (W × H × D)595.00 mm × 251.00 mm × 923.00 mm (23.43» × 9.88» × 36.34»)
- Operating Temperature10 °C to 35 °C (50 °F to 95 °F)
- Storage Temperature-40 °C to 65 °C (-40 °F to 149 °F)
- Operating Humidity8% to 80% (no condensation)
- Storage Humidity5% to 95% (no condensation)
- Power Supply600 W，50/60 Hz，100-240 VAC (Auto adjustment)，7.1-3.6 A
- Form Factor1U Rack
