Новинка

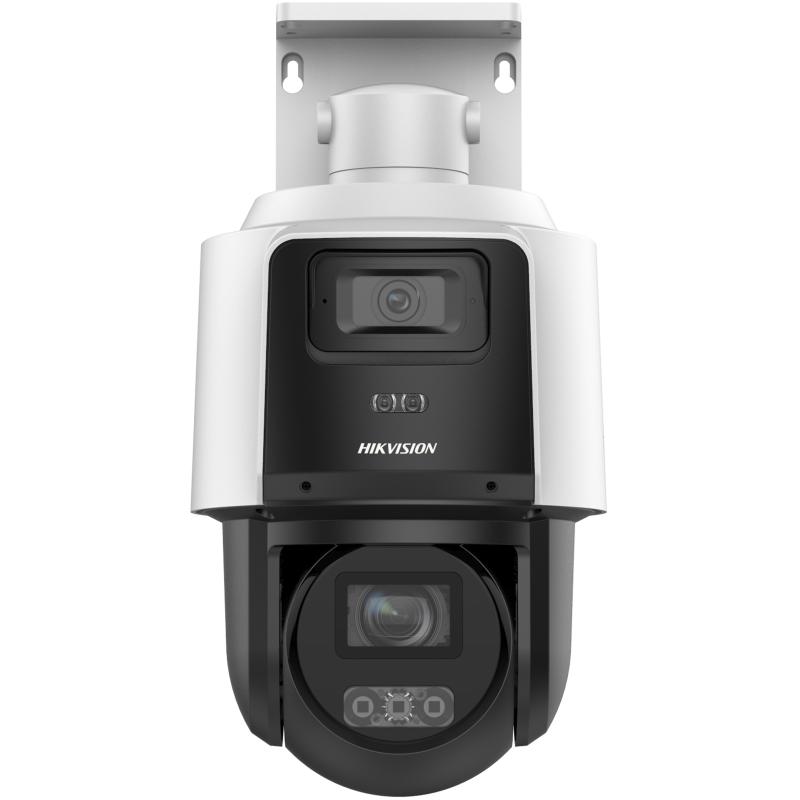

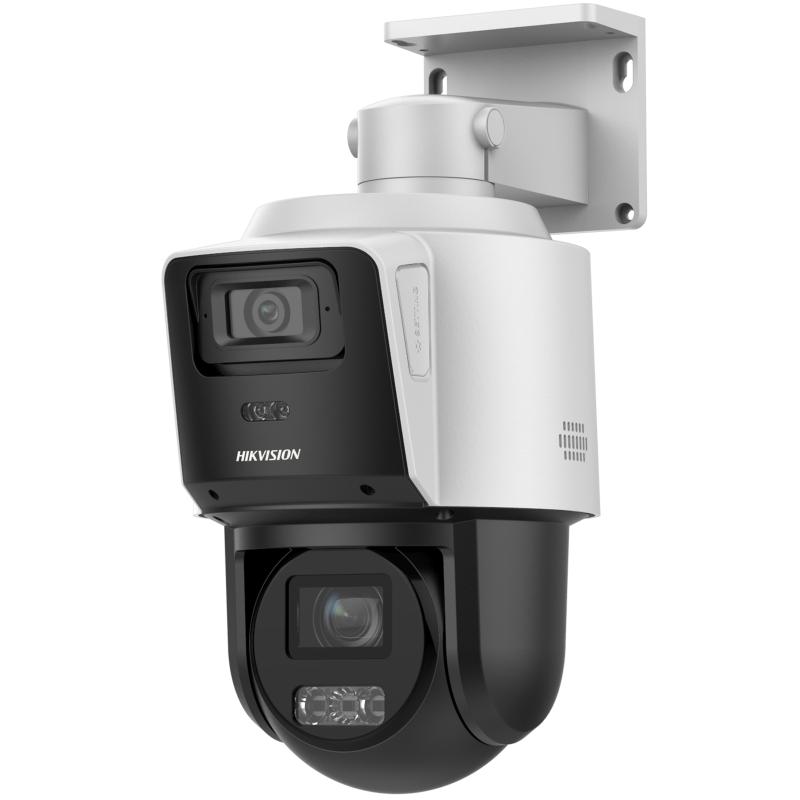

Сетевая PTZ-камера TandemVu 2MP+2MP с 10-кратным POE-увеличением
Сетевая PTZ-камера TandemVu 2MP+2MP с 10-кратным POE-увеличением
По запросу
Запрос цены- Camera
- Image Sensor[Bullet channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
- Min. Illumination
[Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)，B/W: 0.005 Lux @ (F1.6，AGC ON), 0 Lux with IR;
[PTZ channel]: Color: 0.01 Lux @ (F1.86, AGC ON), B/W: 0.005Lux @ (F1.86, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/30,000 s
- Slow Shutteryes
- Day & NightICR
- Zoom[PTZ channel] 10 × optical, 16 × digital
- Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
- Lens
- Focusauto,manual,semi-auto
- Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 5.76 to 57.6 mm, 10 × optical
- Zoom Speed[PTZ channel]: approx. 3.3 s
- FOV[Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 136.4°, [PTZ channel] horizontal field of view: 50° to 7.5°, vertical field of view: 31° to 4°, diagonal field of view: 58.8° to 8.5°
- Aperture[Bullet channel]: F1.6; [PTZ channel]: F1.86 to F2.65
- Illuminator
- Supplement Light Type[Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR
- Smart Supplement LightYes
- Supplement Light Range
[PTZ channel]: IR Distance: up to 80 m;
[Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m
- PTZ
- Movement Range (Pan)0° to 350°
- Movement Range (Tilt)[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°
- Pan Speed pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s
- Tilt Speedtilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
- Proportional Panyes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Power-off Memoryyes
- Park Actionpreset,patrol scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskdome reboot,preset,patrol scan,dome adjust,aux output
- Video
- Region of Interest (ROI)1 fixed regions for main stream
- Main Stream
[Bullet channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
[Bullet channel]:
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
[PTZ channel]:
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream
[Bullet channel]:
50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360)
60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)
[PTZ channel]:
50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360)
60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)
- Video CompressionH.265,H.264,MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typemain profile,baseline profile,high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)yes
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC
- Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
- Audio Sampling RateMP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz
- Environment Noise Filteringyes
- Network
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- Network StorageNAS (NFS, SMB/ CIFS),ANR, ANR
- ProtocolsTCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
- Simultaneous Live View20
- User/Host32
- Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
- ClientiVMS-4200,Hik-Connect
- Web BrowserIE8+, Chrome31 to 44, Firefox30 to 51, Safari8.0+
- Image
- Image Settingssharpness, saturation, brightness, contrast
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- DefogDigital defog
- Day/Night Switchday, night, auto, scheduled-switch
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask[Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks
- Regional Focus[Bullet channel] No, [PTZ channel] Yes
- Regional Exposure[Bullet channel] No, [PTZ channel] Yes
- Image Parameters SwitchYes
- Interface
- Built-in Microphone1 built-in microphone
- Built-in Speaker1 built-in speaker
- Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-board StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
- Resetyes
- Event
- Basic EventMotion detection,video tampering alarm,exception,alarm input and output
- Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
- Linkage [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- General
- General Functionmirror,watermark,IP address filter,password protection
- Power12 VDC, max. 13.5 W,PoE+
- Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
- MaterialPC
- Dimension311.5 mm × 223.5 mm × 156 mm (12.26″ × 8.80″ × 6.14″)
- Approx. 1.37 kg (3.02 lb.)
- Approval
- ProtectionIP66 Standard, Surge Protection and Voltage Transient Protection
