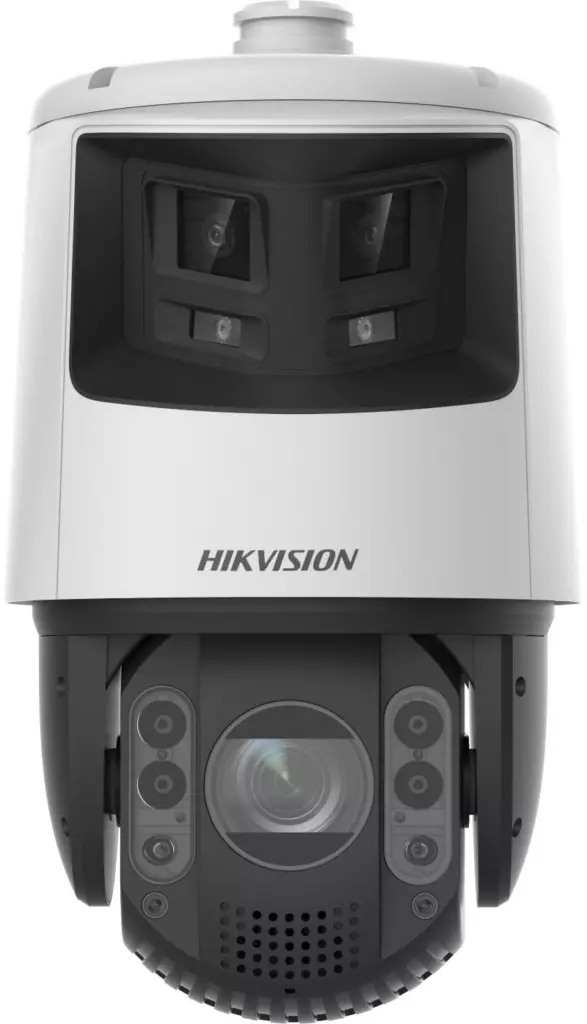

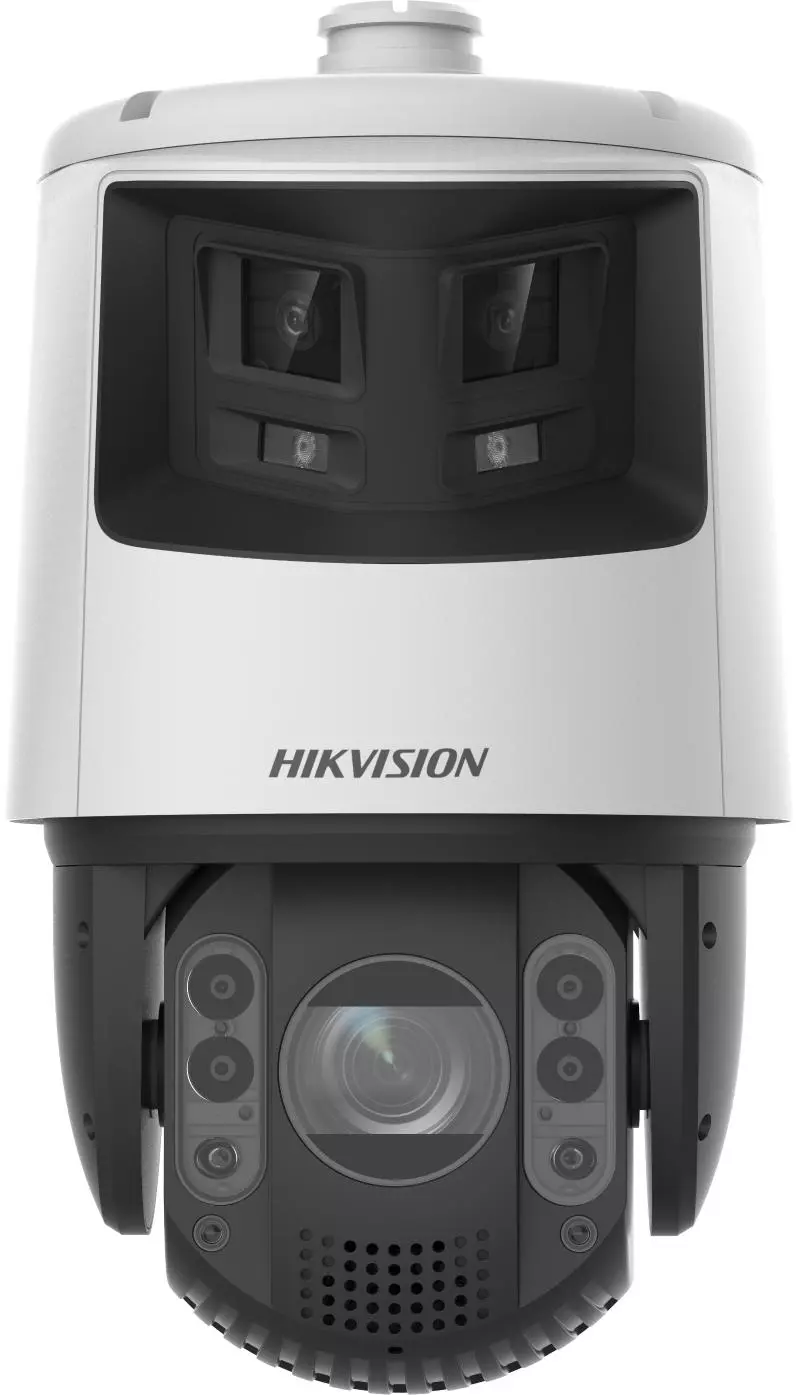

Hikvision DS-2SE7C425MWG-EB/26(F0)

Image Sensor

[Panoramic channel] 1/2.5″ Progressive Scan CMOS, [PTZ channel] 1/2.8″ Progressive Scan CMOS

Max. Resolution

[Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440

Min. Illumination

[PTZ channel] Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light

Shutter Speed

1 s to 1/30,000 s

Day & Night

IR cut filter

Zoom

25 × optical,16 × digital

Slow Shutter

yes

HLC

yes

3D DNR

yes

Focal Length

[Panoramic channel] 2.8 mm, [PTZ channel] 4.8 to 120 mm

FOV

[Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5°, [PTZ channel] horizontal field of view: 55° to 3°

Focus

Auto,semi-auto,manual

Aperture

[Panoramic channel] F1.0, [PTZ channel] F1.6

Zoom Speed

[Panoramic channel] No, [PTZ channel] approx. 3.6 s

Supplement Light Range

IR distance: up to 200 m

White Light Distance

Panoramic channel: 30 m

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90°

Pan Speed

Pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

Yes

Presets

300

Preset Freezing

Yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Park Action

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Scheduled Task

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,aux output,dome adjust

Power-off Memory

Yes

Main Stream

[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[Panoramic channel] 50 Hz: 25 fps (3632 × 1632, 3680 × 1656), 60 Hz: 30 fps (3632 × 1632, 3680 × 1656)

Sub-Stream

[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),[Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 30 fps (1200 × 536, 960 × 432)

Third Stream

[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16384 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

yes

Region of Interest (ROI)

fixed region

Audio Compression

G.711,G.722.1,G.726,MP2L2,AAC-LC,PCM,MP3

Audio Bit Rate

32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)

Audio Sampling Rate

8 kHz,16 kHz,32 kHz,48 kHz

Environment Noise Filtering

yes

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets,SRTP

Simultaneous Live View

20

API

ISUP,SDK,ISAPI,Open Network Video Interface (Profile S, Profile G, Profile T)

User/Host

32

Security

Password protection,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),IP address filter

Network Storage

NAS (NFS, SMB/CIFS),auto network replenishment (ANR)

Client

iVMS-4200,HikCentral Pro,Hik-Connect

Web Browser

IE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge79.0.309.65+

Image Parameters Switch

Yes

Image Settings

saturation, brightness, contrast, sharpness

Day/Night Switch

Day,night,auto,schedule

Wide Dynamic Range (WDR)

[Panoramic channel] Digital WDR, [PTZ channel] 120 dB

SNR

＞52dB

Defog

yes

Image Stabilization

yes

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

24 programmable polygon privacy masks, mask color or mosaic configurable

Regional Focus

yes

Regional Exposure

yes

Ethernet Interface

1 RJ45 10/100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, ;1 output (line out), line level, output impedance: 600 Ω

Alarm

2 input(s), 1 output(s)

Reset

Yes

Basic Event

Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)

Smart Event

Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan),audible warning,white light flashing

Smart Tracking

Manual tracking,auto-tracking

Smart Linkage

panorama linkage, tracking takeover, track in turn

Face Capture

Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

Power

24 VAC, Max. 60 W, Hi-PoE

Dimension

Ø222.3 mm × 387.2 mm (Ø8.75″ × 15.2″)

Weight

Approx. 6 kg (13.23 lb.)

Material

ADC12,Plastic,PC+10%GF

Operating Condition

-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

General Function

mirror,watermark,password protection,IP address filter

Demist

Yes

Protection

IP66 (IEC 60529-2013)
