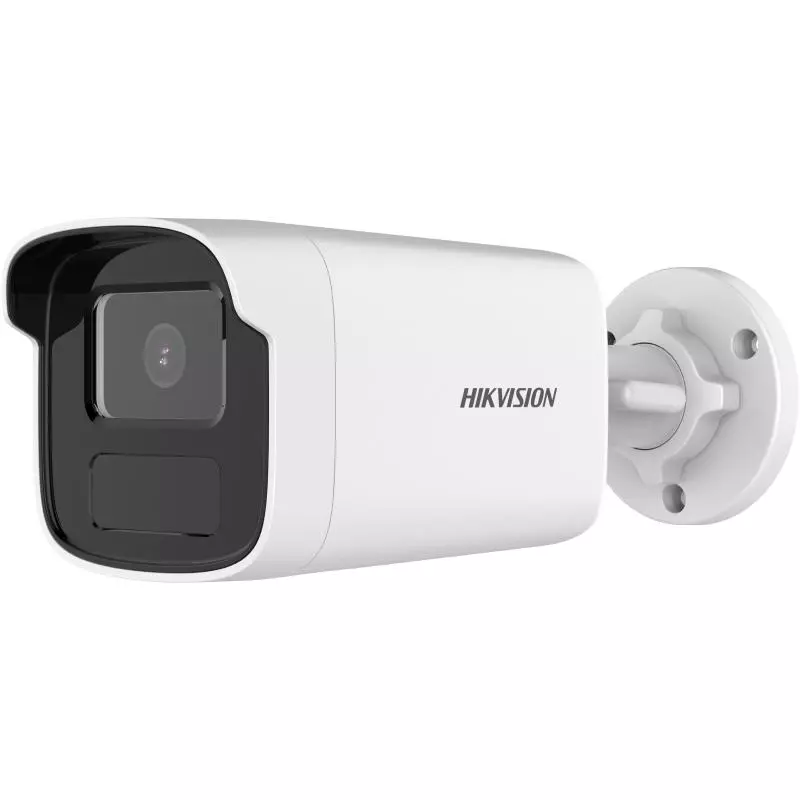

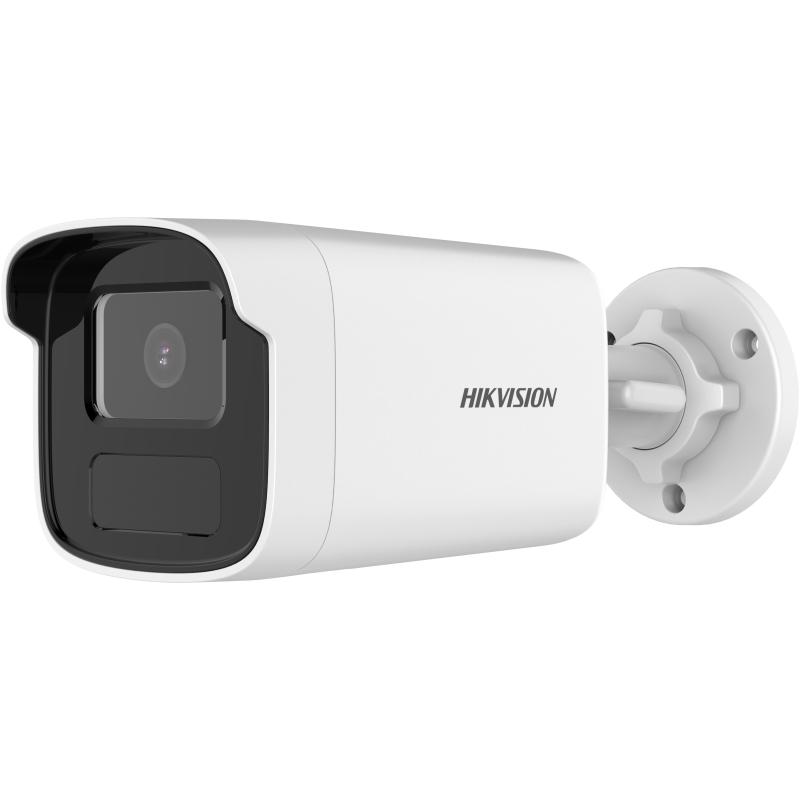

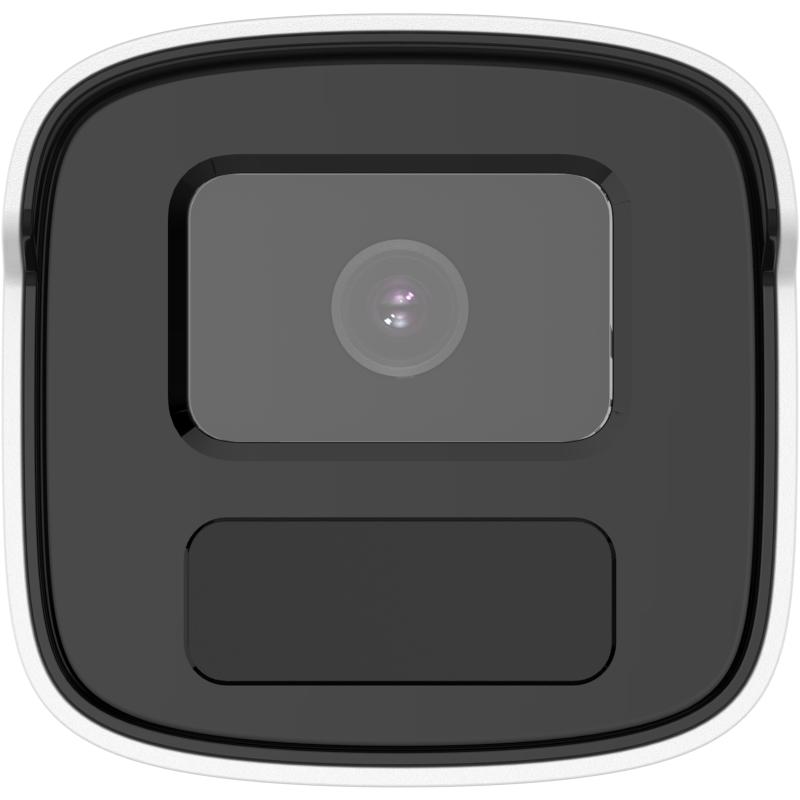

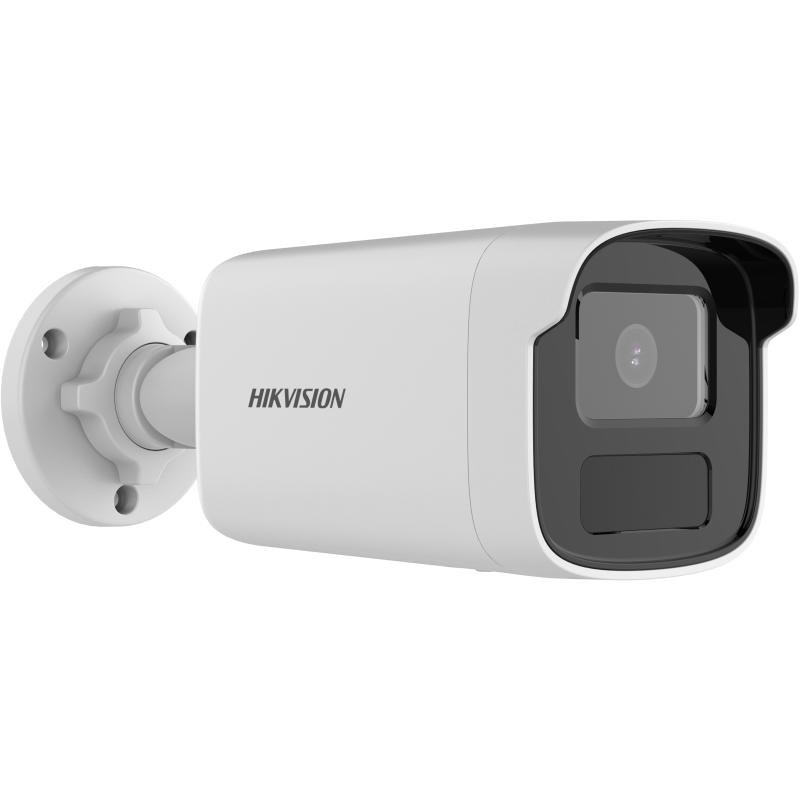

Hikvision DS-2CD1T23G0-I(UF)

Image Sensor

1/2.7″ Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens Type

Fixed focal lens, 4 and 6 mm optional

Focal Length & FOV

4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°;6 mm, horizontal FOV 54.6°, vertical FOV 30.7°, diagonal FOV 62.7°

Lens Mount

M12

Iris Type

Fixed

Aperture

4 mm, F2.0;6 mm, F1.6

DORI

4 mm, D: 51.1 m, O: 20.3 m, R: 10.2 m, I: 5.1 m;6 mm, D: 85.3 m, O: 33.9 m, R: 17.1 m, I: 8.5 m

Supplement Light Type

IR

Supplement Light Range

Up to 50 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.264+/H.265/H.264;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Audio Compression

-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate

-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Audio Sampling Rate

-UF: 8 kHz/16 kHz

Environment Noise Filtering

-UF: Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+;Plug-in free live view: Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC, 3D DNR

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

-UF: Built-in memory card slot, support microSD card, up to 256 GB

Built-in Microphone

-UF: Yes

Hardware Reset

-UF: Yes

Basic Event

Motion detection, video tampering alarm, exception

Linkage

Upload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug;PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Camera Material

Front cover: metal, body: plastic, bracket: metal

Camera Dimension

83.7 mm × 80.7 mm × 205.6 mm (3.3″ × 3.2″× 8.1″)

Package Dimension

260 mm × 125 mm × 125 mm (10.2″ × 4.9″ × 4.9″)

Camera Weight

Approx. 420 g (0.9 lb.)

With Package Weight

Approx. 668 g (1.5 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Web Client Language

English, Ukrainian

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

EMC

FCC-SDoC: 47 CFR Part 15, Subpart B;;CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014;;KC: KN 32: 2015, KN 35: 2015

Safety

UL: UL 62368-1;;CB: IEC 62368-1: 2014+A11;;CE-LVD: EN 62368-1: 2014/A11: 2017;;BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU; ;WEEE: 2012/19/EU; ;Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
