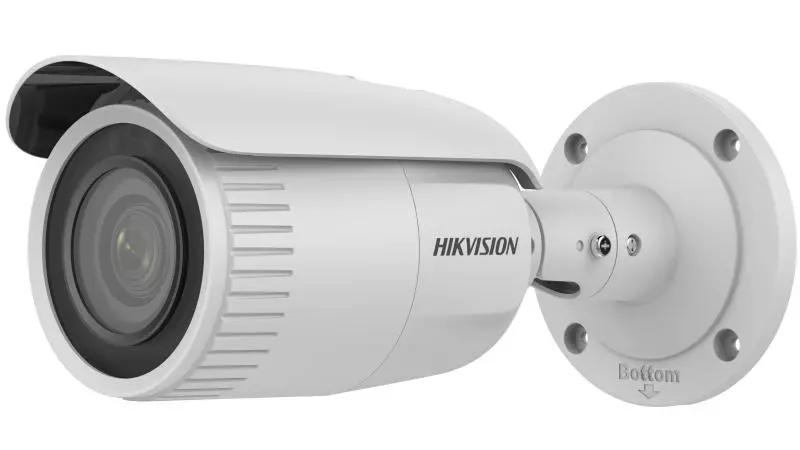

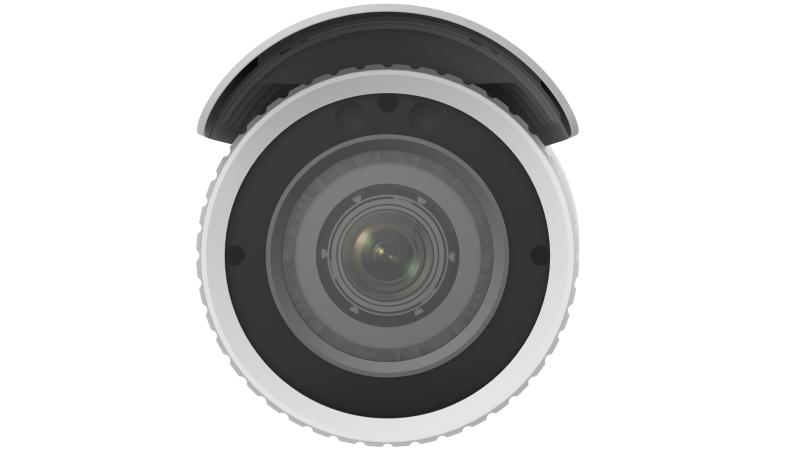

Hikvision DS-2CD1643G0-I(Z)

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Wide Dynamic Range

120 dB

Day & Night

IR Cut Filter;

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Lens Type

Varifocal lens, motor-driven lens, 2.8 to 12 mm;

Focal Length & FOV

2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°

Lens Mount

Ø14;

Iris Type

Fixed

Aperture

F1.6

IR Wavelength

850 nm

IR Range

Up to 50 m;

Main Stream

50 Hz: 20 fps (2560 × 1440); 25 fps (1920 × 1080, 1280 × 720);60 Hz: 20 fps (2560 × 1440); 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Audio Compression

-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate

-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Audio Sampling Rate

-S: 8 kHz/16 kHz

Environment Noise Filtering

-S: Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+;Plug-in free live view: Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, Schedule, Day, Night;

Image Enhancement

BLC, 3D DNR

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD card, up to 256 GB

Audio

-S: ;1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

-S: 1 input,1 output, max. 12 VDC, 30 mA;

Reset Key

Yes

Basic Event

Motion detection, video tampering alarm, exception

Linkage

Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

Power

12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug;PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W

Camera Material

Metal

Camera Dimension

Ø105 mm × 244.4 mm (Ø4.1″ × 9.6″)

Package Dimension

315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)

Camera Weight

Approx. 1035 g (2.3 lb.)

With Package Weight

Approx. 1550 g (3.4 lb.)

Storage Conditions

-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian;

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

EMC

FCC SDoC (47 CFR Part 15, Subpart B);;CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);;RCM (AS/NZS CISPR 32: 2015); ;IC VoC (ICES-003: Issue 6, 2016);;KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1);;CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);;CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);;BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Environment

CE-RoHS (2011/65/EU);;WEEE (2012/19/EU);;Reach (Regulation (EC) No 1907/2006)

Electrical Safety Protection

IP67 (IEC 60529-2013)
