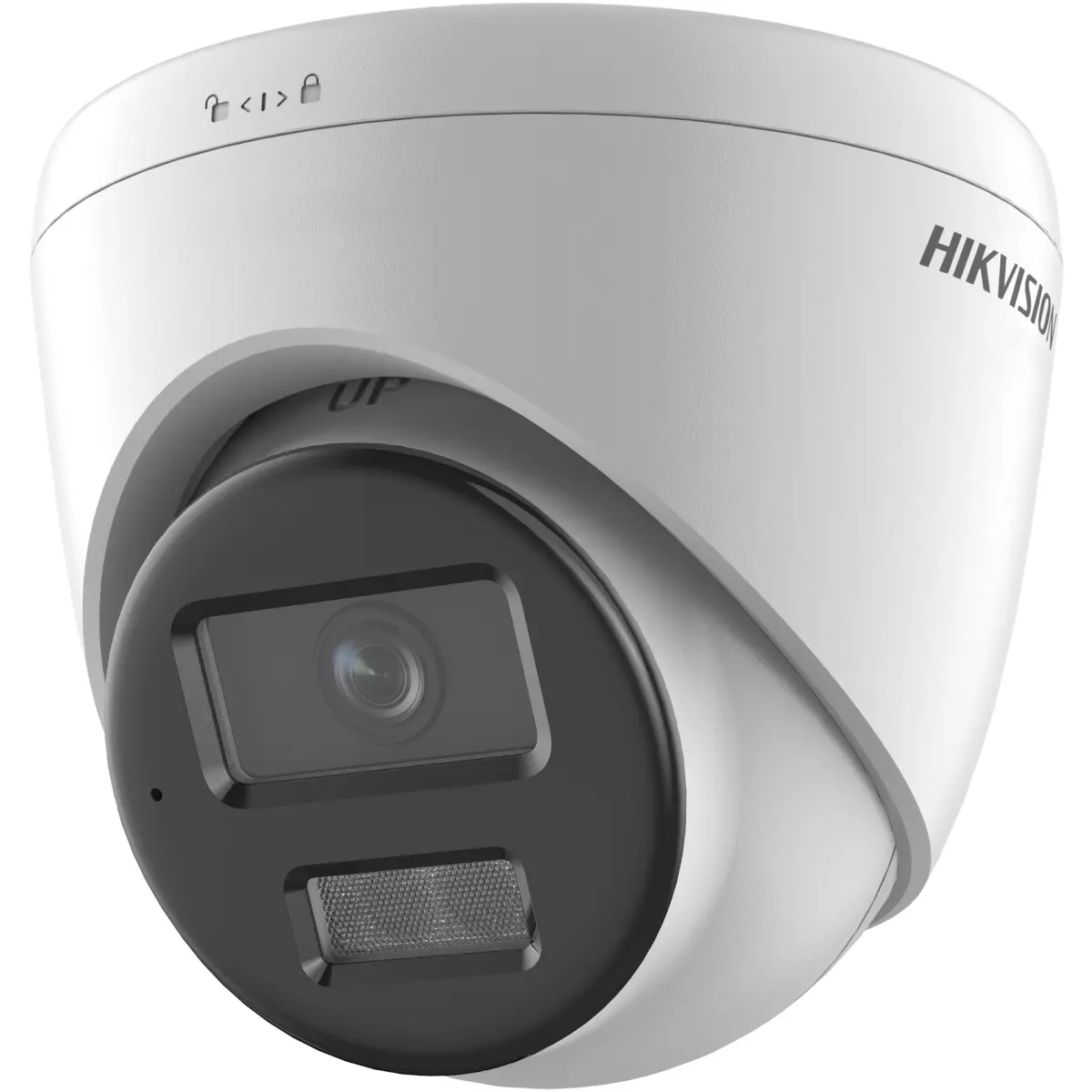

Hikvision DS-2CD1321G2-LIU

Name: Hikvision DS-2CD1321G2-LIU
Brand: Hikvision
SKU: HC-DS-2CD1321G2-LIU
Availability: InStock

Артикул: HC-DS-2CD1321G2-LIU

Hikvision DS-2CD1321G2-LIU — 2 Мп 2.8 мм турельная камера

Модель: Hikvision DS-2CD1321G2-LIU
Тип: Турельная камера
Технология: IP (сетевая)
Разрешение: 2 Мп
Объектив: 2.8 мм (фиксированный)
Оригинальная продукция Hikvision, гарантия Hikcenter.az

Быстрая доставка

По Баку — сегодня
По Азербайджану 1-2 дня

Официальная гарантия

до 36 месяцев
от производителя

100% оригинал

Официальный дистрибьютор Hikvision

Тех. поддержка

Помощь в подборе и настройке оборудование

В наличии на складе

доставка за 2 часа

76,00 ₼

Купить в рассрочку

Цена для партнеров

Запросить скидку

Помощь специалиста

Сравнить

Затрудняетесь в выборе оборудования?

Camera
Image Sensor
1/2.9″ Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.2

DORI
DORI
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
IR: up to 20 m
White Light: up to 15 m
Smart Supplement Light
Yes
IR Wavelength
850 nm

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR

Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz
Audio Compression
G.711ulaw/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Privacy Mask
1 programmable polygon privacy mask
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Image Settings
Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage

NA
Built-in Microphone
Yes,1 built-in microphone
Reset Key

NA

Event
Basic Event
Motion detection (support alarm triggering by specified target type (human)), exception
Linkage
Notify surveillance center, send email, trigger capture

General
Power
12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material
Plastic
Dimension
Ø109.9 mm × 103.6 mm (Ø4.3″ × 4.1″)
Package Dimension
134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
Approx. 300 g (0.7 lb.)
With Package Weight
Approx. 460 g (1.0 lb.)
Storage Conditions
-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat,mirror,password protection,password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
Safety

CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013

Camera
Image Sensor
1/2.9″ Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.2

DORI
DORI
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
IR: up to 20 m
White Light: up to 15 m
Smart Supplement Light
Yes
IR Wavelength
850 nm

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR

Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz
Audio Compression
G.711ulaw/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Privacy Mask
1 programmable polygon privacy mask
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Image Settings
Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes,1 built-in microphone
Reset Key
Yes

Event
Basic Event
Motion detection (support alarm triggering by specified target type (human)), exception
Linkage
Upload to memory card, send email, notify surveillance center, trigger recording, trigger capture

General
Power
12 VDC ± 25%, 0.42 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material
Plastic
Dimension
Ø109.9 mm × 103.6 mm (Ø4.3″ × 4.1″)
Package Dimension
134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
Approx. 300 g (0.7 lb.)
With Package Weight
Approx. 460 g (1.0 lb.)
Storage Conditions
-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat,mirror,password protection,password reset via email

Approval
EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
KC: KN32: 2015, KN35: 2015
Safety

CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
