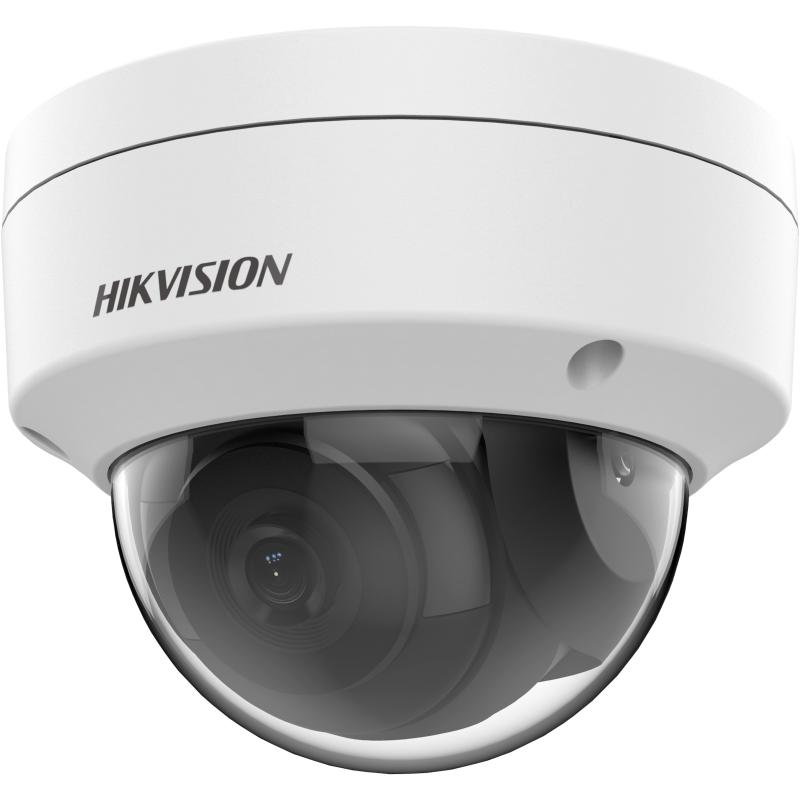

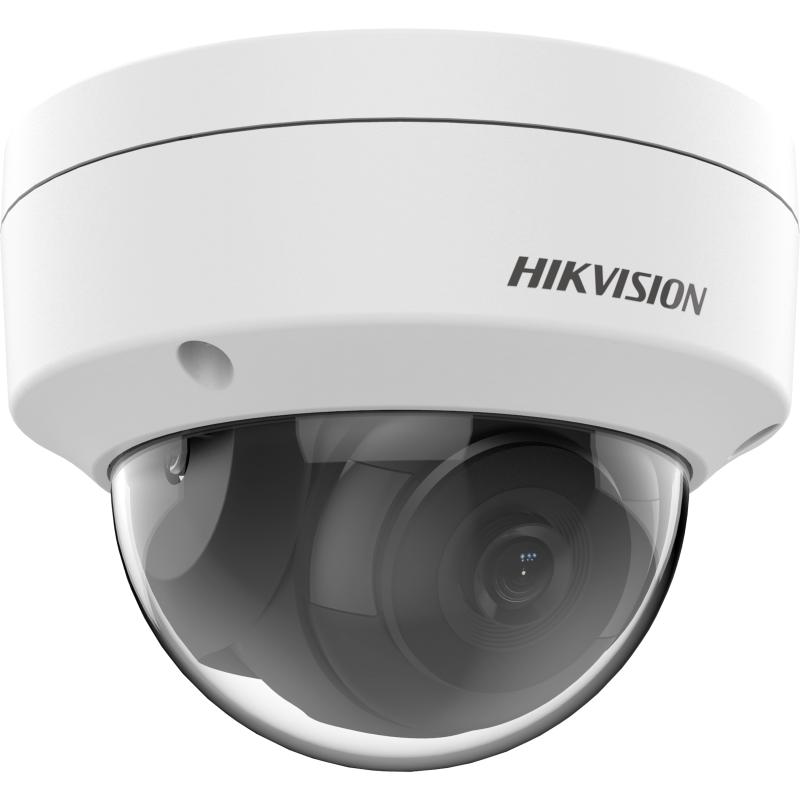

Hikvision DS-2CD1143G0-I

Image Sensor

1/3″ progressive scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100, 000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°

Focal Length & FOV

2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°;4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

Lens Mount

M12

Focus

Fixed

Aperture

F2.0

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Iris Type

Fixed

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

IR Wavelength

850 nm

Smart Supplement Light

Yes

Main Stream

50 Hz: ;20 fps (2560 × 1440);25 fps (1920 × 1080, 1280 × 720);60 Hz: ;20 fps (2560 × 1440);30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11, ;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, Schedule, Day, Night

Wide Dynamic Range (WDR)

120 dB

Image Enhancement

BLC, 3D DNR

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Basic Event

Motion detection, video tampering alarm, exception

Linkage

Upload to FTP, notify surveillance center, send email

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug;PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material

Base: metal, cover: plastic

Dimension

Ø111 mm × 82.4 mm (Ø 4.4″ × 3.2″)

Package Dimension

134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)

Weight

Approx. 360 g (0.8 lb.)

With Package Weight

Approx. 560 g (1.2 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Anti-banding, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
