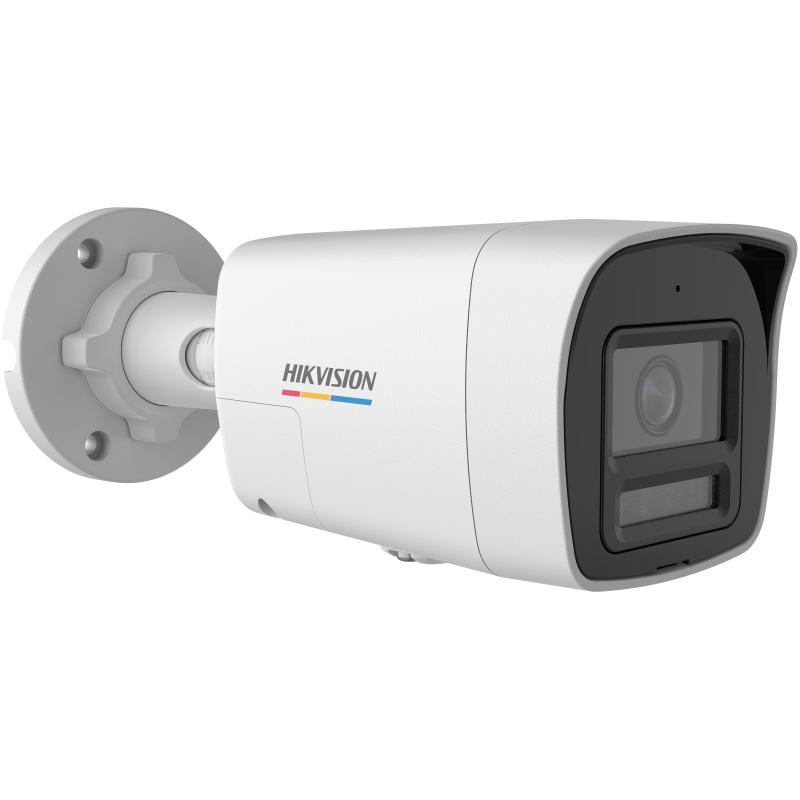

4-мегапиксельная сетевая камера MD 2.0 с фиксированным объективом типа «пуля»
4-мегапиксельная сетевая камера MD 2.0 с фиксированным объективом типа «пуля»
|
Image Sensor |
1/2.8″ Progressive Scan CMOS |
|
Max. Resolution |
1920 × 1080 |
|
Min. Illumination |
Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light |
|
Shutter Time |
1/3 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 355° |
|
Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129°;4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103° |
|
Lens Mount |
M12 |
|
Iris Type |
Fixed |
|
Aperture |
F1.0 |
|
DORI |
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m;4 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m |
|
Supplement Light Type |
IR,White Light |
|
Supplement Light Range |
Up to 30 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile,Main Profile,High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR,VBR |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Audio Type |
Mono sound |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Audio Bit Rate |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|
Audio Sampling Rate |
8 kHz/16 kHz |
|
Environment Noise Filtering |
Yes |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK |
|
User/Host |
Up to 32 users;3 user levels: administrator, operator, and user |
|
Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|
Client |
iVMS-4200,Hik-Connect |
|
Web Browser |
Plug-in required live view: IE 10, IE 11,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|
Image Settings |
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
|
Day/Night Switch |
Day,Night,Auto,Schedule |
|
Wide Dynamic Range (WDR) |
Digital WDR |
|
SNR |
≥ 52 dB |
|
Image Enhancement |
BLC,HLC,3D DNR |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|
Built-in Microphone |
Yes,1 built-in microphone |
|
Built-in Speaker |
1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB. |
|
Reset Key |
Yes |
|
Basic Event |
Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception |
|
Linkage |
Upload to memory card, upload to FTP, trigger recording,notify surveillance center,send email,trigger capture |
|
Power |
12 VDC ± 25%, 0.55 A, max. 6.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,;PoE: IEEE 802.3af, Class 3, max. 8.0 W |
|
Material |
Front cover: metal, body: plastic, bracket: plastic |
|
Dimension |
179 mm × 69.1 mm × 67.4 mm (7.05″ × 2.72″ × 2.65″) |
|
Package Dimension |
150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″) |
|
Weight |
Approx. 320 g (0.7 lb.) |
|
With Package Weight |
Approx. 540 g (1.2 lb.) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Language |
English, Ukrainian |
|
General Function |
Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding |
|
Flashing Light |
/SRB model: Red and Blue Light;/SL model: White Light |
|
EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
|
Safety |
;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017,;BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
|
Environment |
CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006 |
|
Protection |
IP67: IEC 60529-2013 |
