Hikvision DS-2CD1023G2-I

Name: Hikvision DS-2CD1023G2-I
Brand: Hikvision
SKU: HC-DS-2CD1023G2-I
Availability: InStock

Артикул: HC-DS-2CD1023G2-I

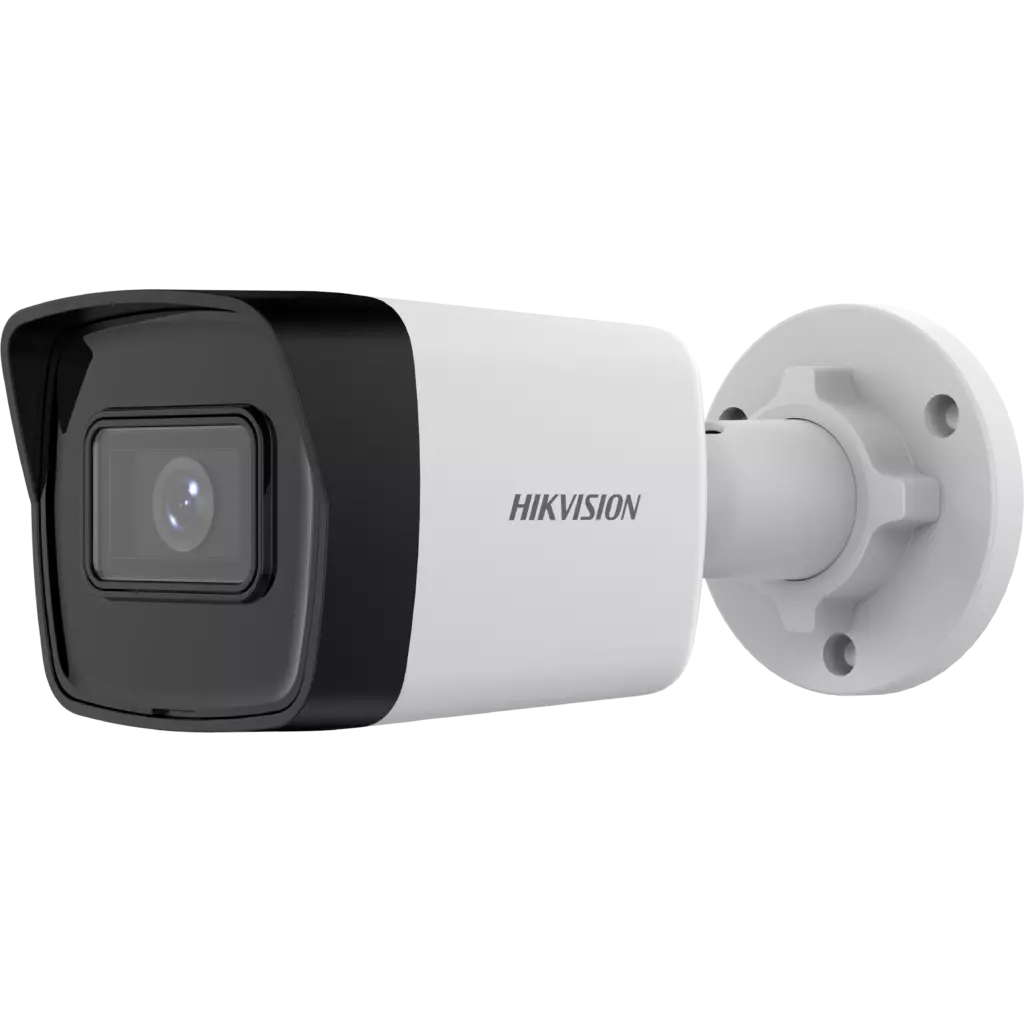

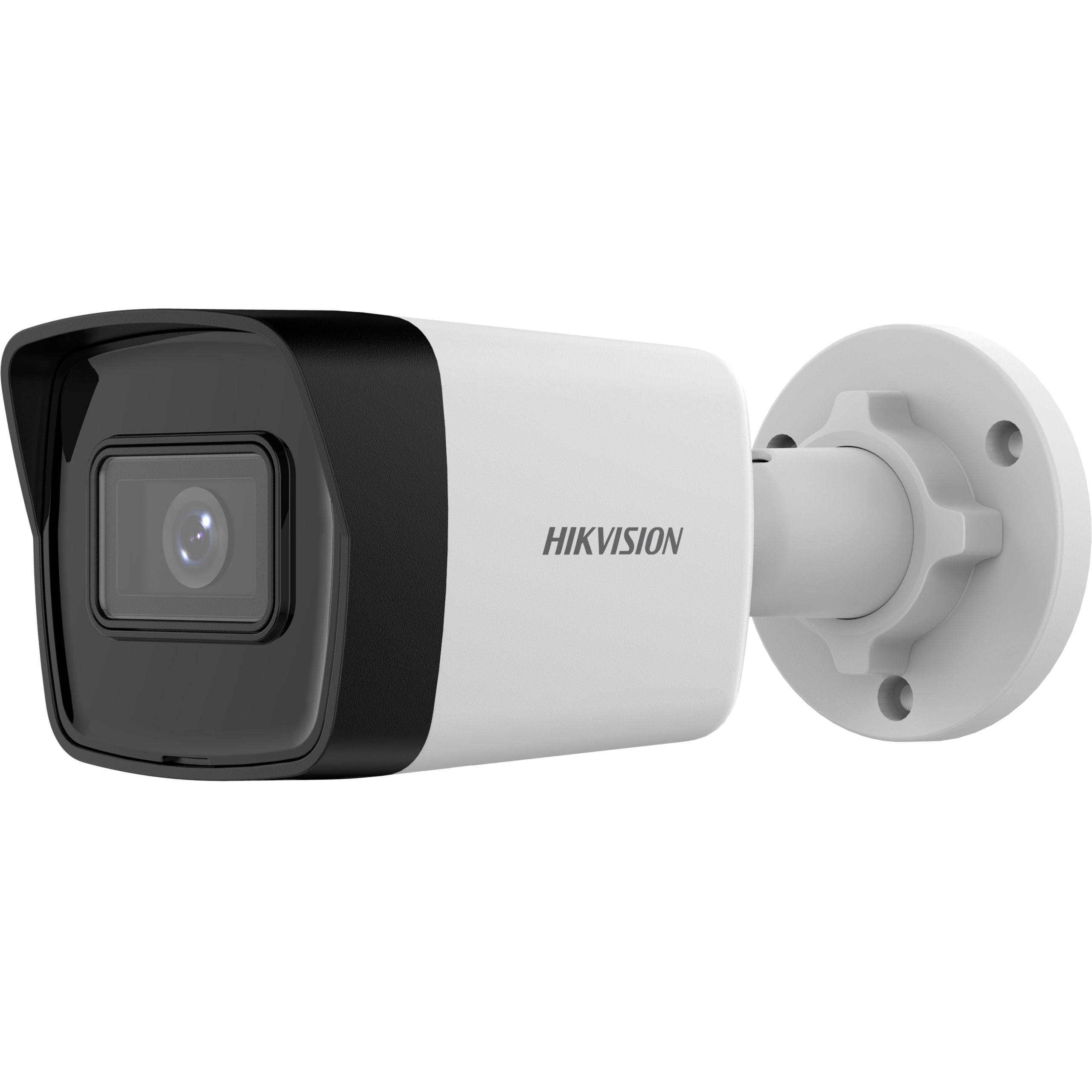

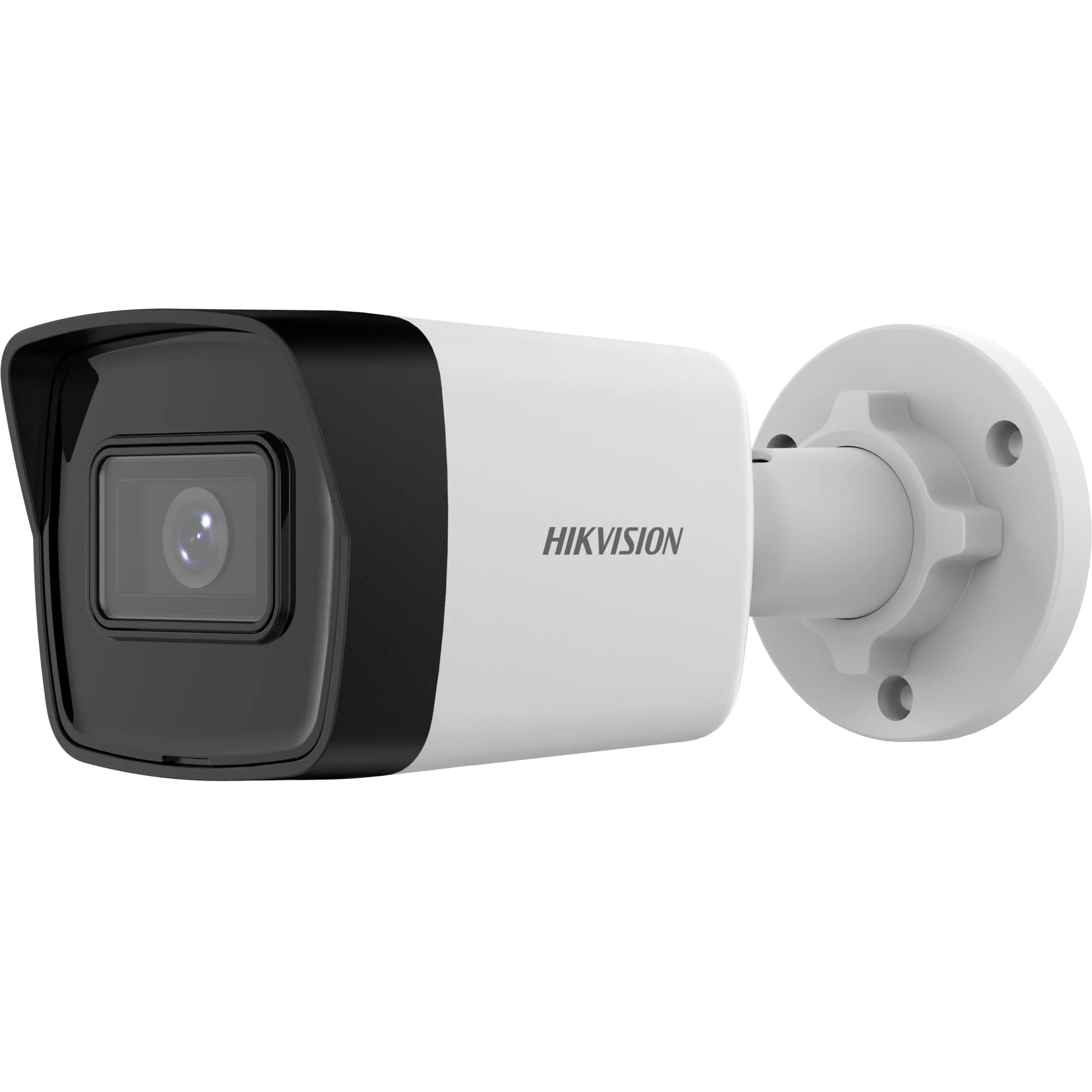

Hikvision DS-2CD1023G2-I — 2 Мп 2.8 мм ИК 30 м цилиндрическая камера

Модель: Hikvision DS-2CD1023G2-I
Тип: Цилиндрическая камера
Технология: IP (сетевая)
Разрешение: 2 Мп
Объектив: 2.8 мм (фиксированный)
ИК-подсветка: до 30 м
Оригинальная продукция Hikvision, гарантия Hikcenter.az

Быстрая доставка

По Баку — сегодня
По Азербайджану 1-2 дня

Официальная гарантия

до 36 месяцев
от производителя

100% оригинал

Официальный дистрибьютор Hikvision

Тех. поддержка

Помощь в подборе и настройке оборудование

В наличии на складе

доставка за 2 часа

85,00 ₼

Купить в рассрочку

Цена для партнеров

Запросить скидку

Помощь специалиста

Сравнить

Затрудняетесь в выборе оборудования?

Camera
Image Sensor
1/2.9″ Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 58°, diagonal FOV 123°
4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0

DORI
DORI
2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m
4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Region of Interest (ROI)
1 fixed region for main stream

Audio
Audio Type
-U: Mono sound
Environment Noise Filtering
-U: Yes
Audio Sampling Rate
-U: 8 kHz/16 kHz
Audio Compression
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone
-U: Yes
Reset Key
-F: Yes

Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage
Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material
Metal & Plastic
Dimension
170.8 mm × 66 mm × 69.1 mm (6.7″ × 2.6″ × 2.7″)
Package Dimension
216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
-I: Approx. 265 g (0.6 lb.); -IUF: Approx. 285 g (0.6 lb.)
With Package Weight
-I: Approx. 495 g (1.1 lb.); -IUF: Approx. 510 g (1.1 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
