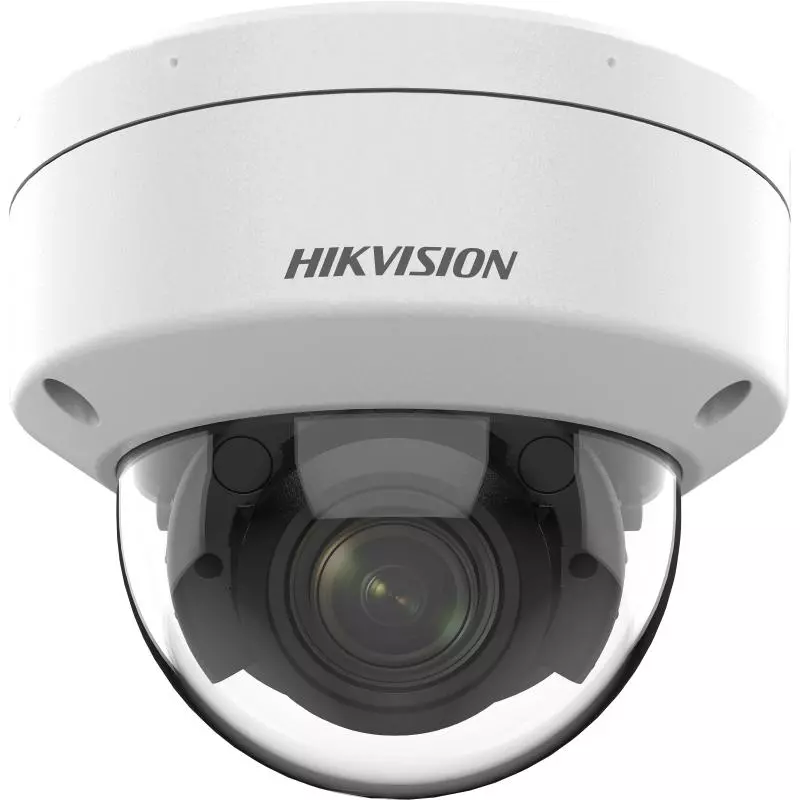

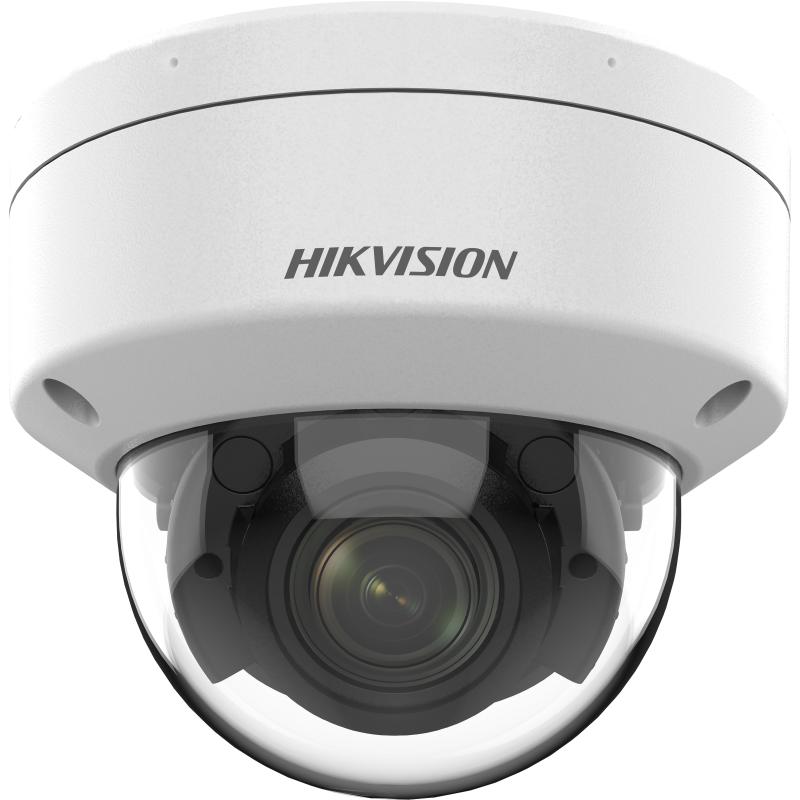

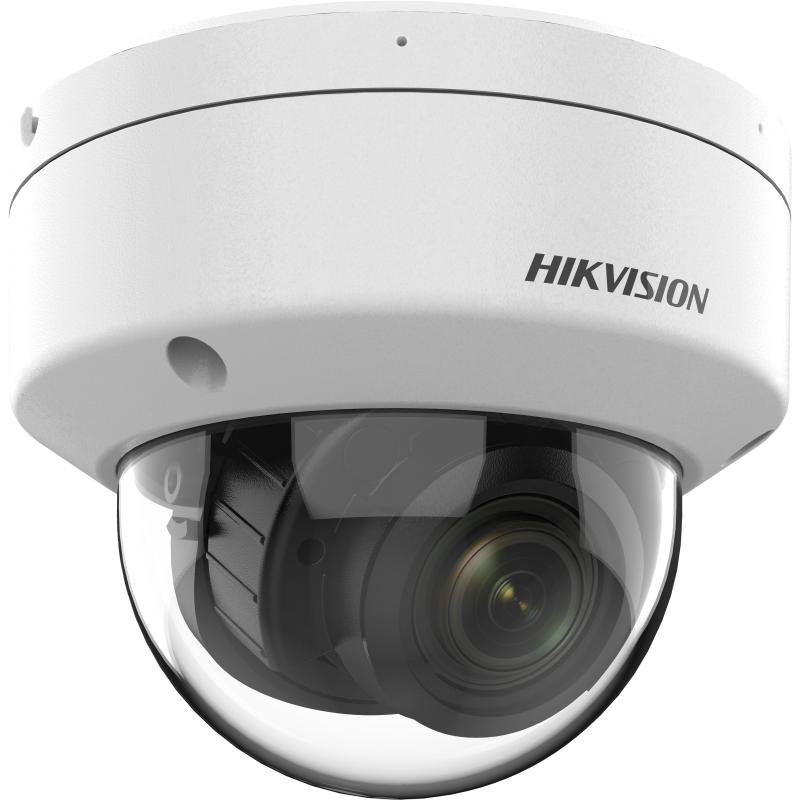

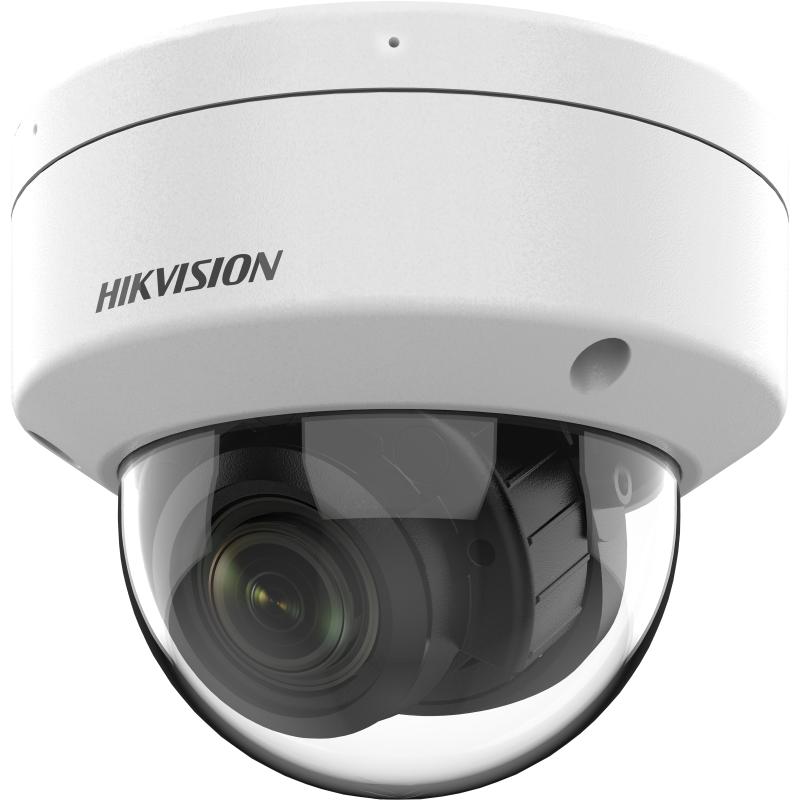

6-мегапиксельная сетевая камера с фиксированным фокусным расстоянием и поддержкой WDR.
6-мегапиксельная сетевая камера с фиксированным фокусным расстоянием и поддержкой WDR.
По запросу
Запрос цены- Camera
- Image Sensor
1/2.9″ Progressive Scan CMOS
- Max. Resolution
2688 × 1520
- Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time
1/3 s to 1/100,000 s
- Day & Night
IR cut filter
- Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Lens Type
Varifocal lens, motorized lens, 2.7 to 13.5 mm
- Focal Length & FOV
2.7 to 13.5 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.7° to 17.6°, diagonal FOV 122.1° to 35.8°
- Lens Mount
Ø14
- Iris Type
Auto-iris
- Aperture
F1.6
- Pixel Density
- DORI
2.7 to 13.5 mm: D: 64 m to 198 m, O: 25.4 m to 78.6 m, R: 12.8 m to 39.6 m, I: 6.4 m to 19.8 m
- Illuminator
- Supplement Light Range
Up to 40 m
- Supplement Light Type
IR
- Smart Supplement Light
Yes
- IR Wavelength
850 nm
- Video
- Main Stream
50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) - Sub-Stream
50 Hz:
25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
30 fps (1280 × 720, 640 × 480, 640 × 360) - Third Stream
50 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings. - Fourth Stream
50 Hz:
10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings. - Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG
*Third stream and fourth stream are supported under certain settings. - Video Bit Rate
32 Kbps to 8 Mbps
- H.264 Type
Baseline Profile/Main Profile/High Profile
- H.265 Type
Main Profile
- Scalable Video Coding (SVC)
H.264 and H.265 encoding
- Bit Rate Control
CBR,VBR
- Region of Interest (ROI)
5 fixed regions for main stream and sub-stream
- Target Cropping
Yes
- Audio
- Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering
Yes
- Network
- Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Simultaneous Live View
Up to 6 channels
- API
ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
- Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user - Client
iVMS-4200, Hik-Connect, Hik-Central
- Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - Web Browser
Plug-in required live view: IE11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Image
- Image Parameters Switch
Yes
- Day/Night Switch
Day, Night, Auto, Schedule
- Image Settings
Rotate mode
- Wide Dynamic Range (WDR)
120 dB
- SNR
≥ 52 dB
- Image Enhancement
BLC, HLC, 3D DNR
- Privacy Mask
8 programmable polygon privacy masks
- Interface
- Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
- Audio
Built-in Microphone: Arrayed dual-microphone
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium - On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset Key
Yes
- Event
- Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Smart Event
Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis - Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
- Deep Learning Function
- Face Capture
Yes
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC ± 25%, 0.88A, max.10.56 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 12.5 W - Material
Metal
- Dimension
Ø121.5 mm × 97.6 mm (Ø4.78″ × 3.84″)
- Package Dimension
150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)
-
Approx. 600 g (1.32 lb.)
- With Package Weight
Approx. 840 g (1.85 lb.)
- Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7 - Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1 - Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 - Protection
IP67: IEC 60529-2013,IK10: IEC 62262:2002
