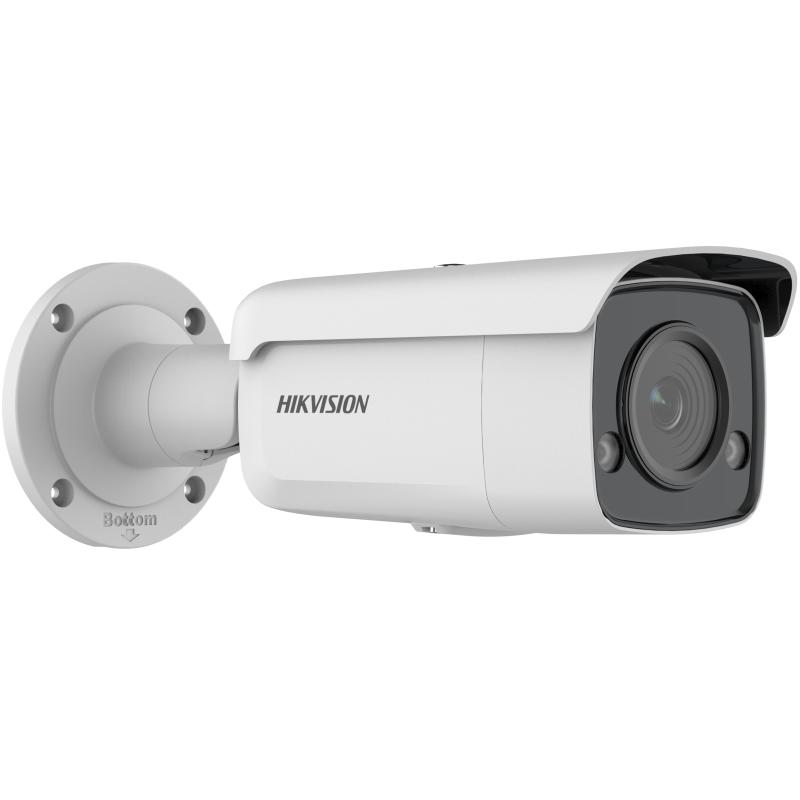

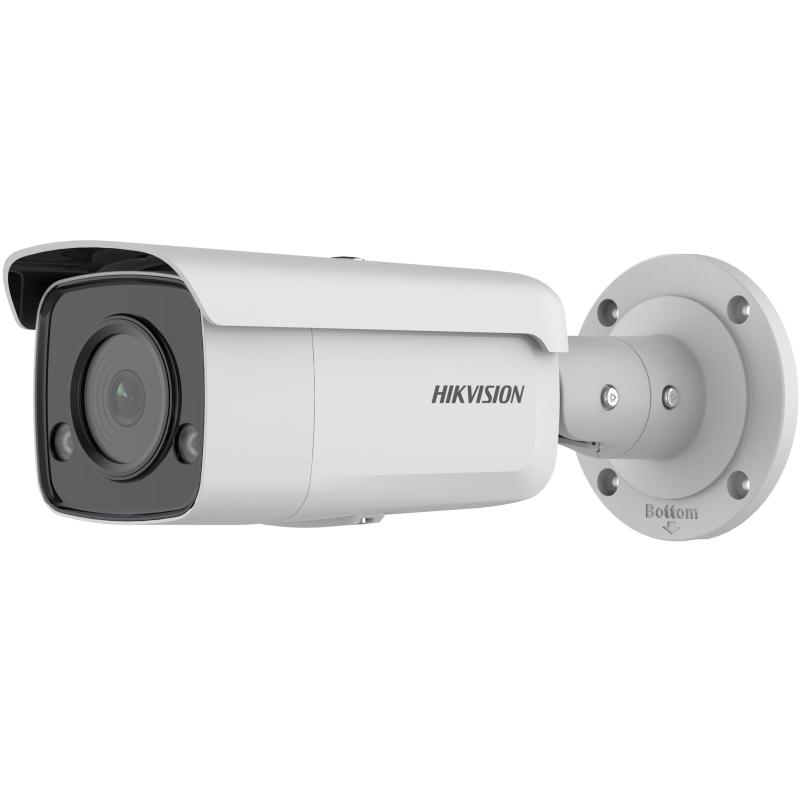

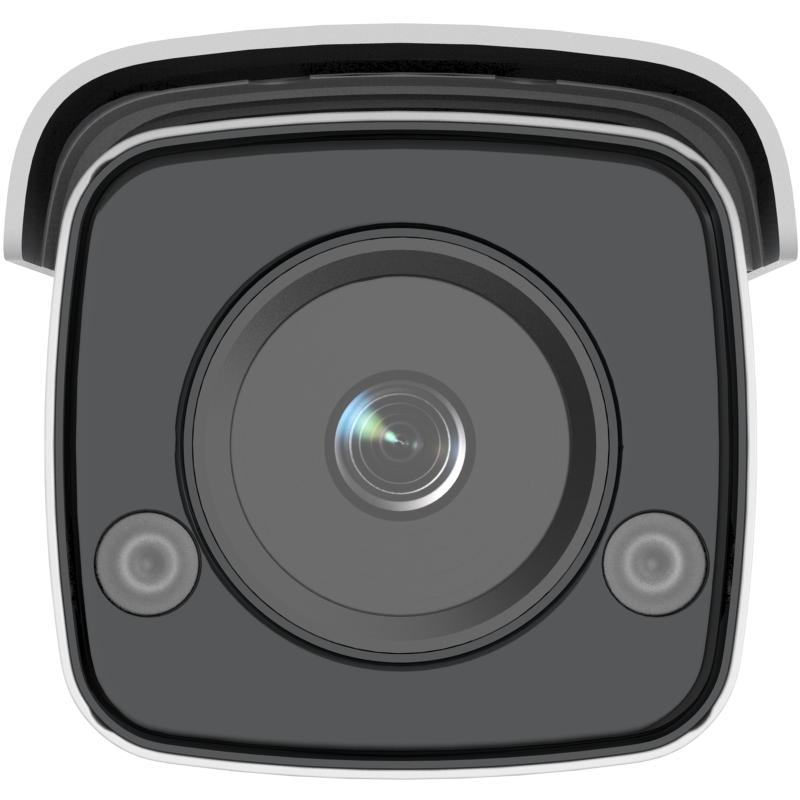

Hikvision DS-2CD2T47G2-L

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

1/3 s to 1/100,000 s

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens Type

Fixed focal lens, 2.8, 4, and 6 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°;4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°;6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°

Lens Mount

M16

Iris Type

Fixed

Aperture

F1.0

Depth of Field

2.8 mm, 2.5 m to ∞;4 mm, 3.5 m to ∞;6 mm, 7.5 m to ∞

DORI

2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m;4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m;6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Supplement Light Type

White Light

Supplement Light Range

60 m

Smart Supplement Light

Yes

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.265+/H.264+;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264;*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR);Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Auto, Schedule

Wide Dynamic Range (WDR)

130 dB

SNR

≥ 52 dB

Image Enhancement

BLC, HLC, 3D DNR

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Reset Key

Yes

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection;Scene change detection

Linkage

Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

Face Capture

Yes

Power

12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug;PoE: 802.3af, 36 V to 57 V, 0.30 A to 0.18 A, max. 10.5 W

Dimension

Ø105 mm × 289.5 mm (Ø4.1″ × 11.4″)

Package Dimension

385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)

Weight

Approx. 1170 g (2.4 lb.)

With Package Weight

Approx. 1689 g (3.5 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

EMC

FCC SDoC (47 CFR Part 15, Subpart B); ;CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); ;RCM (AS/NZS CISPR 32: 2015); ;IC VoC (ICES-003: Issue 6, 2016);;KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); ;CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); ;CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); ;BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); ;LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)
