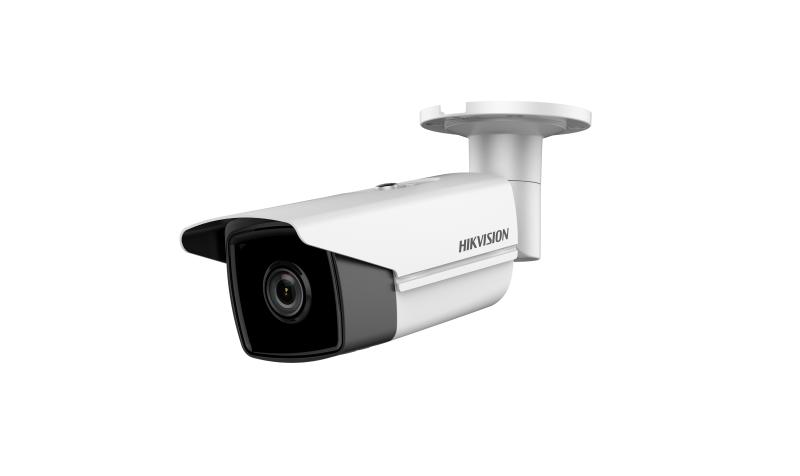

Hikvision DS-2CD2T45FWD-I5/I8

Image Sensor

1/2.5″ Progressive Scan CMOS

Min. Illumination

Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120dB

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Focus

Fixed

Lens Type

2.8, 4, 6, 8, 12 mm

FOV

2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°,4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°,6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°,8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°,12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°

Aperture

F1.6

Lens Mount

M12

Aperture Type

Fixed

IR Range

I5: Up to 50 m,I8: Up to 80 m

Wavelength

850nm

Max. Resolution

2688 × 1520

Main Stream

50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720);60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

Video Compression

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Scalable Video Coding (SVC)

H.264 and H.265 encoding support

Region of Interest (ROI)

Support 1 fixed region for main stream and sub-stream

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Network Storage

Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Day/Night Switch

Day/Night/Auto/Schedule

Target Cropping

No

DNR

3D DNR

Image Enhancement

BLC/3D DNR/HLC

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

On-board Storage

Built-in microSD/SDHC/SDXC slot, up to 128 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Smart Event

Line crossing detection, intrusion detection, object removal detection, unattended baggage detection

Face Detection

Yes

Exception Detection

Scene change detection

Firmware Version

V5.5.80

General Function

One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Startup and Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial plug power,PoE(802.3af, class 3)

Power Consumption andCurrent

I5:,12 VDC, 0.7 A, max. 7.5 W,PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 9.5 W,I8:,12 VDC, 1 A, max: 11.5 W,PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W

Camera Dimension

Camera: Φ104.8 mm × 299.7 mm (Φ4.1″ × 11.8″),Package: 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)

Camera Weight

Camera: 1200 g (2.7 lb.)

Protection

IP67
