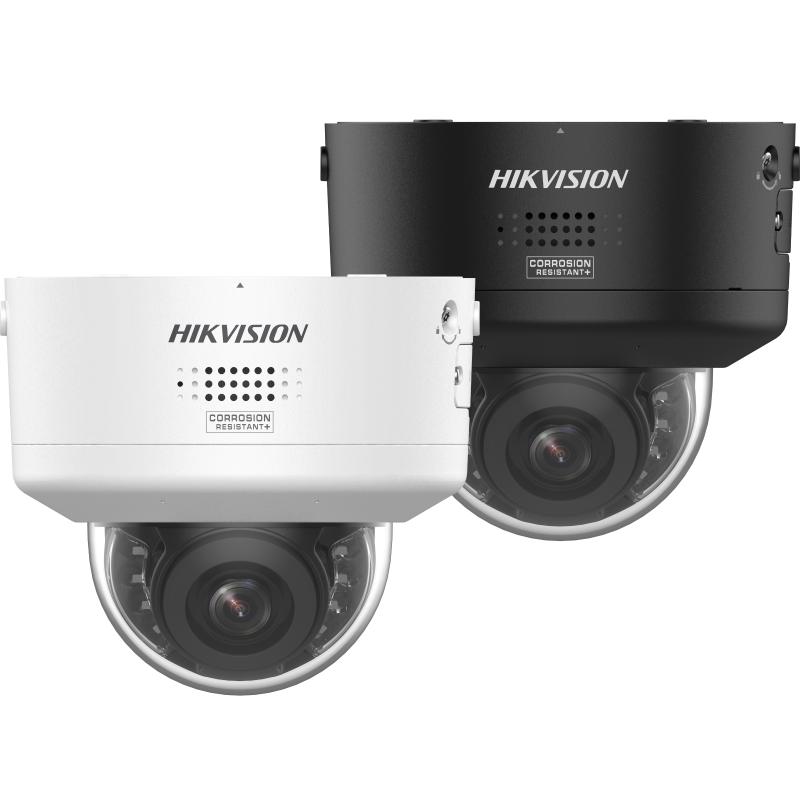

Hikvision DS-2CD27166G3-IPTRZS2UY/S(L)(RB)

1/1.8″ Progressive Scan CMOS

4608 × 3456

Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR

1/3 s to 1/100,000 s

IR cut filter

Remote adjustment (Max. 1,000 cycles)
Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Varifocal lens, motorized lens, 2.8 to 12 mm

horizontal FOV 99° to 43°, vertical FOV 72° to 33°, diagonal FOV 136° to 54°

Integrated

Fixed

Max. F1.2

1 m to ∞

Wide: D: 113.0 m, O: 44.9 m, R: 22.6 m, I: 11.3 m
Tele: D: 240.8 m, O: 95.5 m, R: 48.2 m, I: 24.1 m

IR

Up to 40 m

Yes

850 nm

50 Hz:
12.5 fps (4608 × 3456)
20 fps (4608 × 2592)
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:
15 fps (4608 × 3456)
20 fps (4608 × 2592)
30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz:
25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
30 fps (1280 × 720, 640 × 480, 640 × 360)

50 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.

Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

32 Kbps to 24 Mbps

Baseline Profile,Main Profile,High Profile

Main Profile

CBR,VBR

H.264 and H.265 encoding

1 fixed region for main stream and sub-stream

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

8 kHz/16 kHz/32 kHz/48 kHz

Yes

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Up to 6 channels

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

Up to 32 users
3 user levels: administrator, operator, and user

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

iVMS-4200,Hik-Connect,Hik-Central

Plug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Yes

Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day,Night,Auto,Schedule

BLC,HLC,3D DNR

≥ 52 dB

130 dB

4 programmable polygon privacy masks

1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.

Built-in Microphone: Arrayed dual-microphone,
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Yes

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

scene change detection

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing

Yes

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

12 VDC ± 25%, 1.1 A, max. 13.2 W,
PoE: IEEE 802.3at, Class 4, max. 15 W

Metal

Ø155 mm × 140.4 mm (Ø6.10″ × 5.53″)

203 mm × 203 mm × 230 mm (8.0″ × 8.0″ × 9.1″)

Approx. 840 g (1.9 lb.)

Approx. 1450 g (3.2 lb.)

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Heartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

/SRB model: Red and Blue Light
/SL model: White Light

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017

CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

IK10: IEC 62262:2002,IP66: IEC 60529-2013

NEMA 4X (NEMA 250-2018)
