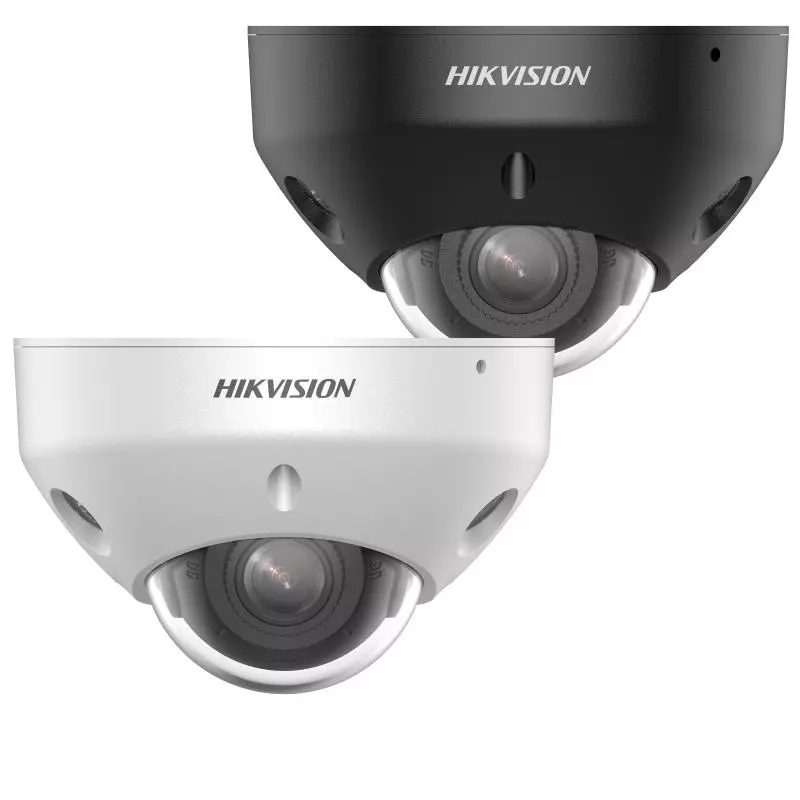

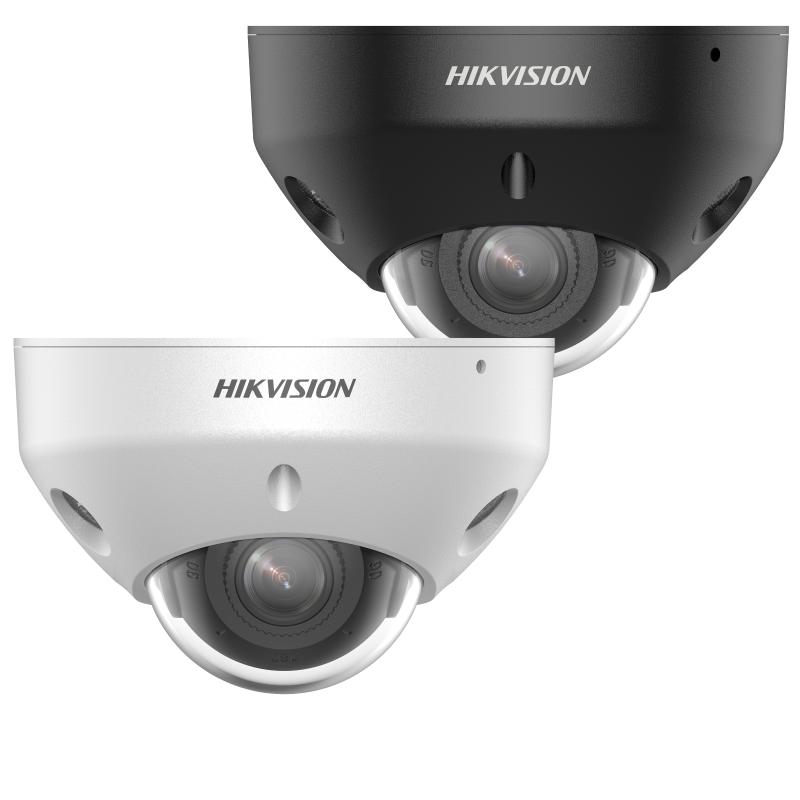

Hikvision DS-2CD2583G3-LIS2UY

1/2.7″ Progressive Scan CMOS

3840 × 2160

Color: 0.003 Lux @ (F1.6, AGC ON),0 Lux with light

1/3 s to 1/100,000 s

IR cut filter

Pan: -30° to 30°,tilt: 0° to 75°,rotate: 0° to 360°

Fixed focal lens, 2.8 and 4 mm optional

2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°
4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°

M12

Fixed

F1.6

2.8 mm: 1.7 m to ∞
4 mm: 2.6 m to ∞

2.8 mm, O: 102.3 m, O: 51.2 m, D: 25.6 m, P: 16.4m , C: 8.2m, V: 4.1m, S: 1.4m
4 mm, O: 129.3 m, O: 64.7 m, D: 32.3 m, P: 20.7 m , C: 10.3m, V: 5.2m, S: 1.7m
6 mm, O: 213.3 m, O: 106.7 m, D: 53.3 m, P: 34.1m , C: 17.1 m, V: 8.5 m, S: 2.8 m

IR,White Light

Up to 30 m

Yes

850 nm

50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.

Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

32 Kbps to 16 Mbps

Baseline Profile,Main Profile,High Profile

Main Profile

H.264 and H.265 encoding

CBR,VBR

1 fixed region for main stream and sub-stream

Yes

-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

-2U: 8 kHz/16 kHz/32 kHz/48 kHz

-2U: Yes

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

Up to 6 channels

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

Up to 32 users
3 user levels: administrator, operator, and user

iVMS-4200,Hik-Connect,Hik-Central

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Plug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Yes

Day,Night,Auto,Schedule

Rotate mode

130 dB

≥ 52 dB

BLC,HLC,3D DNR

8 programmable polygon privacy masks

1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone: Arrayed dual-microphone
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

-S: 1 input, 1 output (max. 12 VDC, 30 mA)

Yes

Motion detection (support alarm triggering by specified target types (human and vehicle and animal)),video tampering alarm,exception

Face detection

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,-S: trigger alarm output

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle and animal)

12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9 W

Base: aluminum, cover: plastic

Ø113.6 mm × 74.6 mm (Ø4.47″ × 2.94″)

150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)

Approx. 500 g (1.10 lb.)

Approx. 660 g (1.46 lb.)

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015

CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1

CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

IP67: IEC 60529-2013,IK08: IEC 62262:2002
