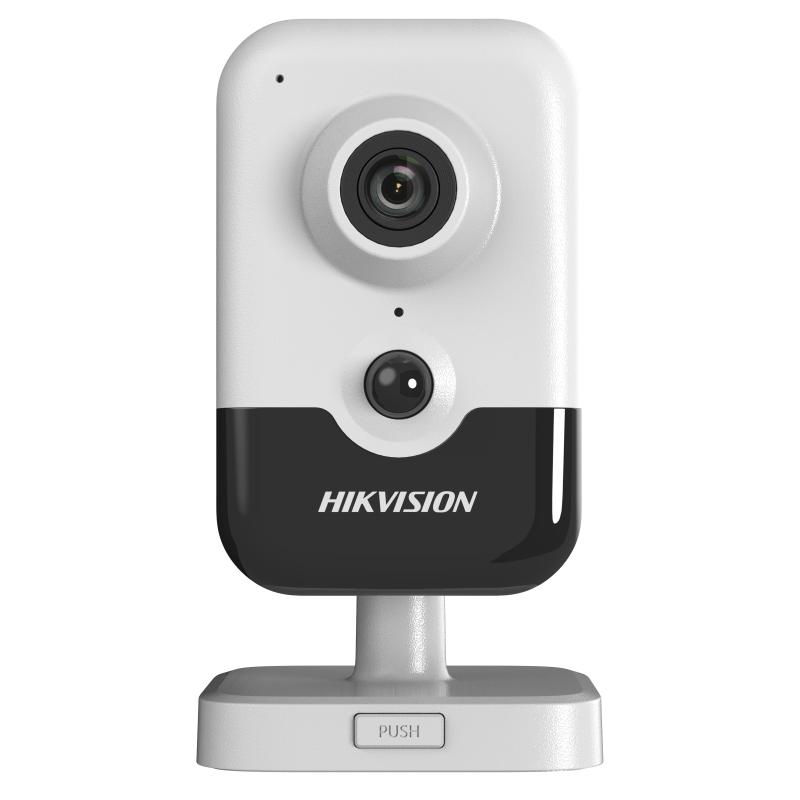

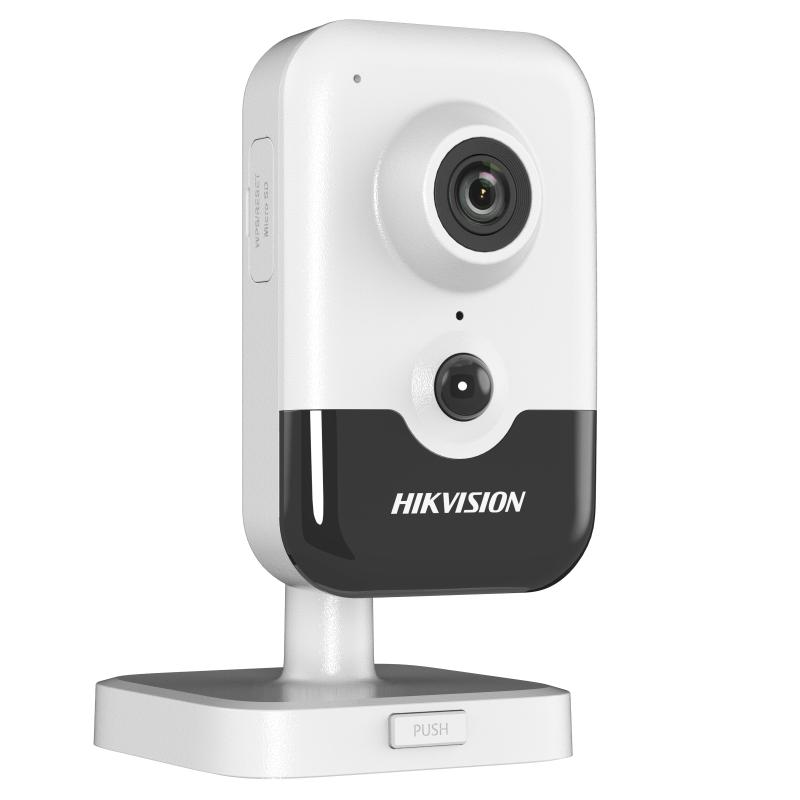

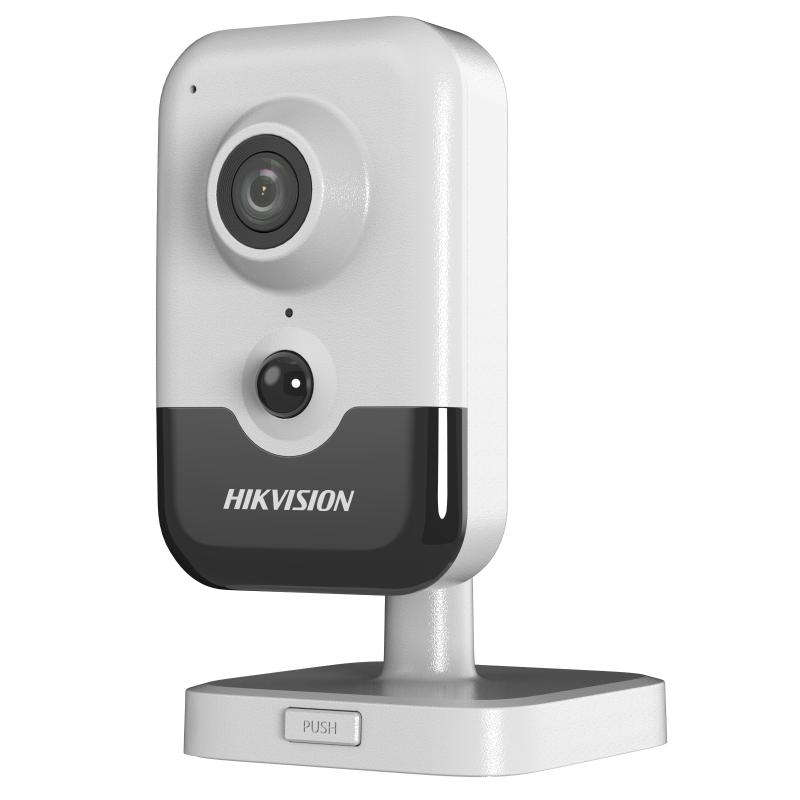

Hikvision DS-2CD2483G2-I

Image Sensor

1/2.8″ Progressive Scan CMOS

Min. Illumination

Color: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Focal Length & FOV

2.8 mm, horizontal FOV 107.8°, vertical FOV 57.9°, diagonal FOV 126.7°;4 mm, horizontal FOV 82.8°, vertical FOV 45.1°, diagonal FOV 98°

Aperture

F2.0

Lens Mount

M12

DORI

2.8 mm: D: 85.5 m, O: 33.9 m, R: 17.1 m, I: 8.6 m;4 mm: D: 110.3 m, O: 43.8 m, R: 22.1 m, I: 11.0 m

IR Range

Up to 10 m

Wavelength

850 nm

Smart Supplement Light

Yes

Max. Resolution

3840 × 2160;

Main Stream

50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800);25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 15 fps (3840 × 2160, 3200 × 1800); 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) ;60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.265+;Sub-stream: H.265/MJPEG;Third stream: H.265

Video Bit Rate

32 Kbps to 16 Mbps

H.265 Type

Main Profile

H.265+

Main stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

Yes;

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11;Plug-in free live view : Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

PIR Angle

Horizontal: 90°, vertical: 80°

PIR Range

Up to 8 m

Built-in Microphone

Yes

Built-in Speaker

Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.

On-board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Face Detection

Yes

Perimeter Protection

Line crossing detection, intrusion detection;Supports human and vehicle targets classification

Linkage Method

Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Web Client Language

33 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, password reset via email, pixel counter

Storage Conditions

-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%;PoE: 802.3af, Class 3

Power Consumption and Current

12 VDC, 0.5 A, max. 5.9 W;PoE (802.3af, 36 V to 57 V), 0.13 A to 0.2 A, max. 6.9 W

Power Interface

Ø5.5 mm coaxial power plug

Camera Material

Plastic

Camera Dimension

102.9 mm × 65.2 mm × 32.6 mm (4.1″ × 2.6″ × 1.3″)

Package Dimension

150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″)

Camera Weight

Approx. 120 g (0.3 lb.)

With Package Weight

Approx. 340 g (0.7 lb.)

EMC

FCC SDoC (47 CFR Part 15, Subpart B); ;CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); ;KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); ;CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); ;CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)

Environment

CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
