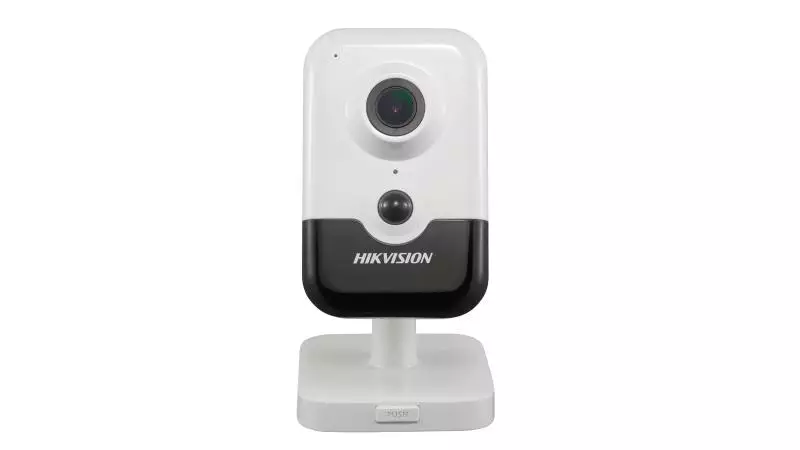

Hikvision DS-2CD2443G0-I(W)

1/3″ Progressive Scan CMOS

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR

1/3 s to 1/100,000 s

Yes

120dB

IR Cut Filter

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

2.8/4 mm

2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°,4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°

F1.6

M12

10 m

850nm

2688 × 1520

50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

32 Kbps to 16 Mbps

Main Profile/High Profile

Main Profile

Main stream supports

Main stream supports

Support H.264 and H.265 encoding

Yes

8kHz/16kHz/32kHz/44.1kHZ/48kHz

G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Up to 6 channels

ONVIF (PROFILE S, PROFILE G), ISAPI

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets

Up to 32 users,3 levels: Administrator, Operator and User

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+

Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login

WPA, WPA2

IEEE 802.11b/g/n

2.412 GHz to 2.4835 GHz

20M/40M

11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps

50 m

Day/Night/Auto/Schedule

3D DNR

BLC/3D DNR/HLC

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Horizontal: 90°, Vertical: 80°

10 m

1 built-in mic, 1 built-in speaker, mono sound

Built-in Micro SD/SDHC/SDXC slot, up to 128G

Yes

1 RJ45 10M/100M self-adaptive Ethernet port

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Line crossing detection, intrusion detection, face detection

Yes

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email

5.6.3

One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)

12 VDC ± 25%, PoE (802.3af, class 3)

12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W

102.8 mm × 65.2 mm × 32.6 mm (4.1″ × 2.6″ × 1.3″)

Camera: Approx. 128 g (0.3 lb.)
