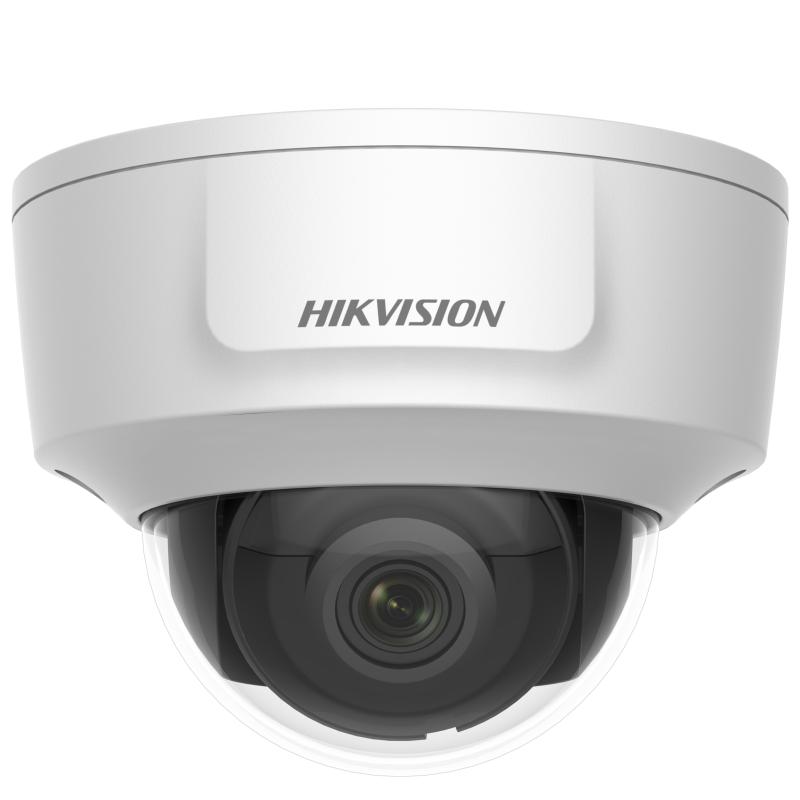

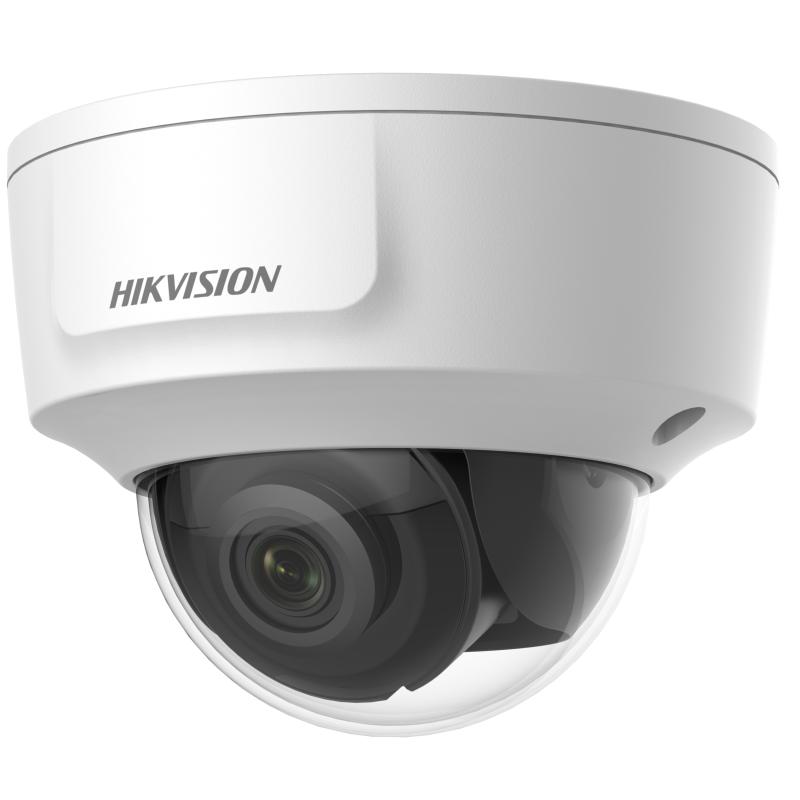

Hikvision DS-2CD2186G2-IMS

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Focal Length & FOV

2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 133°

Lens Type

Fixed focal lens, 2.8 mm

Aperture

F1.6

Iris Type

Fixed

Lens Mount

M12

DORI

2.8 mm, D: 97 m, O: 38 m, R: 19 m, I: 9 m;4 mm, D: 111 m, O: 44 m, R: 22 m, I: 11 m

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 24 fps (3840 × 2160), ; 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) ;60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) ;60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) ;*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264,;*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio Type

Mono sound

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Simultaneous Live View

Up to 6 channels

API

ISAPI,SDK,ISUP,ONVIF (Profile S, Profile G, Profile T)

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 11,;Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,;Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Image Parameters Switch

Yes

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

120 dB

Privacy Mask

4 programmable polygon privacy masks

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,;1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 12 VDC, 30 mA)

Video Output

1 type D HDMI interface (female plug) (720p@50 fps/60 fps, 1080p@25 fps/30 fps/50 fps/60 fps, HDMI version 1.4)

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Smart Event

scene change detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning

Face Capture

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle)

Power

12 VDC ± 25%, 0.7 A, max. 8.4 W,reverse polarity protection,Ø5.5 mm coaxial power plug,or two-core terminal block,;PoE: IEEE 802.3af, Class 3, max. 10 W

Material

Metal

Dimension

Ø119 mm × 90 mm (Ø4.7″ × 3.5″)

Package Dimension

150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)

Weight

Approx. 440 g (0.97 lb.)

With Package Weight

Approx. 720 g (1.59 lb.)

Storage Conditions

-10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7,;KC: KN32: 2015, KN35: 2015

Safety

;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017,;LOA: IEC/EN 60950-1

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IK10: IEC 62262:2002
