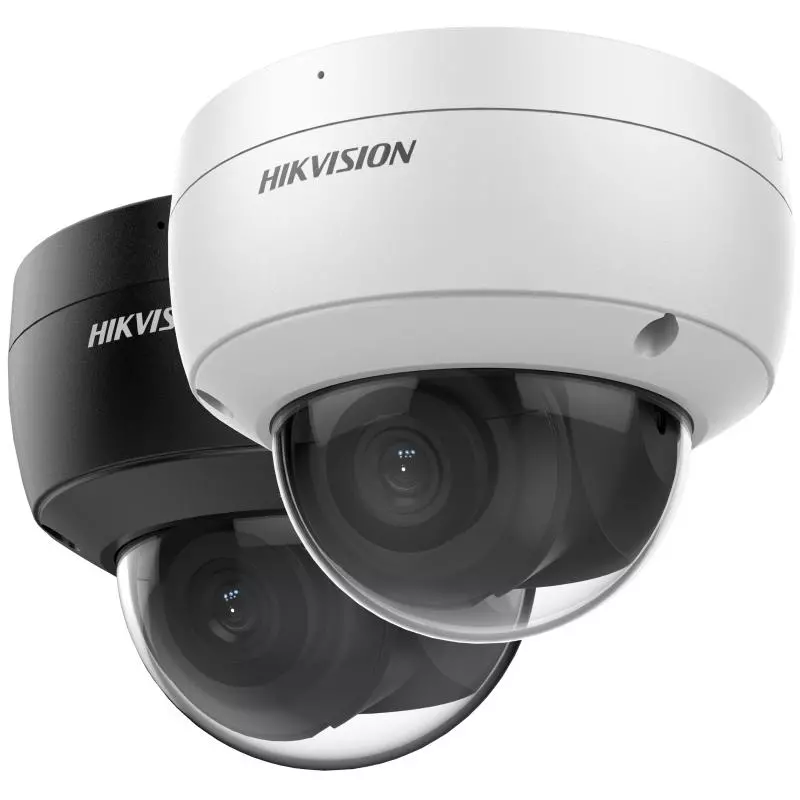

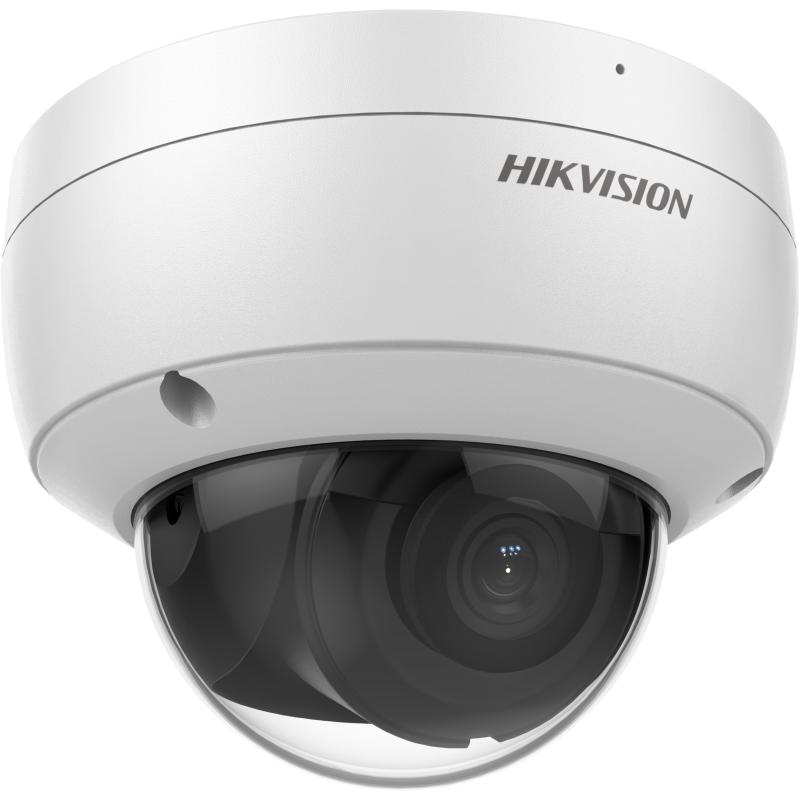

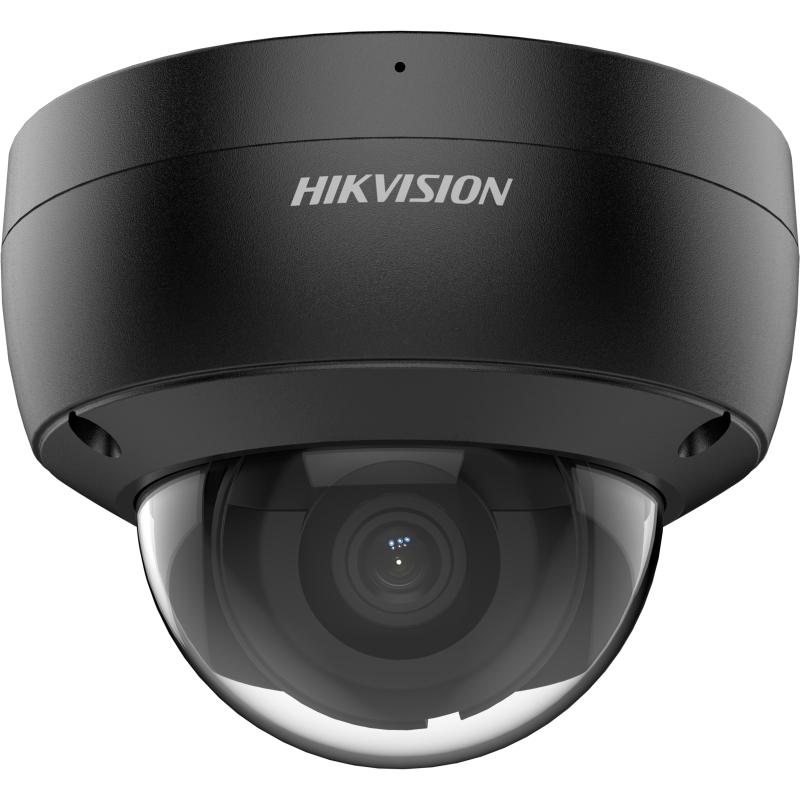

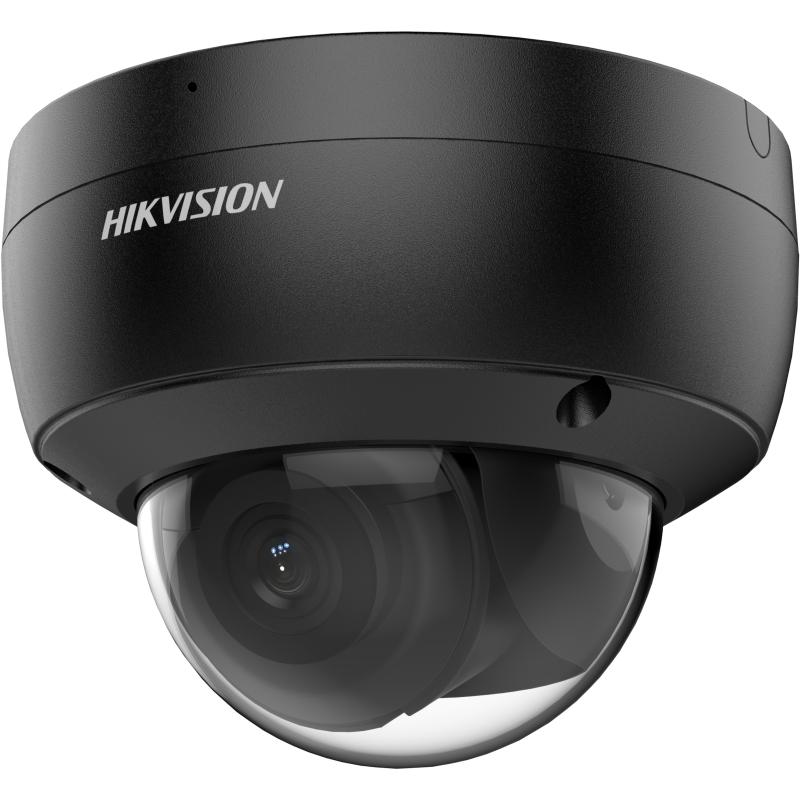

Hikvision DS-2CD2143G2-IU

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Focal Length & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°;4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

DORI

2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m;4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) ;60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11;Plug-in free live view : Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch

Yes

Image Settings

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image Enhancement

BLC, HLC, 3D DNR

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-Board Storage

Built-in microSD, up to 512 GB

Built-in Microphone

Yes

Reset Key

Yes

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

Perimeter Protection

Line crossing, intrusion;Support alarm triggering by specified target types (human and vehicle)

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection;PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Dimension

Ø121.4 × 92.2 mm (Ø4.8″ × 3.7″)

Package Dimension

150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)

Weight

Approx. 570 g (1.3 lb.)

With Package Weight

Approx. 806 g (1.8 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, password reset via e-mail, pixel counter

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
