Hikvision iDS-2CD7T46G2/VX3-I(H)S(Y)

Артикул: 19d758392a6f

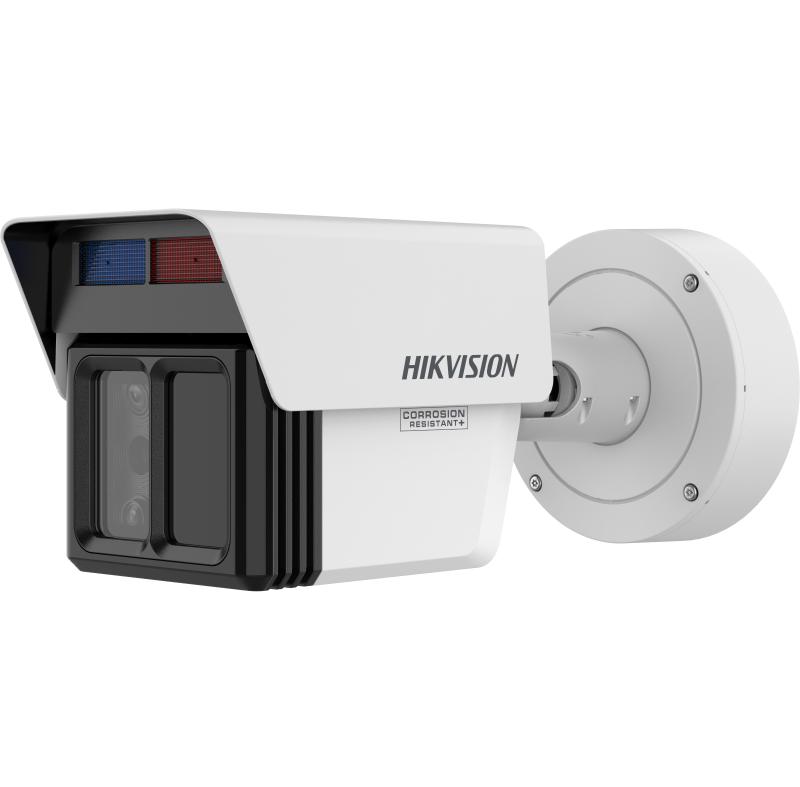

4-мегапиксельная цилиндрическая камера DeepinViewX с тремя фиксированными объективами для защиты периметра

Высококачественное изображение с разрешением 4 МП и 2 × 2 МП
Отличная работа в условиях низкой освещенности благодаря технологии DarkFighter 2.0 Sharpmotion
Эффективная технология сжатия H.265+ для экономии полосы пропускания и места для хранения
Водо- и пылезащита (IP67), защита от вандализма (IK10) и коррозии (NEMA 4X, опционально)
Специализированная крупномасштабная модель искусственного интеллекта Guanlan для защиты периметра, снижающая количество ложных срабатываний на 90% по сравнению с обычными камерами с ИИ. Обнаружение людей и транспортных средств на расстоянии до 120 м

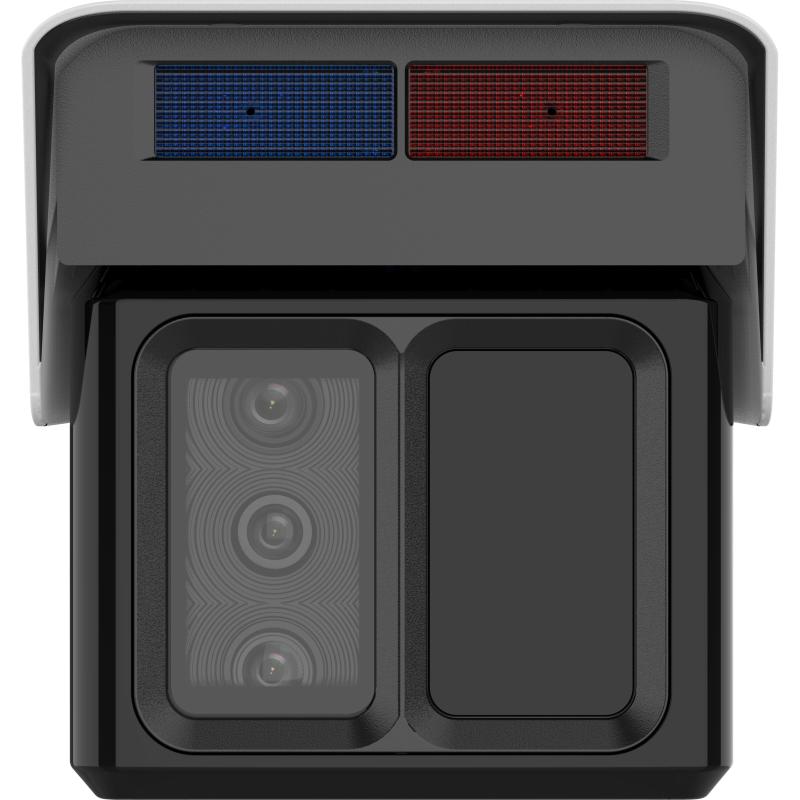

Красно-синий светодиодный индикатор тревоги и звуковое оповещение
Моторизованная регулировка наклона от -10° до 10° для упрощения установки
TPM 2.0 для кибербезопасности

Тех. паспорт

Быстрая доставка

По Баку — сегодня
По Азербайджану 1-2 дня

Официальная гарантия

до 36 месяцев
от производителя

100% оригинал

Официальный дистрибьютор Hikvision

Тех. поддержка

Помощь в подборе и настройке оборудование

в наличии

доставка за 2 часа

По запросу

Купить в рассрочку

Цена для партнеров

Запросить скидку

Помощь специалиста

Сравнить

Затрудняетесь в выборе оборудования?

Camera
Image Sensor1/2.7″ Progressive Scan CMOS
Max. Resolution
Channel 1: 2688 × 1520

Channel 2: 1920 × 1080

Channel 3: 1920 × 1080
Min. Illumination
Channel 1: Color: 0.005 Lux @ (F1.2, AGC ON),B/W:0.002 Lux @ (F1.2, AGC ON),0 Lux with IR;

Channel 2: Color: 0.005 Lux @ (F1.2, AGC ON),B/W:0.0002 Lux @ (F1.2, AGC ON),0 Lux with IR;

Channel 3: Color: 0.005 Lux @ (F1.2, AGC ON),B/W:0.0002 Lux @ (F1.2, AGC ON),0 Lux with IR
Shutter Time1 s to 1/100,000 s

Lens
Aperture
4 mm, F1.6

12 mm, F1.6

25 mm, F2.8
Focal Length & FOV
4 mm, horizontal FOV 82.5°, vertical FOV 45.3°, diagonal FOV 96.1°

12 mm, horizontal FOV 25.4°, vertical FOV 14.4°, diagonal FOV 29.1°

25 mm, horizontal FOV 13.0°, vertical FOV 7.4°, diagonal FOV 14.9°
Iris TypeFixed

DORI
DORI
4 mm, D: 77.6 m, O: 30.8 m, R: 15.5 m, I: 7.8 m

12 mm, D: 171 m, O: 67.9 m, R: 34.2 m, I: 17.1 m

25 mm, D: 331 m, O: 131.4 m, R: 66.2 m, I: 33.1 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 120 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream
Channel 1:

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Channel 2:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Channel 3:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
Channel 1 & Channel 2 & Channel 3:

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream
Channel 1:

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Channel 2:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)

Channel 3:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream
Bit Rate ControlCBR,VBR

Audio
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Audio TypeMono sound
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image SettingsSaturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
SNR≥ 52 dB
Privacy Mask8 programmable polygon privacy masks
Image StabilizationEIS
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio2 input (line in), 1 output (line out), 3.5 mm connector.
Built-in MicrophoneYes, 2 built-in microphones
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
Built-in SpeakerYes, 1 built-in speaker
RS-485-Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Power Output-Y: 12 VDC, max. 50 mA

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis
Smart Eventscene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection,fast moving detection,parking detection,people gathering detection,loitering detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Dedicated Guanlan large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

VCA range:

The maximum detection distance can reach up to 120 meters

*Result based on standard setup and test environment
MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection

General
Power
12 VDC ± 20%, 2.1 A, max. 25.2 W

PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.56 A to 0.45 A, max. 25.5 W
MaterialFront cover: metal, body: metal, bracket: metal
Dimension128.9 mm × 139.5 mm × 337 mm (5.1″ × 5.5″ × 13.2″)
Package Dimension423 mm × 200 mm × 198 mm (16.65″ × 7.87″ × 7.8″)
With -Y: Approx. 2500 g (5.51 lb.),

Without -Y: Approx. 2510g (5.53 lb.)
With Package Weight
With -Y: Approx. 3470 g (7.65 lb.),

Without -Y: Approx. 3530 g (7.78 lb.)
Storage Conditions-30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
With -H: -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing),

Without -H: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat, mirror, password protection, one-key reset
Heater-Y: Yes
Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7
Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
Safety
CB: IEC 62368-1: 2014+A11,

LOA: IEC/EN 60950-1,

CE-LVD: EN 62368-1: 2014/A11: 2017
Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
OtherPVC FREE
