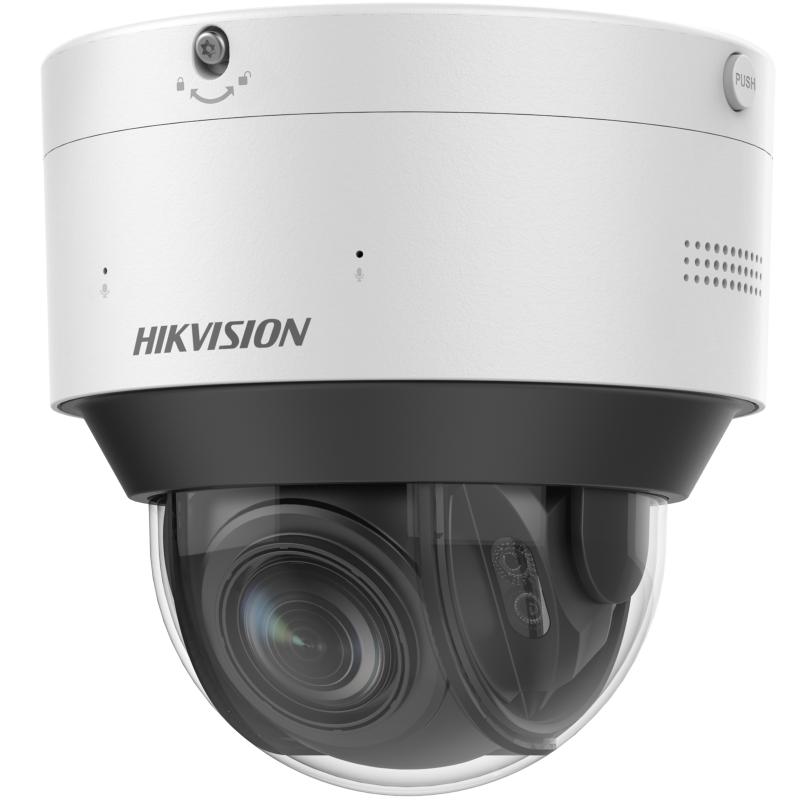

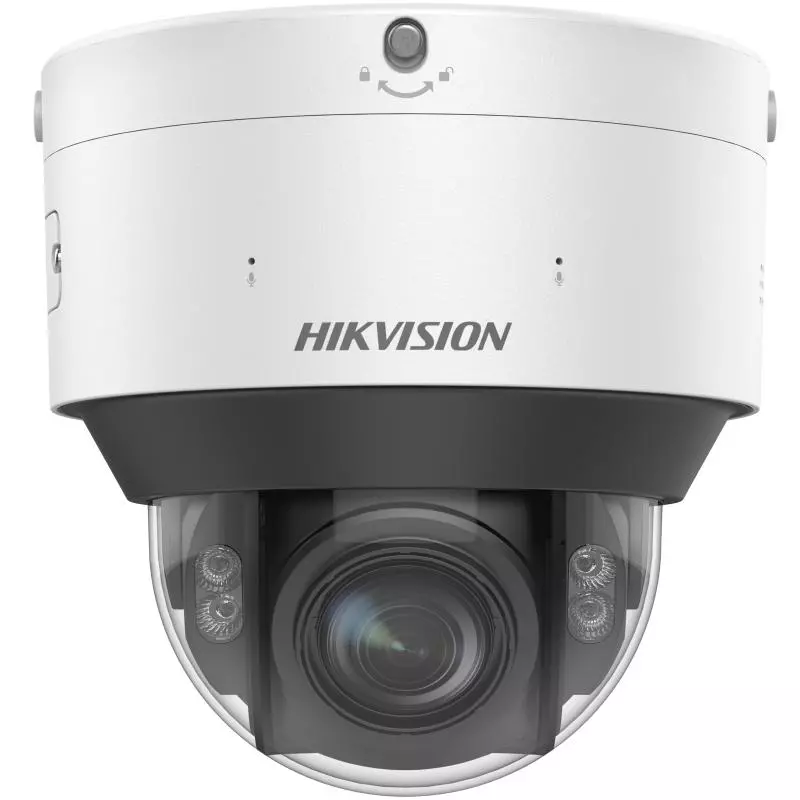

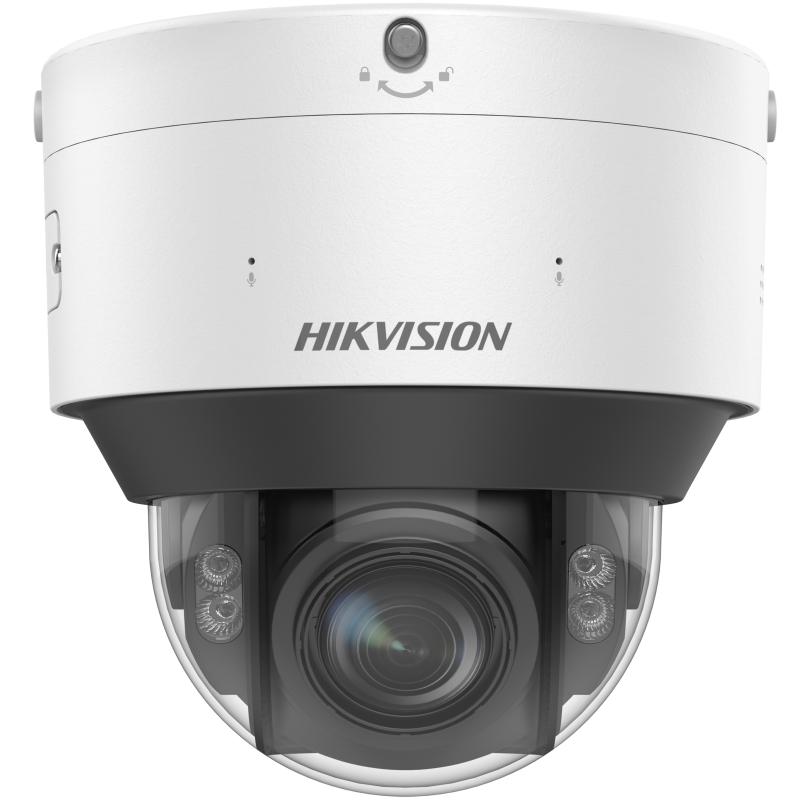

Hikvision iDS-2CD7547G0/P-XZHS(Y)

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter;Blue glass module to reduce ghost phenomenon

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 85°, rotate: 0° to 355°

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1°

Focus

Auto,Semi-auto,Manual

Iris Type

P-iris

Aperture

F1.0 to F1.2

DORI

Wide: D (Detect): 63.4 m, O (Observe): 25.2 m, R (Recognize): 12.7 m, I (Identify): 6.3 m;Tele: D (Detect): 140.7 m, O (Observe): 55.8 m, R (Recognize): 28.1 m, I (Identify): 14.1 m

IR Wavelength

850 nm

Smart Supplement Light

Yes

Supplement Light Range

2.8 to 12 mm: up to 30 m

Supplement Light Type

Hybrid (IR and White Light)

Main Stream

50 Hz:;25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720);50 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz:;30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720);60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Fifth Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264,;Fourth stream: H.265/H.264/MJPEG,;Fifth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for each stream

Target Cropping

Yes

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Type

Mono sound

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets

Simultaneous Live View

Up to 20 channels

API

ONVIF (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger

Wide Dynamic Range (WDR)

140 dB

Privacy Mask

8 programmable polygon privacy masks

SNR

≥ 52 dB

Image Enhancement

BLC,HLC,3D DNR,Distortion Correction,Defog

Image Stabilization

EIS

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Video Output

1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB

Audio

1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,;1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

Built-in Microphone

Yes, 2 built-in microphones

Alarm

1 input, 1 output (max. 24 VDC, 1 A)

Built-in Speaker

Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Power Output

12 VDC, max. 100 mA

Wiegand

1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection

Smart Event

scene change detection,audio exception detection,defocus detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle);Support combined event alarm triggering

Metadata

Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic

Road Traffic and Vehicle Detection

Smart Function:;Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario);Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.;Support vehicle and non-vehicle counting;Blocklist and allowlist: up to 10,000 records;LPR Countries/Regions:;4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions;Accuracy (Under recommended installation and lighting conditions):;License plate recognition rate ≥98%;Capture rate ≥99%;Driving direction accuracy rate ≥98%;Vehicle Capture Speed:;Front installation in checkpoint scenario: up to 120 km/h;Side installation: up to 80 km/h;Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

Parking Management

Support distant view mode and close view mode ;Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm ;Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm

Power

12 VDC ± 20%, 2.01 A, max. 24.01 W, three-core terminal block;;24 VAC ± 20%, 1.51 A, max. 24.01 W, three-core terminal block;;PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.60 A to 0.44 A, max. 25.43 W

Material

Aluminum alloy body

Dimension

Ø160 mm × 159.5 mm (Ø6.3″ × 6.3″)

Package Dimension

251 mm × 215 mm × 189 mm (9.9″ × 8.5″ × 7.4″)

Weight

Approx. 2100 g (4.62 lb.)

With Package Weight

Approx. 2850 g (6.28 lb.)

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Storage Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log

Heater

Yes

Device Management

Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

EMC

FCC: 47 CFR Part 15, Subpart B,;CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7,;KC: KN32: 2015, KN35: 2015

Safety

UL: UL 62368-1,;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017,;BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,;LOA: IEC/EN 60950-1

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Anti-Corrosion Protection

-Y: NEMA 4X (NEMA 250-2018)

Automotive and Railway

EN50121-4

Other

PVC FREE
