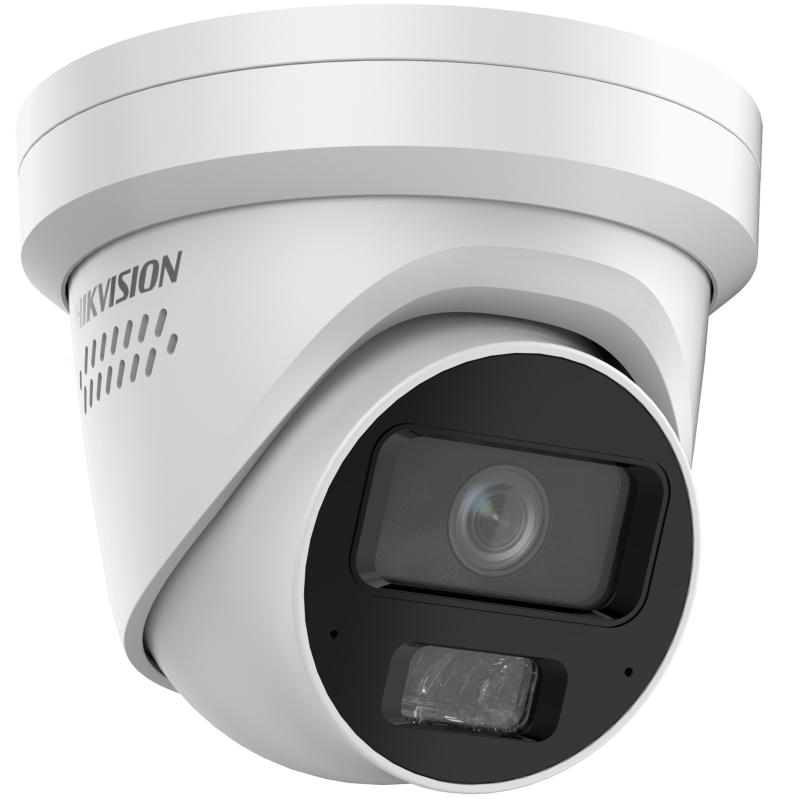

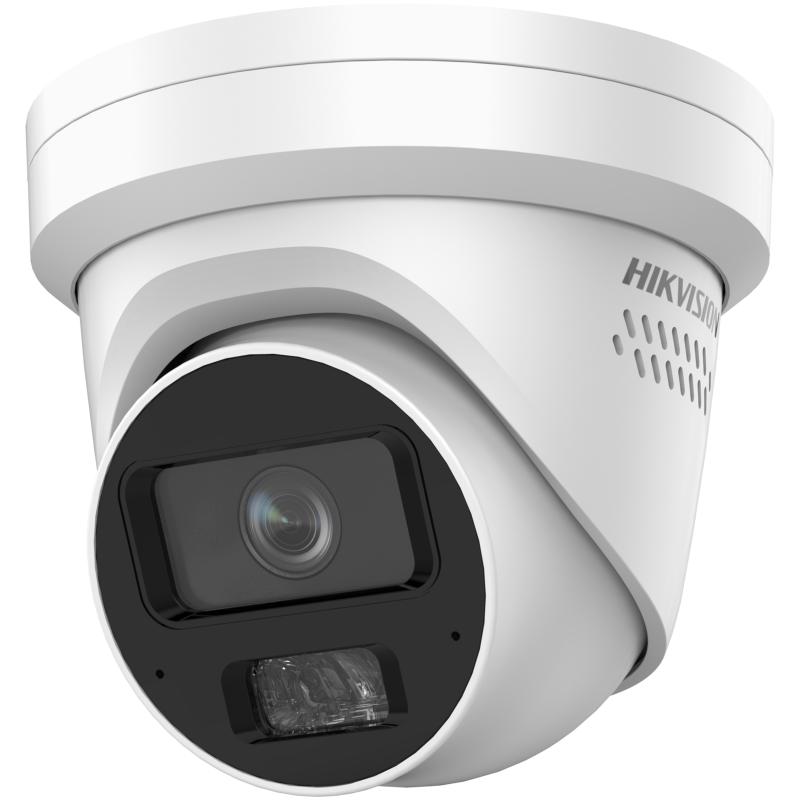

Hikvision iDS-2CD7387G0-XS

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter,;Blue glass module (less ghost phenomenon)

Angle Adjustment

Pan: 0° to 355°,tilt: 0° to 65°,rotate: 0° to 360°

Focal Length & FOV

2.8 mm: horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° ;4 mm: horizontal FOV 93.0°, vertical FOV 48.4°, diagonal FOV 110.4°

Iris Type

Fixed

Aperture

F1.0

DORI

2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m;4 mm: D: 104.6 m, O: 41.5 m, R: 20.9 m, I: 10.5 m

Supplement Light Type

Hybrid (IR and White Light)

Supplement Light Range

Up to 40 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Open Resources

Memory: 40 MB,;Smart RAM: 350 MB,;eMMC: 1 GB

Computing Power

1.5 TOPS

Open Capability

HEOP 2.0 OpendevSDK

Deep Learning Structure

Caffe,TensorFlow,PaddlePaddle,ONNX

Programming Language

C++

Main Stream

50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) ;

Fourth Stream

50 Hz: 25 fps (704 × 576, 640 × 480) ;60 Hz: 30 fps (704 × 480, 640 × 480) ;

Fifth Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480);

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264,;Fourth stream: H.265/H.264/MJPEG,;Fifth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Target Cropping

Yes

Region of Interest (ROI)

4 fixed regions for each stream

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11,;Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch

Yes

Image Settings

Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger

Wide Dynamic Range (WDR)

120 dB

Image Enhancement

BLC,HLC,3D DNR,Defog

Privacy Mask

8 programmable polygon privacy masks

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Image Stabilization

EIS

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB

Alarm

1 input, 1 output (max. 12 VDC, 30 mA)

Audio

1 input (line in), input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Power Output

12 VDC, max. 100 mA

Basic Event

Motion detection,video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection

Smart Event

scene change detection,audio exception detection,defocus detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Face Capture

;Detects up to 60 faces simultaneously,;Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,;Uploads face with background and closed-up face pictures

People Counting

Supports crossline people counting,;Supports counting, displaying and exporting the people flow data of entering and exiting. (The data is stored in the flash.),;The real-time people flow data is displayed on the screen. ,;Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°.,;Uploads face with background and closed-up face picture.,;Supports real-time uploading and uploading by statistic cycle

Queue Management

Supports up to 8 detection regions, and independent arming schedule and linkage method,;Supports 2 detection modes: regional people queuing-up, waiting time detection,;Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue,;Supports raw data export for further analysis,;Supports real-time data uploading and scheduled data uploading,;Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold,;Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

Heat Map

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,;Two report types are available, space heat map and time heat map line chart.

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting,;Support alarm triggering by specified target types (human and vehicle)

Metadata

Intrusion detection,line crossing detection,region entrance detection,region exiting detection

On/Off Duty Detection

Supports up to 8 detection regions, and independent arming schedule and linkage method,;Supports 2 detection modes: absence detection, on/off duty detection,;Supports parameter settings: person on duty, absence duration

Power

;12 VDC ± 20%, 0.66A, max. 7.9 W,;PoE: IEEE 802.3af, Type 1, Class 3, 36 V to 57 V, 0.16 A to 0.26 A, max. 9.69 W

Material

Aluminum alloy body

Dimension

;Ø138.6 mm × 124.4 mm (Ø5.46 × 4.86″)»»

Package Dimension

170 mm × 170 mm × 150 mm (6.7″» × 6.7″» × 6.0″»)

Weight

Approx. 820 g (1.81 lb.)

With Package Weight

Approx. 1095 g (2.42 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

;33 languages: English
