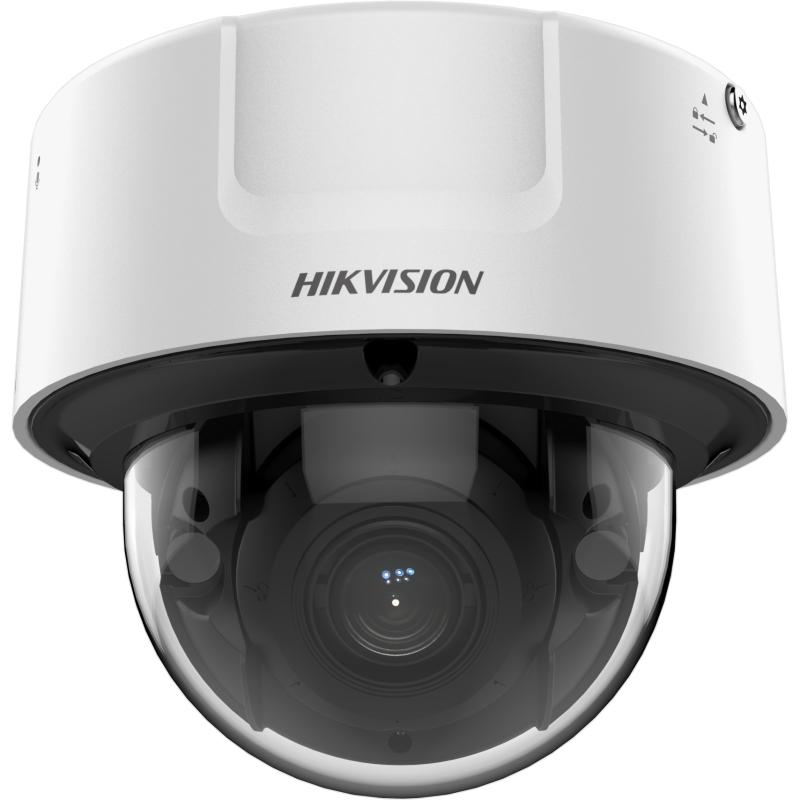

Hikvision iDS-2CD71C5G0-IZS

Image Sensor

1/1.7″ Progressive Scan CMOS

Max. Resolution

4000 × 3000

Min. Illumination

Color: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON)

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Focus

Auto, semi-auto, manual

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 96° to 46.2°, vertical FOV 69.2° to 27.2°, diagonal FOV 131° to 45.2° ;8 to 32 mm, horizontal FOV 37.8° to 13.6°, vertical FOV 27.8° to 10.3°, diagonal FOV 48.6° to 17.4°

Aperture

2.8 to 12 mm: F1.2 to 2.5;8 to 32 mm: F1.7 to F1.73

Lens Mount

Integrated

Supplement Light Range

2.8 to 12 mm: 30 m;8 to 32 mm: 50 m

IR Wavelength

850 nm

Smart Supplement Light

Yes

Main Stream

50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720);50 Hz: 20 fps (4000 × 3000);60 Hz: 20 fps (4000 × 3000)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Custom Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264;Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for each stream

Target Cropping

Yes

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)/8 to 320 Kbps (MP3)

Audio Type

Mono sound

Simultaneous Live View

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Smooth Streaming

Yes

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR);Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+;Local service: Chrome 41.0+, Firefox 30.0+

Wide Dynamic Range (WDR)

Digital WDR

Day/Night Switch

Day, Night, Auto, Schedule, Alarm Trigger

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

SNR

≥52 dB

Alarm

1 input, 1 output (max. 24 VDC, 1 A)

Audio

1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound,1 built-in microphone

RS-485

1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Video Output

1 Vp-p Composite Output(75Ω/CVBS)(Only for Debug)

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Power Output

12 VDC, max. 100 mA (supported by all power supply types)

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture;Trigger recording: memory card, network storage, pre-record and post-record;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email;Trigger notification: HTTP, ISAPI, alarm output, Email

Smart Event

Line crossing detection, up to 4 lines configurable;Intrusion detection, up to 4 regions configurable;Region entrance detection, up to 4 regions configurable;Region exiting detection, up to 4 regions configurable;Unattended baggage detection, up to 4 regions configurable;Object removal detection, up to 4 regions configurable;Scene change detection, audio exception detection, defocus detection

Face Capture

Detects up to 30 faces simultaneously;;Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;;Up to 3 face libraries with up to 30000 faces each are configurable;;Recognizes face identity via face modeling, grading and comparing to those in face library;;Supports face library encryption.

Multi-target-type Detection

Supports simultaneous detection of human body and face;Gets 8 face features and 13 human body features

People Counting

Yes

Queue Management

Detects queuing-up people number, and waiting time of each person;Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue;Supports raw data export for further analysis

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle);Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.

Metadata

Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture and queue management are supported.

Power

12 VDC ± 20%, 0.83 A, max. 9.96 W, two-core terminal block, reverse polarity protection;24 VAC ± 20%, 0.85 A, max. 12 W;PoE: IEEE 802.3af, 36 V to 57 V, 0.35 A to 0.21 A, max. 12 W

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F)

Material

Aluminum alloy body

Dimension

Ø140.5 mm × 122.6 mm (Ø5.5″ × 4.8″)

Package Dimension

244 mm × 174 mm × 173 mm (9.6″ × 6.9″ × 6.8″)

Weight

Approx. 950 g (2.1 lb.)

With Package Weight

Approx. 1300 g (2.9 lb.)

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IK10(IEC 62262:2002)
