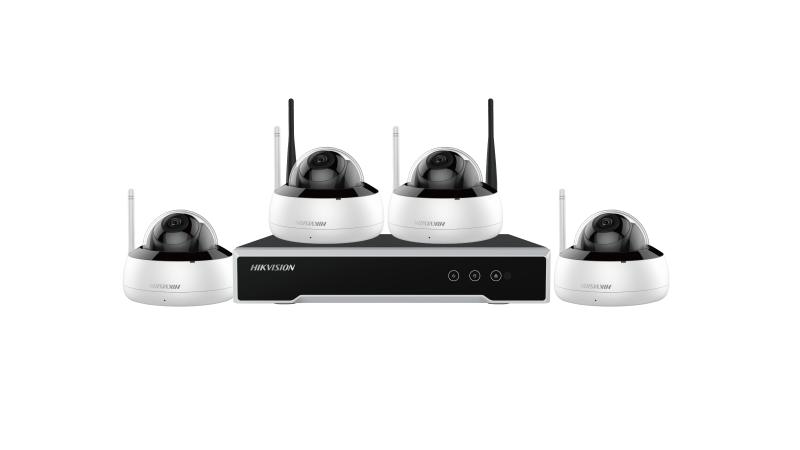

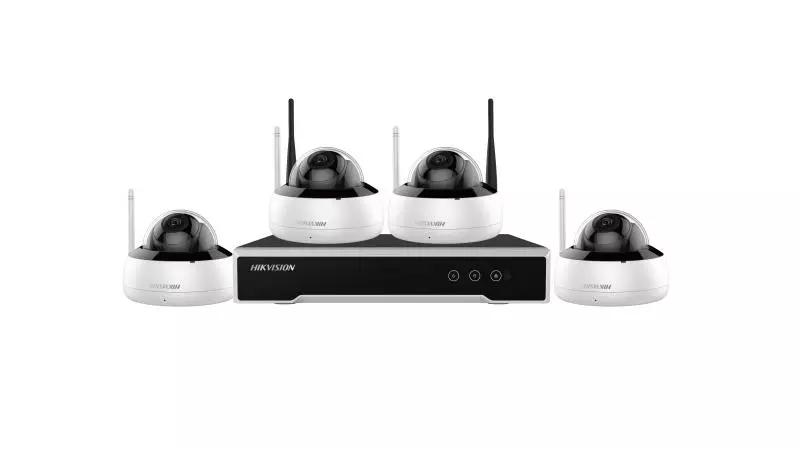

Hikvision NK44W1H(E)

Camera Case Type

Dome

Image Sensor

1/3″ Progressive Scan CMOS

Min. Illumination

0.028 Lux

Shutter Speed

1/3 s to 1/100,000 s

Day &Night

IR cut filter

WDR

DWDR

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°

Protection Level

IP66

Material

Plastic

Wi-Fi Support

Yes

Focal Length

2.8 mm

Aperture

F2.0

Focus

Fixed

FOV

Horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 117°

Lens Mount

M12

IR Range

Up to 30 m

Video Compression

H.265+;H.265;H.264+;H.264;MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Max. Resolution

4MP

Main Stream

50 Hz: 20 fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720);60 Hz: 20 fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240);60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Image Setting

Saturation, brightness, contrast and sharpness are adjustable via client software and web browser

Day/Night Switch

Auto/Scheduled/Day/Night

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

128 GB

Audio I/O

1 Built-in mic

Video Out

No

Alarm I/O

No

Reset Button

Yes

Power Supply

12 VDC ± 25%, 0.5 A, Φ 5.5 mm coaxial plug power

Consumption

≤ 6 W

Working Temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working Humidity

95% or less (non-condensing)

Dimension (W × D × H)

Φ 121.4 mm × 92.2 mm (Φ 4.8″ × 3.6″)

Weight

467g (1 lb)

IP Video Input

4-ch

Incoming/Outgoing Bandwidth

50 Mbps/40 Mbps

HDMI/VGA Output

1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio Output

1-ch, RCA (linear, 1 KΩ)

Video Resolution

4 MP/3 MP/1080p/1.3 MP/720p

Synchronous Playback

4-ch

Capability

2-ch@1080p/1-ch@4 MP

Network Interface

1, RJ45 10/100M Ethernet interface

Network Protocol

IPv6, UPnP™, NTP, SADP, DHCP

Remote Connection

16

Frequency Band

2.4 GHz

Antenna Structure

2 × 2MIMO

Transmission Speed

144 Mbps

Transmission Standard

IEEE 802.11b/g/n

SATA

1

Capacity

Up to 6 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

Alarm In/Out

No

Power Supply

12 VDC

Consumption (without HDD and PoE off)

≤ 12 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

260 mm × 246 mm × 48 mm (10.2″ × 9.7″ × 1.9″)

Weight (without hard disk)

≤ 1 kg (2.2 lb)

Accessories

Power cable: 4 × IPC power cables, 1 × NVR power cable;Ethernet cable: RJ45, Cat5e UTP, 1 m. Connects NVR and Switch;HDMI cable: 1 × HDMI cable, 2 m, black

Hard Drive

No

Certification

FCC, CE

Weight (with package)

≤ 7 kg (15.4 lb)
