Hikvision DS-2XC6686G0/P-IZH(R)S

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter;Blue glass module to reduce ghost phenomenon

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 100.8° to 40.2°, vertical FOV 53.3° to 22.5°, diagnol FOV 122.3° to 46.2°;8 to 32 mm, horizonral FOV 40.7° to 14.6°, vertical FOV 22.3° to 8.3°, diagnol FOV 47.4° to 16.7°

Focus

Auto, semi-auto, manual

Aperture

2.8 to 12 mm: F1.38 to F2.5;8 to 32 mm: F1.7

DORI

Wide:;2.8 to 12 mm: D: 87 m, O: 34.5 m, R: 17.4 m, I: 8.7 m;8 to 32 mm: D: 200 m, O: 79.4 m, R: 40m, I: 20 m;Tele:;2.8 to 12 mm: D: 216 m, O: 85.7 m, R: 43.2 m, I: 21.6 m;8 to 32 mm: D: 580 m, O: 230 m, R: 116 m, I: 58 m

Supplement Light Type

IR

Supplement Light Range

2.8 to 12 mm: 60 m;8 to 32 mm: 100 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720);60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Fifth Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264;Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG;Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.265 and H.264 encoding

Region of Interest (ROI)

5 fixed regions for each stream

Target Cropping

Yes

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR) ;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE10, IE11;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari12+;Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image Enhancement

BLC, HLC, Defog, 3D DNR

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Image Stabilization

EIS

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC, 1 A or max. 110 VAC, 500 mA)

RS-485

Without -R: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive);-R: does not support

Reset Key

Yes

Wiegand

/P: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle));Scene change detection, audio exception detection, defocus detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Road Traffic and Vehicle Detection

Blocklist and allowlist: up to 10,000 records ;Captures vehicle that has no license plate ;Support license plate recognition of motorcycles (only in checkpoint scenario) ;Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

Metadata

Metadata of road traffic is supported.

Power

12 VDC ± 20%, 1.8 A, max. 22 W, three-core terminal block;PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.5 A to 0. 4 A, max. 22 W

Material

316L and anti-corrosion coating

Dimension

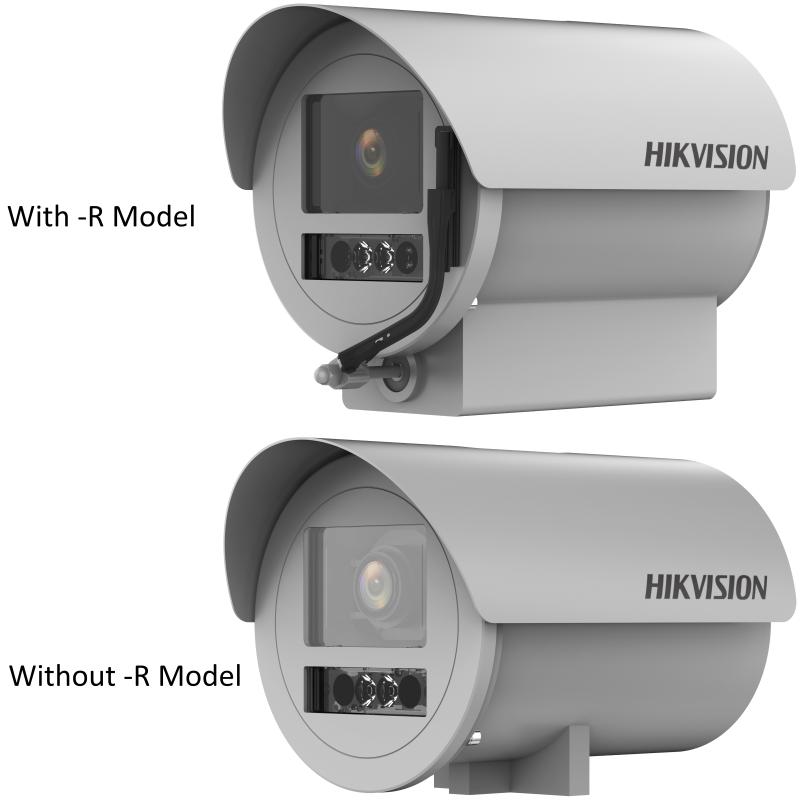

With -R: 240.9 mm × 145 mm × 166.6 mm (9.5″ × 5.7″ × 6.6″)Without -R: 224 mm × 145 mm × 143.5 mm (8.8″ × 5.7″ × 5.6″)

Package Dimension

477 mm × 235 mm × 302 mm (18.7″ × 9.3″ × 11.9″)

Weight

With -R: approx. 4245 g (9.4 lb.);Without -R: approx. 3680 g (8.1 lb.)

With Package Weight

With -R: approx. 5690 g (12.5 lb.);Without -R: approx.4700 g (10.4 lb.)

Storage Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-banding, 5 streams, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Heater

Yes

Wiper

-R: Yes

EMC

FCC: 47 CFR Part 15, Subpart B;CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014;RCM: AS/NZS CISPR 32: 2015;IC: ICES-003: Issue 7;KC: KN 32: 2015, KN 35: 2015

Safety

UL: UL 62368-1;CB: IEC 62368-1:2014+A11;CE-LVD: EN 62368-1:2014/A11:2017 ;BIS: IS 13252(Part 1):2010/ IEC 60950-1 : 2005;LOA: IEC/EN 60950-1

Environment

CE-RoHS: 2011/65/EU;WEEE: 2012/19/EU;Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013;IK10: IEC 62262: 2002 (without -R)

Anti-Corrosion Protection

NEMA 4X: NEMA 250-2018;C5-M: 720H neutral salt spray, 480H water condensation;;Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;;Interior environments: buildings or areas with almost permanent condensation and with high pollution.
