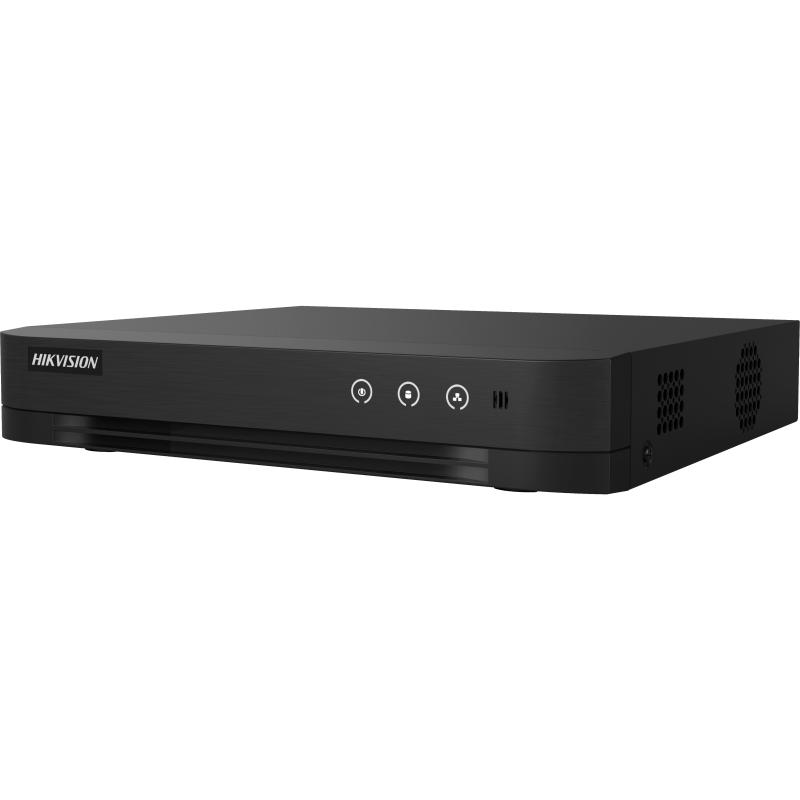

Hikvision DS-7204HGHI-K1

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;;Quick search by object or event type is supported;

IP Video Input

1-ch (up to 5-ch) ;Up to 1080p resolution;Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz;

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz;

CVBS Input

Support

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

Synchronous playback

4-ch

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

Video Output Mode

HDMI/VGA simultaneous output

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Audio Input

1-ch RCA (2.0 Vp-p, 1 KΩ) ;4-ch via coaxial cable

Two-Way Audio

Reuse the first audio input

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF;For 720p stream access: 720p/WD1/4CIF/VGA/CIF;For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate

Main stream: ;For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N);For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N);For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N);Sub-stream: ;4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate

32 Kbps to 4 Mbps

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Total Bandwidth

64 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Remote Connection

32

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

SATA

1 SATA interface

Capacity

Up to 4 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

Alarm In/Out

N/A

Power Supply

12 VDC, 1.5 A

Consumption

≤ 16 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to +31 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

263 × 227 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight

≤ 0.8 kg (without HDD, 1.8 lb.)
